-19%
BorgWarner SuperCore Assembly EFR B2 9274 (Aluminum B. Hsg)-Super Core Assemblies-BorgWarner
Click to zoom in

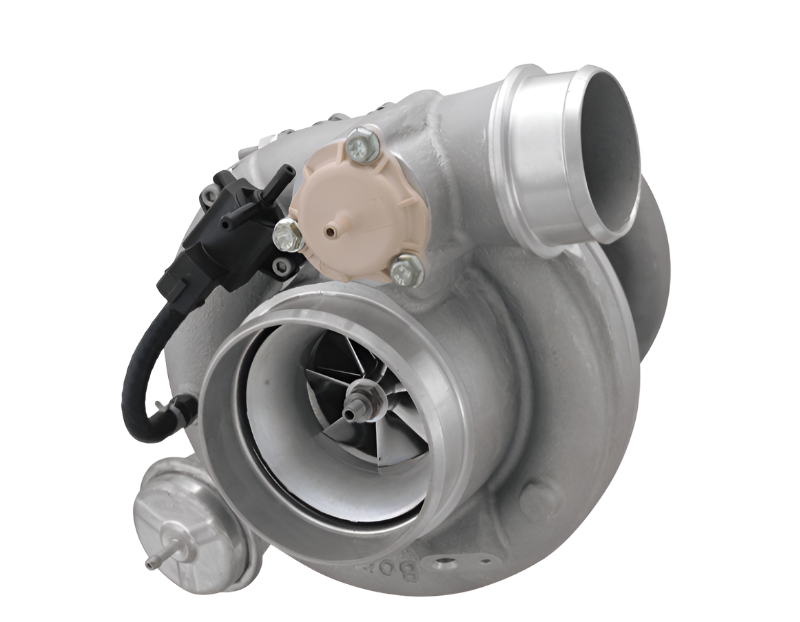

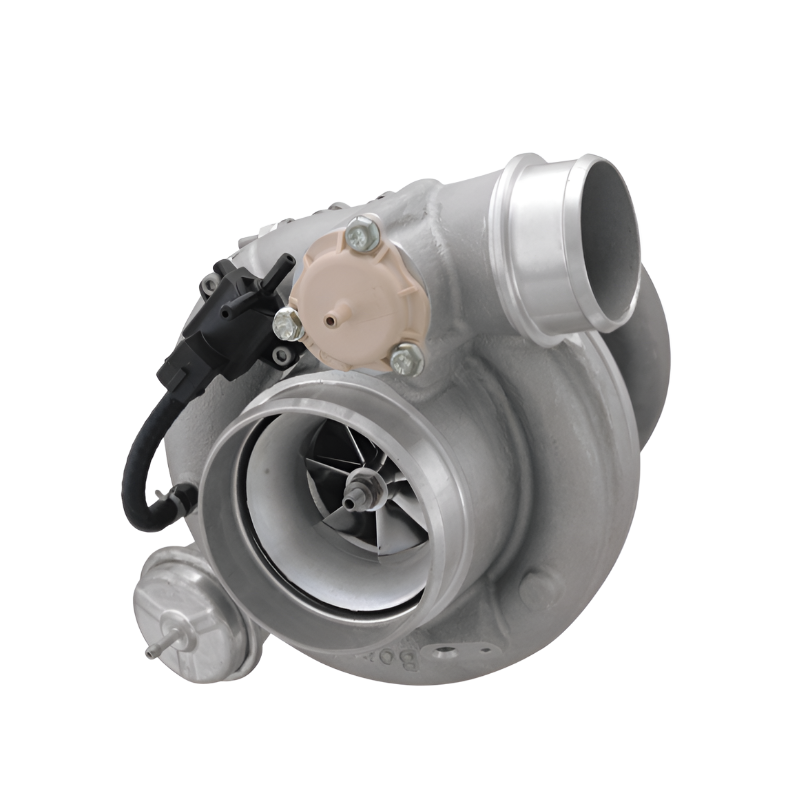

BorgWarner SuperCore Assembly EFR B2 9274 (Aluminum B. Hsg)

BorgWarner
BWA12747100021
840232712063
Super Core Assemblies
3 Units In Stock - Ships Next Business Day
$ 3,233.81 $ 2,587.05
$ 2,587.05

SKU: 12747100021 | UPC: 840232712063

BorgWarner SuperCore Assembly EFR B2 9274 (Aluminum B. Hsg)

The BorgWarner EFR B2 9274 SuperCore Assembly equips high-performance turbo systems with its complete core including compressor and turbine housings. Designed for custom installations on engines like Toyota 2JZ-GTE RB26DETT and GM LS it handles 650-1100+ horsepower with fast spool and high efficiency. This aluminum bearing housing unit supports extreme boost in drag racing and time attack setups.

Key Features

  • Forged Billet Compressor Wheel: 74.3mm inducer 92mm exducer extended tip design delivers 110+ lb/min flow for massive power while maintaining quick response
  • Gamma-Ti Turbine Wheel: 99mm inducer 74mm exducer resists 1050C exhaust gas temps for reliability in high-heat applications
  • Dual Ball Bearing CHRA: Aluminum B2 housing with ceramic balls provides low friction 150000 RPM capability and instant boost buildup
  • T4 Divided Turbine Housing: 0.85 A/R V-band flanges optimize twin-scroll flow for balanced spool and top-end power
  • Anti-Surge Compressor Housing: 4-inch inlet 2.5-inch hose to 4-inch outlet ports ensure surge resistance in 50+ psi boost setups

Product Notes

  • Assembled unit requires custom piping flanges and oil water lines for integration
  • Inspect bearings and seals before installation for peak longevity
  • Packaged to prevent damage during transit

Installation Notes

  • Professional installation recommended.
  • Supply clean 90wt oil and coolant connections to bearing housing
  • Uses standard T4 manifold V-band clamps sold separately

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra MKIV Turbo 2JZ-GTE
1989-2002 Nissan Skyline GT-R R32-R34 RB26DETT
1997-2004 Chevrolet Corvette C5 LS1
2005-2013 Chevrolet Corvette C6 LS2 LS3 LS7
2004-2021 Subaru WRX STI EJ25 High HP Builds

Why Choose BorgWarner?

  • Supplies turbo systems to Formula Drift and World Rally Championship teams
  • Builds with aerospace-grade materials for consistent dyno results
  • Engineers every component for precise airflow and heat management

Frequently Asked Questions

  • Q: What horsepower range does the EFR 9274 SuperCore support?
    A: Rated for 650-1100+ hp based on compressor map data and real-world motorsport use
  • Q: What material construction features the bearing housing?
    A: Lightweight aluminum B2 frame size with dual ceramic ball bearings for reduced weight and high RPM
  • Q: Does this include turbine and compressor housings?
    A: Yes complete SuperCore ships with T4 0.85 A/R divided turbine housing and large anti-surge compressor cover

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective foam-lined box 20 x 18 x 18 inches
  • Weight: 24.5 lbs
