BWA12747100023-BorgWarner SuperCore Assembly EFR B2 9274 (Cast Iron B. Hsg)-Super Core Assemblies-BorgWarner
Click to zoom in

BorgWarner SuperCore Assembly EFR B2 9274 (Cast Iron B. Hsg)

BorgWarner
BWA12747100023
840232712155
Super Core Assemblies
8 Units In Stock - Ships Next Business Day
$ 3,350.94 $ 2,655.23
$ 2,655.23

SKU: 12747100023 | UPC: 840232712155

BorgWarner SuperCore Assembly EFR B2 9274 (Cast Iron B. Hsg) - Universal High HP Turbo Build

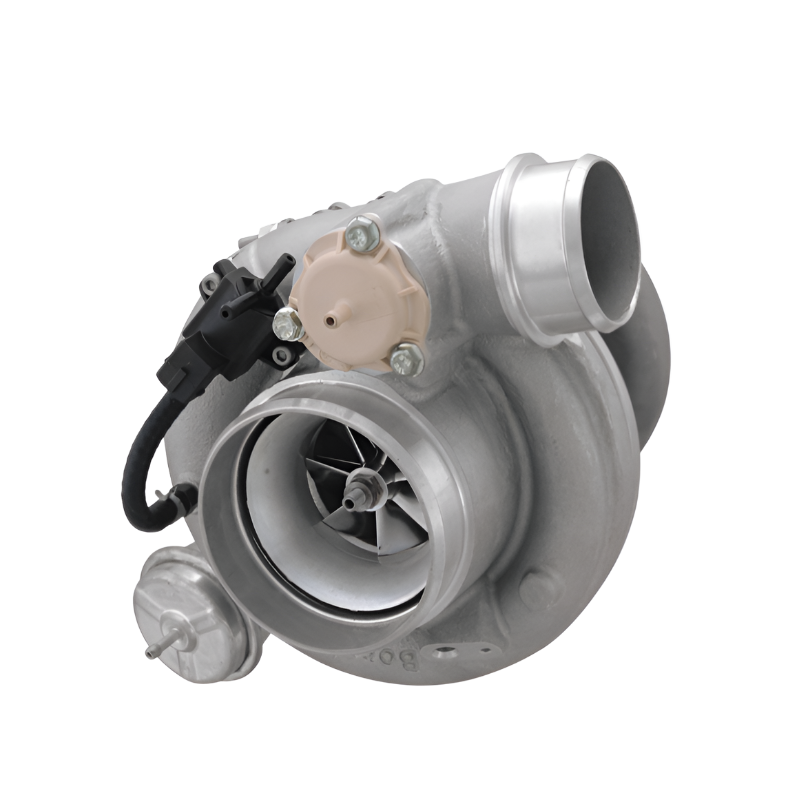

The BorgWarner EFR B2 9274 SuperCore Assembly powers custom turbocharger builds for racing and high-performance street cars targeting 900 to 1100 horsepower. This ball bearing CHRA with cast iron bearing housing fits a wide range of modified engines where maximum airflow and response matter. Build your turbo with matching EFR compressor and turbine housings for peak efficiency.

Key Features

  • Ball Bearing CHRA: Dual ceramic ball bearings cut friction for spool times under 3000 RPM and support 200000+ RPM operation
  • Compressor Wheel: 67mm inducer 91mm exducer FMW aluminum wheel with extended tips flows 110 lb/min of air
  • Turbine Wheel: 84mm inducer 74mm exducer Gamma-Ti Inconel wheel handles extreme EGTs over 1050C
  • Cast Iron Bearing Housing: Robust construction with integrated water cooling ports and M12x1.5 oil feed for reliable lubrication
  • B2 Frame Size: Compact design measures 5.7 inches diameter for tight engine bay packaging

Product Notes

  • SuperCore requires separate EFR 9274 compressor cover and turbine housing to complete assembly
  • Special order part non-returnable once ordered confirm compatibility first
  • Securely packaged to prevent damage during transit

Installation Notes

  • Professional installation recommended.
  • Oil feed M12x1.5 restrictor required based on engine oil pressure
  • Compatible with EFR T4 divided or T5 undivided turbine housings and A/R 0.58 to 0.73 compressor covers

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra Turbo (2JZ-GTE)
1989-2002 Nissan Skyline GT-R R32/R33/R34 (RB26DETT)
2008-2016 Mitsubishi Lancer Evolution X (4B11T)
1997-2004 Chevrolet Corvette C5 (LS1)
2005-2013 Chevrolet Corvette C6 (LS2/LS7)
Universal Various Custom Builds LS/2JZ/RB/4G63

Why Choose BorgWarner?

  • Proven in IMSA World Challenge and NASA racing series
  • OE-grade materials withstand 1000+ HP daily drivers
  • Precision machined tolerances for balanced operation

Frequently Asked Questions

  • Q: What components are included in the SuperCore?
    A: Ball bearing cartridge compressor wheel turbine wheel and cast iron bearing housing ready for housings
  • Q: Is the bearing housing water cooled?
    A: Yes features dual water ports for coolant circulation plus oil ports for full thermal management
  • Q: What warranty applies?
    A: 12-month unlimited mileage warranty against defects with proof of professional installation

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective carton 15 x 15 x 15 inches
  • Weight: 22 lbs shipping weight
