BorgWarner SuperCore Assembly EFR B2 9280 (Cast Iron B. Hsg)-Super Core Assemblies-BorgWarner-840232714586-
Click to zoom in

BorgWarner SuperCore Assembly EFR B2 9280 (Cast Iron B. Hsg)

BorgWarner
BWA12807100005
840232714586
Super Core Assemblies
4 Units In Stock - Ships Next Business Day
$ 3,196.09 $ 2,531.34
$ 2,531.34

SKU: 12807100005 | UPC: 840232714586

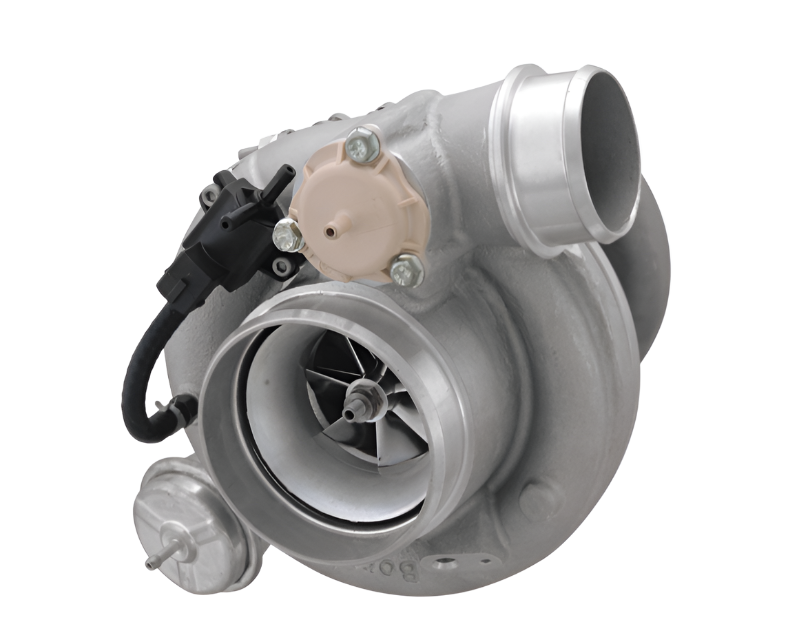

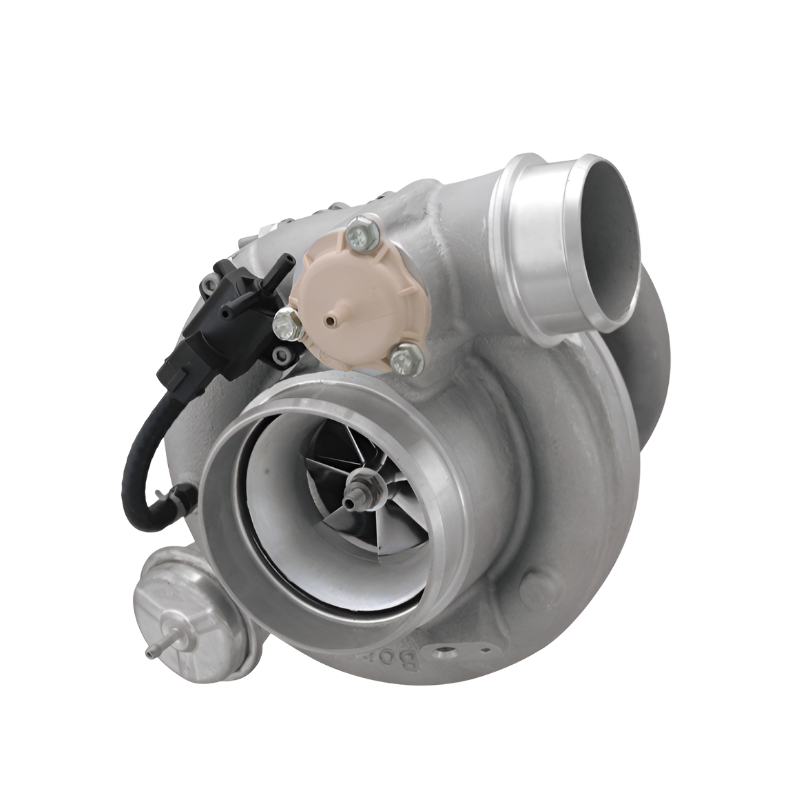

BorgWarner SuperCore Assembly EFR B2 9280 (Cast Iron Bearing Housing)

The BorgWarner EFR 9280 SuperCore Assembly is the heart of the high-flow EFR 9280 turbocharger featuring a ball bearing CHRA with cast iron bearing housing. Designed for custom turbocharger builds targeting 900-1200 horsepower this SuperCore supports extreme boost levels in drag racing and street/strip applications. Pair it with EFR 9280 compressor and turbine housings for seamless integration and peak performance.

Key Features

  • Ball Bearing CHRA: Dual ceramic ball bearings enable spool-up under 2000 RPM and withstand 160000 RPM for reliable power delivery
  • Gamma-Ti Turbine Wheel: 80mm inducer / 73.4mm exducer lightweight titanium wheel handles 100+ lb/min flow and exhaust temps up to 1050°C
  • Forged Billet Compressor Wheel: 67.9mm inducer / 91mm exducer design flows 110 lb/min with 56 trim for broad efficiency map
  • Cast Iron Bearing Housing: Oil and water-cooled housing ensures thermal stability and longevity in demanding conditions
  • SuperCore Design: Pre-assembled core drops directly into EFR 9280 housings simplifying custom turbo fabrication

Product Notes

  • SuperCore requires separate EFR 9280 turbine inlet (T3 T4 T6 V-band) and compressor outlet housings sold individually
  • Factory balanced assembly maintains VSR balancing standards post-installation
  • Ships fully assembled ready for housing installation and final balancing if needed

Installation Notes

  • Professional installation recommended.
  • Match with compatible EFR 9280 A/R housings based on engine displacement and boost goals
  • Requires V-band clamps and gaskets for turbine housing. oil/water lines for bearing housing

This Part Fits

Year Make Model Submodel
Universal Custom Builds High HP Turbo Applications 900-1200 HP
1993-2023 Toyota Supra (2JZ) All
1997-2023 Chevrolet Camaro / Corvette (LS) LS1/LS3/LS7
2004-2023 Ford Mustang (Coyote / Modular) GT500 / GT
1989-2023 Nissan Skyline GT-R (RB26) All

Why Choose BorgWarner?

  • Proven in OE applications from BMW and Volvo for unmatched reliability
  • Performance validated on dyno for real-world power gains
  • Precision machined components with tight tolerances for consistent results

Frequently Asked Questions

  • Q: What vehicles or engines does the EFR 9280 SuperCore fit?
    A: Fits custom turbo setups on 900-1200 HP engines like Toyota 2JZ Chevrolet LS Ford Coyote and Nissan RB26. select housings for specific manifold compatibility
  • Q: What material is the turbine wheel made from?
    A: Gamma-Ti (Inconel variant) for extreme heat resistance up to 1050°C and reduced inertia for quick response
  • Q: What is the warranty and installation process?
    A: Backed by BorgWarner 2-year unlimited mileage warranty on defects. install in housings with proper oiling and professional VSR balance recommended

Shipping & Handling

  • Method: UPS Ground / FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Secure foam-lined box measuring 16 x 16 x 16 inches
  • Weight: 18.5 lbs
