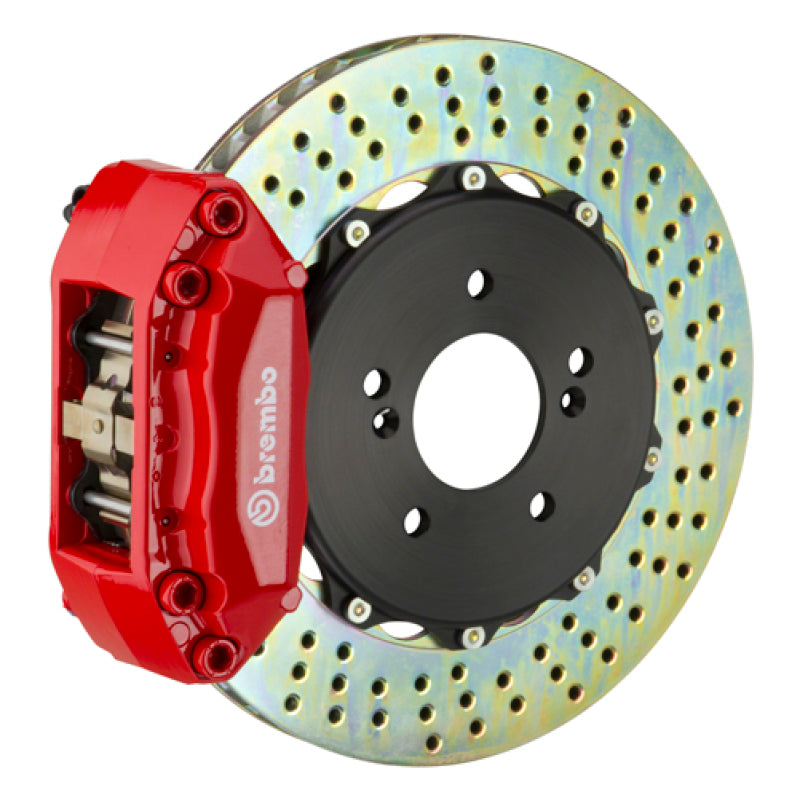

Brembo Brembo 02-07 RSX Front GT BBK 4 Piston Cast 2pc 328x28 2pc Rotor Drilled-Red
Click to zoom in

Brembo 02-07 RSX Front GT BBK 4 Piston Cast 2pc 328x28 2pc Rotor Drilled-Red

Brembo
BRB1A1.6013A2
Brake Kits - Performance Slot
Out of stock
$ 3,395.00

SKU: 1A1.6013A2

Brembo 02-07 RSX Front GT BBK 4 Piston Cast 2pc 328x28 2pc Rotor Drilled-Red

Brembo GT Big Brake Kit upgrades the front brakes on 2002-2007 Acura RSX models with race-level performance. This kit includes 4-piston cast monobloc calipers paired with 328x28mm two-piece drilled rotors to handle high heat and deliver consistent stopping force. Drivers gain shorter braking distances and resistance to fade for spirited street drives or track days.

Key Features

  • 4-Piston Cast Monobloc Calipers: Rigid aluminum body applies even pressure across pads for precise control and zero deflection under load
  • 328x28mm 2-Piece Drilled Rotors: Curved-vane center section with floating hat cuts unsprung weight by 3kg per corner while drilled faces expel gases water and improve cooling
  • Red Powder Coated Calipers: Tough finish resists corrosion from brake dust road salt and weather for long-term protection and bold wheel-visible style
  • Performance Brake Pads: High-friction compound provides strong initial bite progressive feel and sustained performance from cold to 1000°F
  • Full Assembly Hardware: Includes stainless steel braided lines bolts fittings and spacers for plug-and-play installation over stock components

Product Notes

  • Requires 17-inch wheels minimum for clearance
  • Perform pad bedding procedure after install for peak rotor-pad interface
  • Oversized components demand careful packaging for safe transit

Installation Notes

  • Professional installation recommended.
  • Bleed brake system with DOT 4 or 5.1 fluid post-install
  • Bolts directly to OEM knuckles retains ABS sensor and master cylinder compatibility

This Part Fits

Year Make Model Submodel
2002-2006 Acura RSX Base
2002-2006 Acura RSX Type-S

Why Choose Brembo?

  • Supplies brakes for Formula 1 MotoGP and World Superbike champions
  • Builds every kit in Italy with aerospace-grade materials and CNC machining
  • Balances daily drivability with endurance for weekend racers

Frequently Asked Questions

  • Q: Does this fit 2005 Acura RSX Type-S with stock wheels?
    A: Kit clears 17-inch wheels fits all 2002-2006 RSX Base and Type-S models as direct replacement no hub or knuckle changes needed
  • Q: What caliper material and piston setup?
    A: Cast aluminum monobloc calipers house four stainless steel pistons sized 42mm 38mm 36mm 30mm for progressive force application
  • Q: What warranty coverage?
    A: Backed by Brembo limited warranty on defects in materials workmanship excludes wear items like pads rotors contact retailer for claim process

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Single reinforced box 24in x 18in x 12in
  • Weight: 52 lbs
