Eagle Subaru EJ20 / EJ25 Connecting Rod (Single Rod)

Eagle
EAGCRS5137S3D-1
793348000190
Connecting Rods - Single
2 Units In Stock - Ships Next Business Day
$ 139.99
$ 139.99

SKU: CRS5137S3D-1

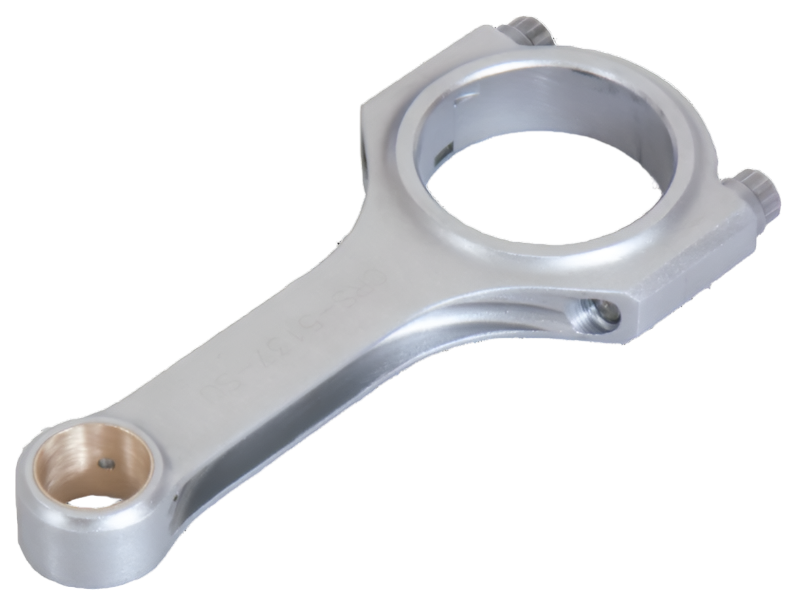

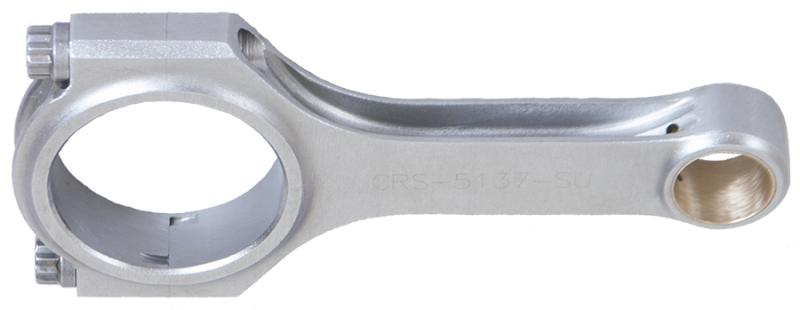

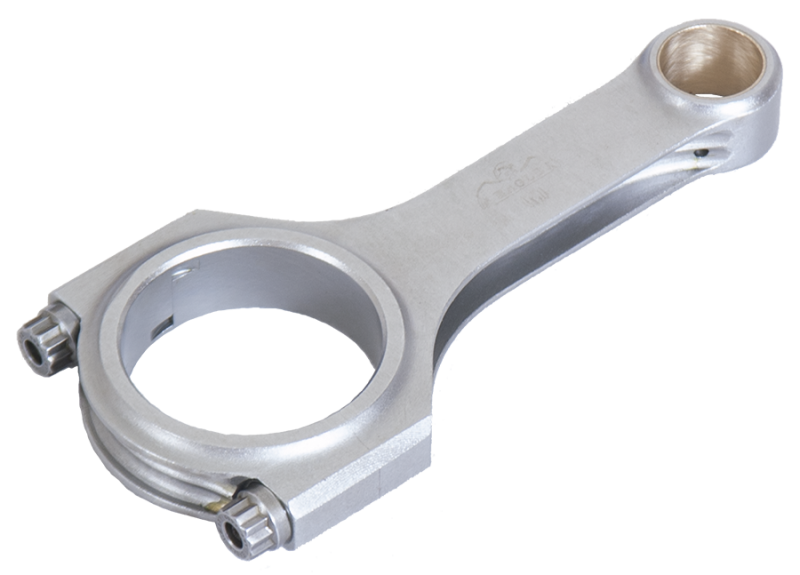

Eagle Subaru EJ20 / EJ25 Connecting Rod (Single Rod) - H-Beam EAG Conrods

Subaru EJ20 or EJ25 engine with the Eagle H-Beam Connecting Rod (Single Rod), precision-engineered for superior strength and performance. Crafted by Eagle, the industry’s leading aftermarket connecting rod manufacturer, this single rod (Part #DBA53919.1S) is forged from high-quality SAE 4340 steel using a two-piece forging process, ensuring exceptional durability and reliability for high-performance and competition applications.

Designed specifically for Subaru EJ20 and EJ25 engines, this H-Beam connecting rod features a fully machined and shot-peened surface, delivering unmatched structural integrity. Equipped with 3/8" ARP 2000 bolts and alignment sleeves for precise cap location, it’s built to handle up to 750-900 HP at the crank, making it ideal for turbocharged WRX, STI, Forester, and Baja models (2002-2014 Impreza WRX, 2004-2020 STI, and more). The rod is bushed for full-floating piston pins, enhancing performance under extreme conditions.

Key Specifications:

  • Material: Forged 4340 Steel
  • Center-to-Center Length: 5.137"
  • Pin Size: 0.906"
  • Pin End Width: 0.842"
  • Rod Journal: 2.047"
  • Housing Bore: 2.165"
  • Big End Width: 0.842"
  • Typical Weight: 530g
  • Torque Specs: 43 ft-lbs with ARP moly lube ONLY
  • Box Dimensions: 8.5" x 4" x 1" (1.3 lbs)

Applications:

  • 2002-2014 Subaru Impreza WRX
  • 2004-2020 Subaru Impreza WRX STI
  • 1998-2012 Subaru Forester (Base, S, X, XT, and more)
  • 2003-2006 Subaru Baja (Base, Sport, Turbo)
  • 2005-2009 Subaru Legacy GT
  • Other EJ18, EJ20, EJ25-equipped models

Product Details:

  • SKU: DBA53919.1
  • Product Name: EAG Conrods H-Beam - Single
  • Born On Date: 12-23-2010
  • Manufacturer: Eagle Specialty Products
  • Warranty: Manufacturer’s warranty applies
