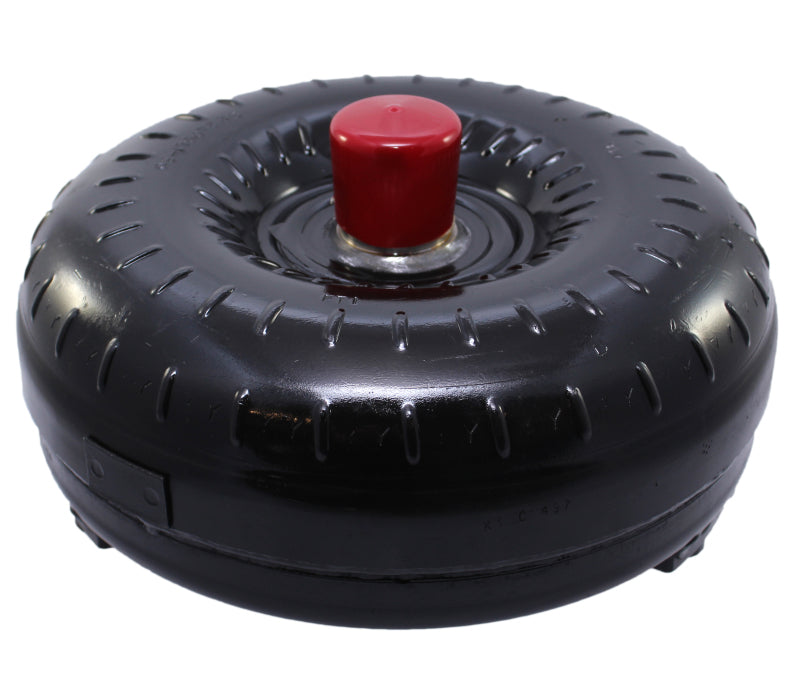

FTI 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall - FTI Performance SB2400LT30
FTI 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall - FTI Performance SB2400LT30
Click to zoom in
View vehicle applications

Description

This FTI Performance 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall is a performance torque converter selected by transmission family, engine combination, stall range, input spline, bolt pattern, lock-up configuration, and intended power level. Confirm the complete drivetrain combination before ordering.

Key Features

  • Crank Pilot Diameter (in.):1.703 IN.
  • Stall Speed Rating RPM Range:2400.

Fitment

Vehicle fitment is not assigned from transmission name alone. Verify the exact transmission, engine interface, spline, bolt pattern, case or bellhousing, dimensions, electronics, stall requirements, and complete drivetrain configuration.

Specifications

Brand FTI Performance
Manufacturer Part Number SB2400LT30
Product Type Torque Converters
Condition New
Configuration 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall
Transmission Compatibility 4L60E, 700R4
Diameter 12In
Stall Speed 2400 Stall
Spline 30 Spline
Lock-Up Compatible Yes

What's Included

One FTI Performance torque converter in the exact configuration shown. Converter bolts, flexplate, fluid, cooler, lines, wiring, controller, mount, crossmember, driveshaft parts, seals, and installation hardware are included only when expressly stated.

About FTI Performance

FTI Performance develops performance and racing torque converters, transmissions, internal components, cooling parts, and lubricants for properly matched street and competition drivetrains.

Related Parts

Frequently Asked Questions

How do I confirm the stall speed for the 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall?
Stall speed depends on engine torque, camshaft, vehicle weight, gearing, tire size, transmission, and intended use. Confirm the complete build with an FTI converter specialist before ordering.

Will this converter fit every vehicle with the listed transmission?
No. Transmission family alone is not enough. Verify engine pattern, pilot, flexplate bolt circle, input spline, lock-up control, spacing, and every vehicle-specific note.

Are converter bolts and mounting hardware included?
Hardware inclusion varies by converter series. Compare the exact part number with FTI's current bolt chart and included-components list before installation.

Installation Instructions

Confirm the exact FTI part number and complete drivetrain specification. Disconnect the battery and support the vehicle safely. Follow FTI's current instructions and the vehicle service procedure for converter seating, clearances, fasteners, fluid, cooler lines, wiring, linkage, driveshaft, and initial fill. Verify converter-to-flexplate clearance before tightening. Check fluid level at the specified temperature, inspect for leaks and abnormal noise, and recheck operation before full-load use.

FTI 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall

FTISB2400LT30
887753819055
Torque Converters
6 Units In Stock
$ 561.25 $ 426.77
$ 426.77
