Description

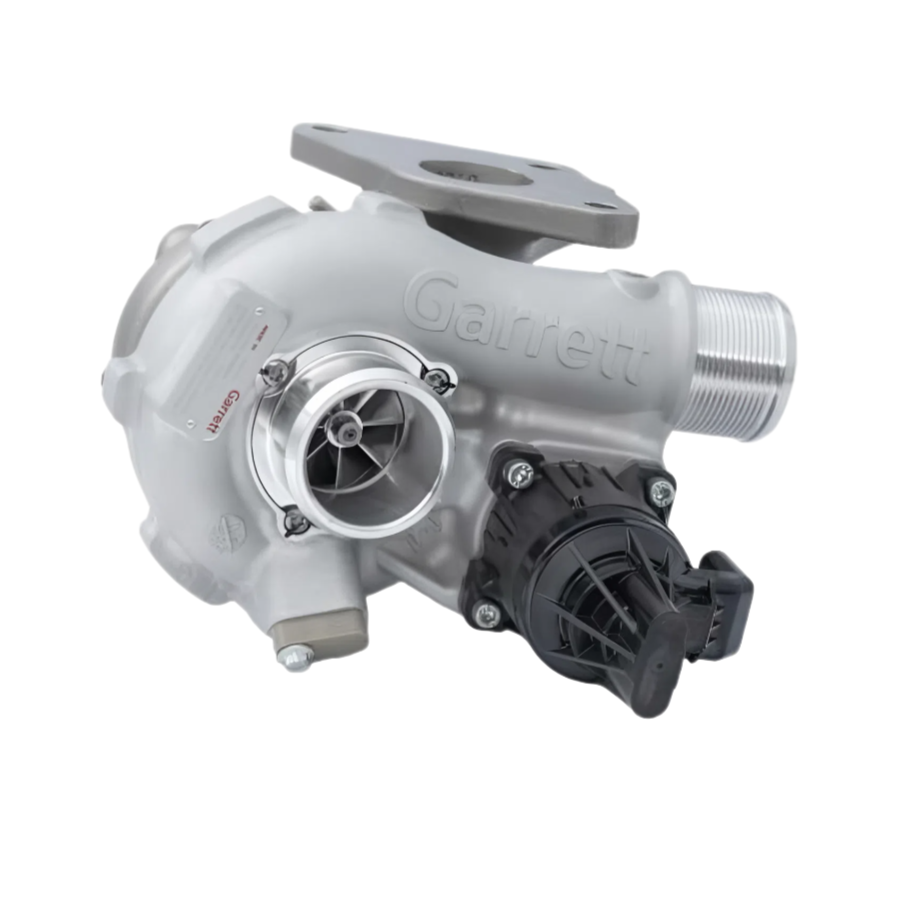

The Garrett 2021+ Ford Bronco 2.7L GT1752S PowerMax Turbocharger Kit is a performance turbocharger configuration selected by exact vehicle application or by complete engine-system requirements. Confirm the manufacturer part number, compressor and turbine match, rotation, flanges, oil and coolant connections, control strategy, calibration, and supporting hardware before ordering. The verified vehicle applications are listed in the Fitment table below.
Key Features
- Compressor Wheel: 41mm inducer / 52mm exducer (8-blade billet design in 0.59 A/R housing; +42% flow over OEM 34mm wheel).
- Turbine Wheel: 44mm inducer / 39mm exducer (9-blade GT-20 Inconel design in 0.50 A/R stainless steel housing with OEM electronic wastegate).
- Power Support: Up to 640 BHP / 477 kW (calculated from choke flow; actual results depend on tuning).
- Emissions: CARB certified (EO# D-871-3).
- Part Weight: Approximately 40 lbs (kit total).

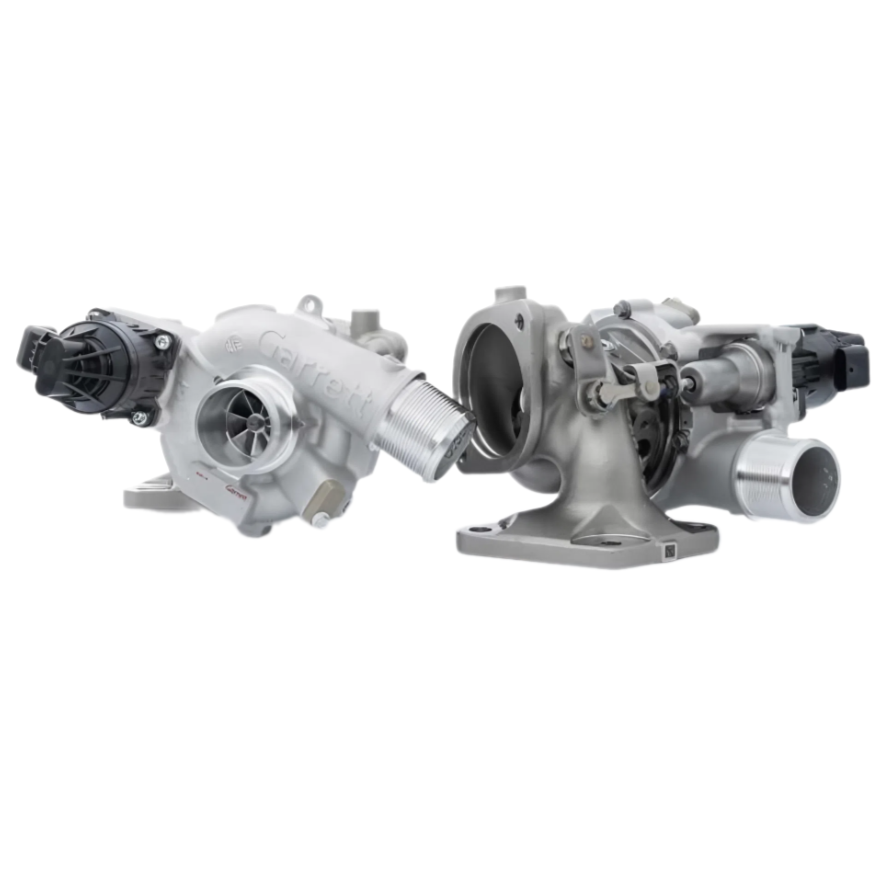

- Turbo Model: GT1752S (left-hand and right-hand assemblies).
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2021-2025 | Ford | Bronco | 2.7L twin turbo |
| 2024-2025 | Ford | Ranger | 2.7L twin turbo |
Specifications
| Brand | Garrett |
|---|---|
| Manufacturer Part Number | 926432-5001S |
| Product Type | Turbochargers |
| Condition | New |
| Rotation | Standard |
| Quantity | One exact listed component or kit |

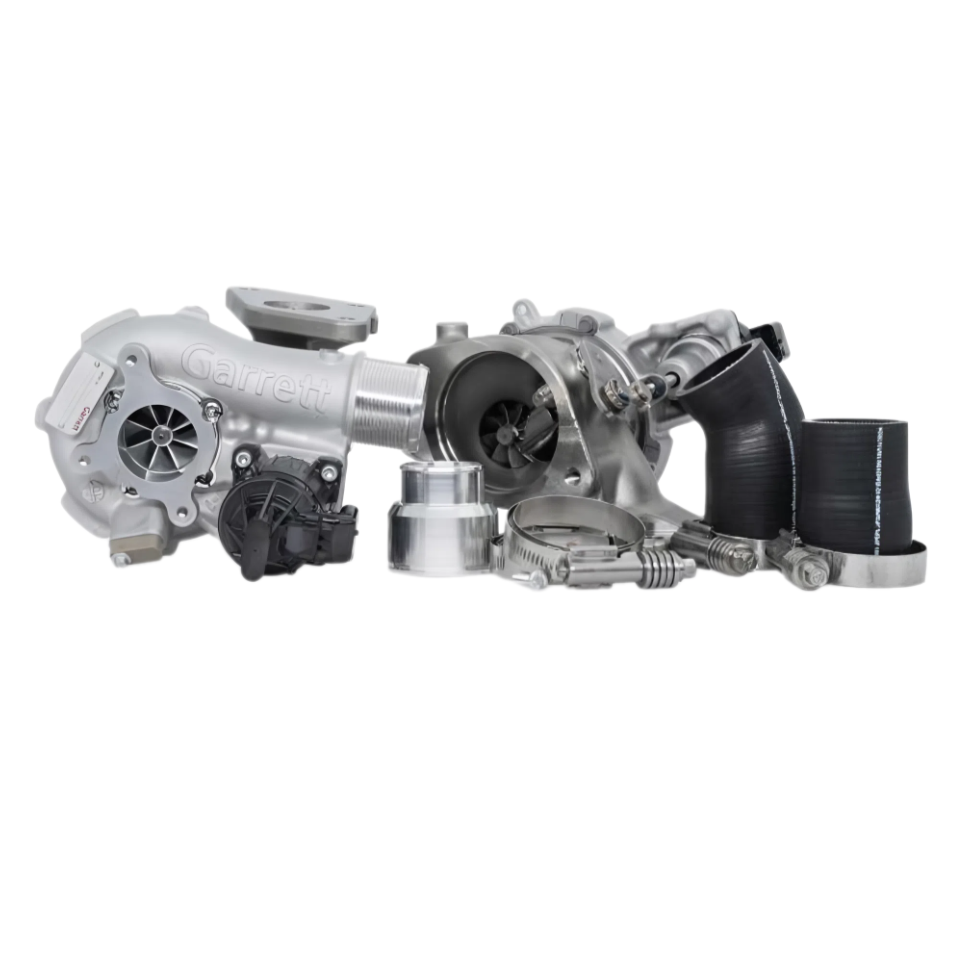

What's Included
One new Garrett component or kit in the exact configuration and quantity stated. Supporting housings, lines, fittings, clamps, gaskets, fasteners, sensors, wiring, controllers, calibration, fluids, and fabricated installation hardware are included only when expressly listed.
About Garrett
Garrett develops turbochargers, intercoolers, boost-control hardware, and forced-induction technology for original-equipment, replacement, and performance applications.
Related Garrett Products
- Shop all Garrett products
- Garrett 09-23 Fiat Abarth 500 1.4L MGT1446Z PowerMax Turbo Upgrade Kit
- Garrett 13-17 Ford 3.5L EcoBoost Stage 1 GT1749S Twin Turbo Kit (PMAX)
- Garrett 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger
Frequently Asked Questions
Is the 2021+ Ford Bronco 2.7L GT1752S PowerMax Turbocharger Kit a direct-fit turbocharger?
Match the year, make, and model in the Fitment table, then confirm the listed engine, trim, position, calibration, and manufacturer part number.
Does the 2021+ Ford Bronco 2.7L GT1752S PowerMax Turbocharger Kit require tuning?
Any airflow or boost change must be evaluated in the engine calibration. Follow Garrett's current requirements and use a qualified calibrator for the complete combination.
What supporting parts are needed for the 2021+ Ford Bronco 2.7L GT1752S PowerMax Turbocharger Kit?
Oil and coolant lines, gaskets, fasteners, inlet and exhaust connections, boost control, sensors, intercooling, fuel-system capacity, and installation hardware depend on the exact application.
Installation Instructions
Installation must follow Garrett's current instructions for the exact part number. Verify fitment and the complete system first, protect the engine from debris, prime oil-fed components before startup, use the specified lines, fittings, gaskets, fasteners, torque values, heat protection, wiring, controls, and calibration, then inspect for leaks, interference, abnormal noise, and correct boost operation before driving.
