Gen-Y Hitch Extender 14in x 2in 500lb TW 10K Towing

Move Your Receiver Back 14 Inches Without Sacrificing Towing Capacity

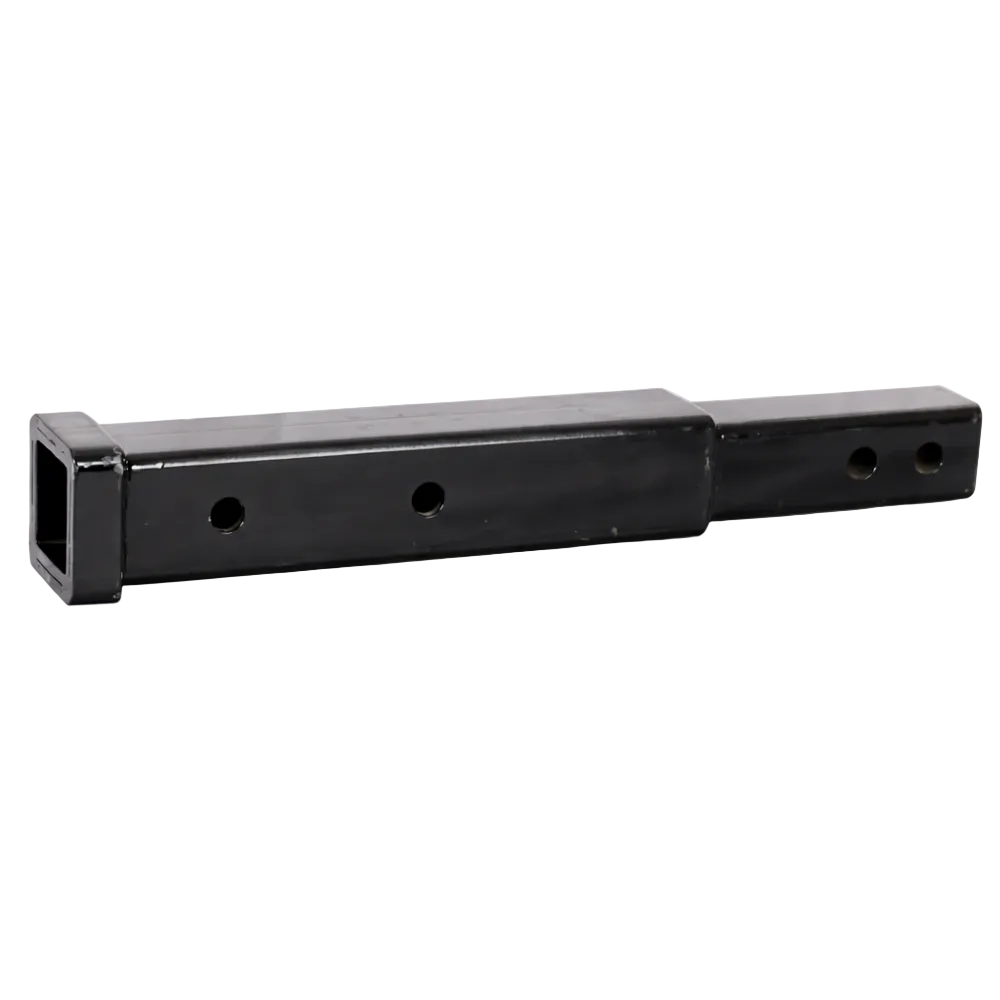

The Gen-Y GH-040 hitch extender adds 14 inches of clearance between your receiver and the trailer coupler, solving the cab-corner clearance problem on short-bed trucks towing fifth-wheel or bumper-pull trailers. Built from heavy-duty powder-coated steel with a 2-inch receiver shank, the GH-040 is rated at 500 lb tongue weight and 10,000 lb gross towing capacity. The shank fits either 2-inch drop or 2-inch rise orientation, so the same extender adapts to trucks with different hitch heights. A single hitch pin and clip (included) locks the extender in place.

Key Features

• 14-inch extension moves the trailer coupler rearward, preventing cab-corner contact during tight turns
• 2-inch receiver shank fits all standard 2-inch class III and class IV receivers
• Reversible 2-inch drop or 2-inch rise orientation for flexible hitch height matching
• 500 lb tongue weight capacity and 10,000 lb gross towing capacity
• Heavy-duty powder-coated steel construction resists rust and road-salt exposure
• Includes hitch pin and clip for secure retention
• Universal design works with any truck, SUV, or van equipped with a standard 2-inch receiver
• Compact single-piece design adds no moving parts or failure points

Specifications

What's Included

• 1 GH-040 hitch extender (14-inch, 2-inch shank)
• 1 hitch pin
• 1 hitch pin clip

About Gen-Y Hitch

Gen-Y Hitch engineers heavy-duty towing solutions for commercial fleets and serious recreational towers. Based in Nappanee, Indiana, Gen-Y is known for its Executive series adjustable hitches and 5th wheel to gooseneck conversion systems. The GH-040 is part of Gen-Y's lineup of universal towing accessories designed to expand the capability of standard receiver hitches.

Frequently Asked Questions

The Gen-Y GH-040 is used to move a trailer's coupler point 14 inches further rearward from the truck's bumper. This extra distance is most commonly needed on short-bed trucks where the trailer would otherwise contact the cab corner during tight turns.

The GH-040 uses a standard 2-inch square receiver shank. It fits any truck, SUV, or van with a standard 2-inch class III or class IV receiver hitch.

Yes. The GH-040 shank is reversible, providing either 2 inches of drop or 2 inches of rise depending on which orientation you install it. This makes the extender compatible with a wider range of truck and trailer height combinations.

The Gen-Y GH-040 is rated at 500 lb tongue weight capacity. Do not exceed this rating regardless of the tow vehicle's tongue weight capacity.

The GH-040 has a 10,000 lb gross towing capacity. Always stay within the lower of the GH-040 rating, your vehicle's tow rating, and your trailer's GVWR.

The GH-040 includes a standard hitch pin and clip. If you want to prevent theft of the extender, a separately purchased locking hitch pin in the appropriate diameter will work in the GH-040's pin hole.

A hitch extender does not directly reduce the tow vehicle's published tow rating, but adding extender length increases the lever arm acting on the hitch receiver. The GH-040's 10,000 lb gross towing capacity is the limiting factor when using this extender.

Yes. The GH-040 is finished with a powder-coat that resists rust and corrosion from road salt and moisture. Periodically remove the extender from the receiver, clean the shank, and lightly lubricate with a receiver anti-seize compound to prevent binding.

Installation Instructions

1. Confirm your receiver is a standard 2-inch opening and the hitch is rated for at least 10,000 lb gross towing.
2. Decide on drop or rise orientation and insert the GH-040 shank into the receiver in the correct position.
3. Align the pin holes and insert the included hitch pin through both the receiver and the GH-040 shank.
4. Install the hitch clip through the hitch pin to prevent accidental removal.
5. Attach your ball mount or coupler to the 2-inch receiver opening at the rear of the GH-040.
6. Verify all connections are tight before towing.
