SKU: 12010461

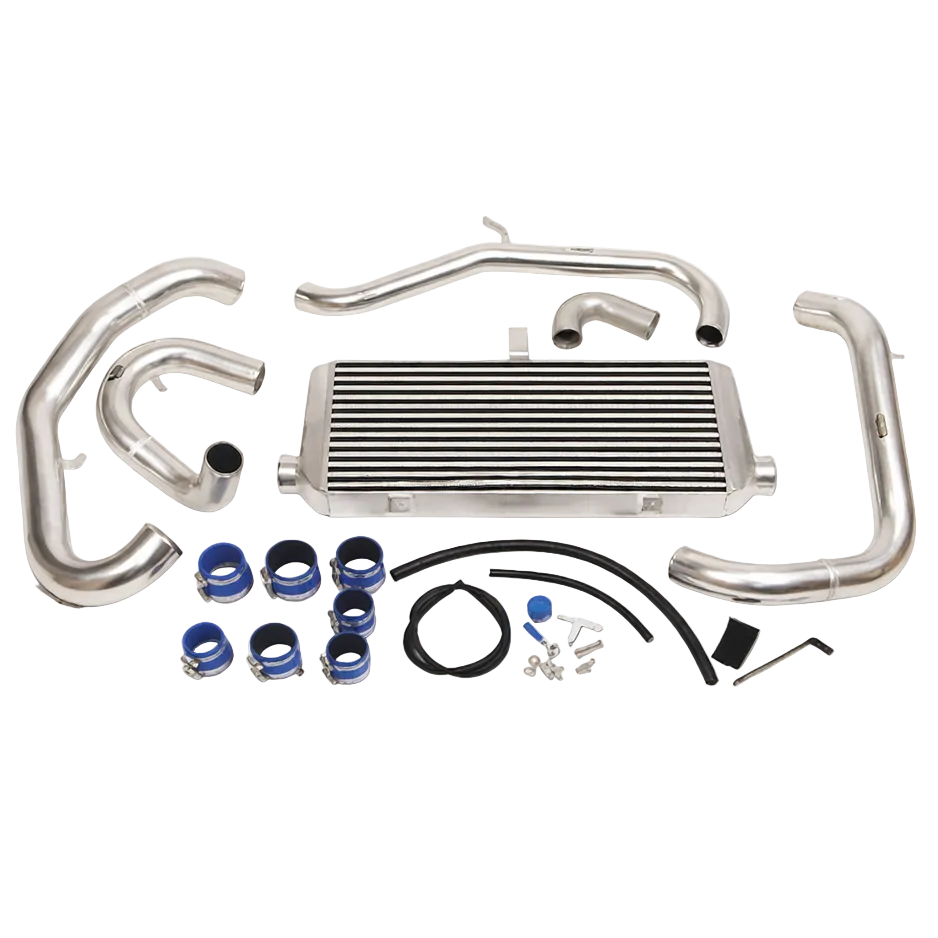

GReddy Toyota Chaser JZX100 (1996-2001) Intercooler Kit
GReddy intercooler kit delivers front-mount cooling for Toyota Chaser JZX100 Mark II JZX100 and Cresta JZX100 equipped with 1JZ-GTE turbo engines. This complete kit replaces stock intercooler with larger capacity unit and performance piping to drop charge air temperatures. JZX100 owners gain consistent power delivery and engine protection during hard driving or track use.
Key Features
- Bar-and-Plate Core: 480mm x 290mm x 110mm dimensions provide high thermal efficiency and quick heat dissipation for sustained boost levels.
- Cast Aluminum End Tanks: Durable construction handles high pressures up to 2.0 bar while directing airflow smoothly into piping.
- Mandrel-Bent Piping: 50mm diameter aluminum tubes reduce turbulence and pressure drop for improved turbo response.
- Complete Hardware Kit: Includes T-bolt clamps silicone couplers and CAD-engineered brackets for direct bolt-on fitment.
- Black Powdercoat Finish: Resists corrosion and heat while blending with engine bay for clean appearance.
Product Notes
- Requires removal of stock intercooler and bumper for installation.
- Pair with upgraded blow-off valve for full performance gains.
- Ships fully assembled in protective packaging.
Installation Notes
- Professional installation recommended.
- Modify or trim plastic shrouds if needed for clearance.
- Bolts to factory mounting points with included hardware.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996-2001 | Toyota | Chaser | JZX100 Tourer V (1JZ-GTE) |
| 1996-2001 | Toyota | Mark II | JZX100 Tourer V (1JZ-GTE) |
| 1996-2001 | Toyota | Cresta | JZX100 Tourer V (1JZ-GTE) |
Why Choose GReddy?
- Proven in D1GP drifting and JDM racing circuits.
- Precision-welded components built for daily and competition use.
- Engineered in Japan with dyno-tested airflow data.
Frequently Asked Questions
-
Q: Will this kit fit both 1JZ-GTE VVTi and non-VVTi engines?
A: Yes designed as direct replacement for all JZX100 1JZ-GTE variants from 1996-2001. -
Q: What materials are used in construction?
A: Full aluminum core tanks and piping with stainless steel hardware for lightweight strength. -
Q: What warranty coverage applies?
A: Backed by GReddy 1-year limited warranty against manufacturing defects.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 48 x 24 x 14 inches
- Weight: 42 lbs
