SKU: 12010460
GReddy Trust 92-96 Toyota Mark II JZX90 Spec-LS Intercooler Kit (Special Order)

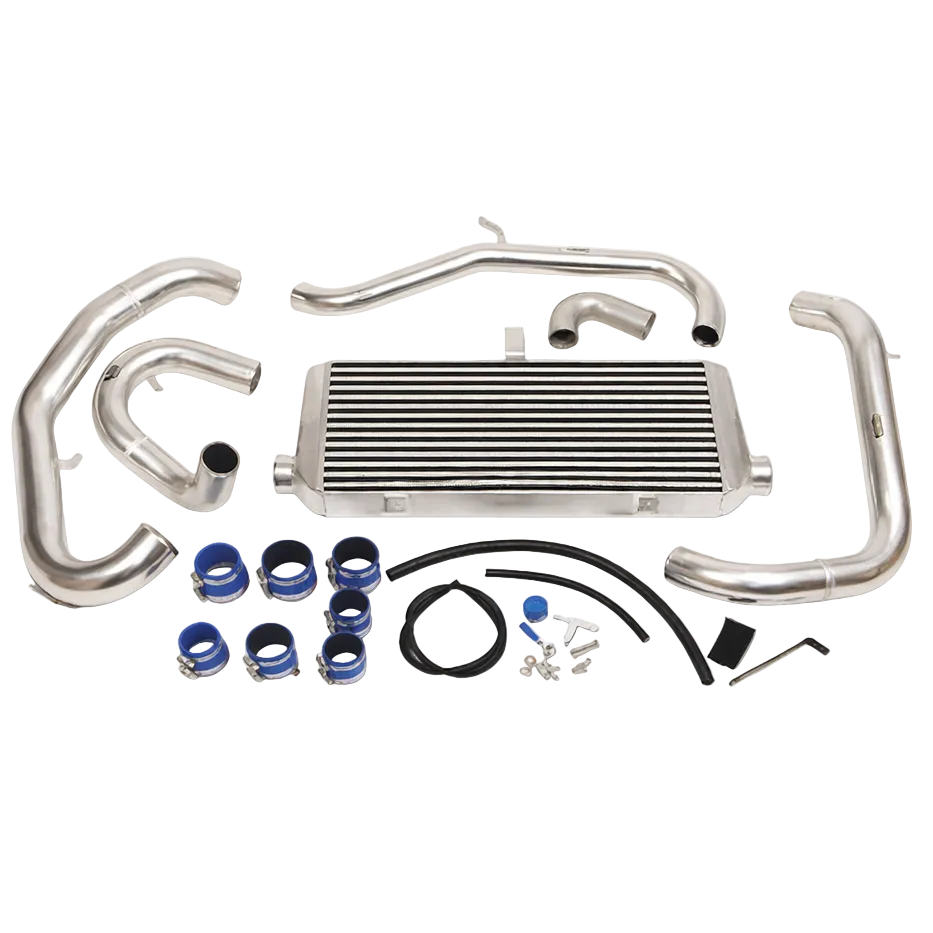

The GReddy Trust Spec-LS Intercooler Kit fits 1992-1996 Toyota Mark II JZX90 models with 1JZ-GTE turbo engines. This front-mount intercooler replaces the stock unit with a larger core and smooth piping to reduce intake air temperatures and boost power output. Direct bolt-on design uses factory mounting points for easy installation and reliable gains in drift and street driving.
Key Features
- Spec-LS Core: 520mm x 170mm x 65mm bar-and-plate aluminum core provides high cooling efficiency with low pressure drop for consistent turbo boost on 1JZ-GTE engines.
- Mandrel-Bent Piping: 50mm diameter polished aluminum pipes promote smooth airflow and faster turbo spool-up.
- Cast Brackets: Heavy-duty aluminum brackets ensure stable mounting and resist vibration under high-performance conditions.
- Complete Hardware: Includes high-temperature silicone couplers, stainless T-bolt clamps, and fittings for secure leak-free connections.
- JDM Design: Engineered in Japan for JZX90 chassis with track-proven performance in drift and street setups.
Product Notes
- Special order item with 4-6 week lead time from manufacturer.
- Inspect turbo piping compatibility before purchase.
- Oversized freight shipping applies due to kit dimensions.
Installation Notes
- Professional installation recommended.
- Remove front bumper and headlights for access during core installation.
- Uses factory turbo outlet and intake manifold locations with included adapters.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992-1996 | Toyota | Mark II | JZX90 1JZ-GTE |
| 1992-1996 | Toyota | Chaser | JZX90 Tourer V 1JZ-GTE |
| 1992-1996 | Toyota | Cresta | JZX90 Tourer V 1JZ-GTE |
Why Choose GReddy Trust?
- Over 40 years of JDM tuning heritage and motorsport success.
- High-grade aluminum construction withstands high boost pressures.
- Exact-fit engineering tailored to Toyota 1JZ-GTE platforms.
Frequently Asked Questions
-
Q: Will this kit fit JZX90 1JZ-GTE VVTi models?
A: Designed for non-VVTi 1992-1996 1JZ-GTE engines in Mark II, Chaser, and Cresta JZX90. VVTi swaps require adapter verification. -
Q: What materials are used in construction?
A: Full aluminum bar-and-plate core, cast end tanks, and mandrel-bent pipes with silicone boost hoses for heat and pressure resistance. -
Q: What warranty coverage applies?
A: 1-year manufacturer defect warranty through GReddy when installed by certified shop with proof of purchase.
Shipping & Handling
- Method: UPS Ground / FedEx Ground
- Availability: Special Order - ships in 4-6 business days after order confirmation
- Packaging: Oversized box 48 x 24 x 14 inches
- Weight: 40 lbs
