Combined Pressure and Temperature Data in One Sensor

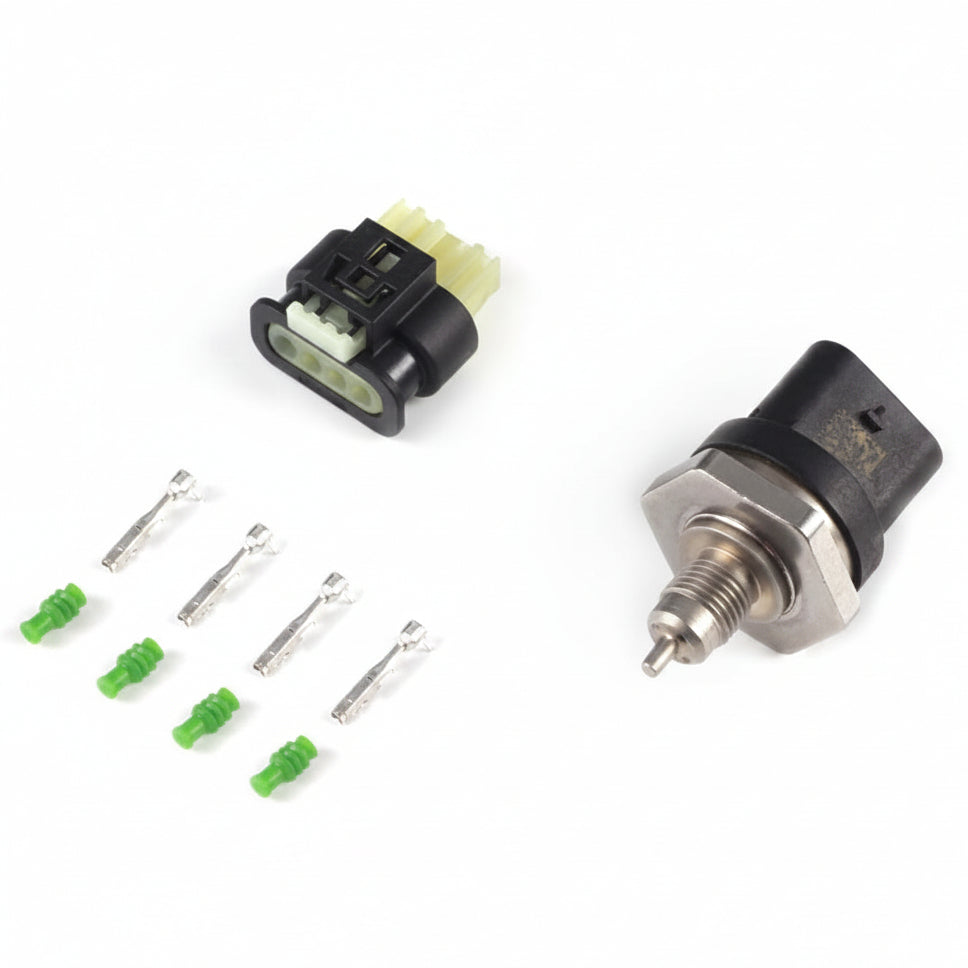

This is the Haltech Bosch 4000 PSI fluid pressure and temperature sensor, a dual-function sensor that measures both fluid pressure and fluid temperature from a single M10x1.0 threaded port. It is commonly used for fuel, oil, or boost pressure and temperature monitoring on performance and race applications.
Key Features
- Measures fluid pressure from 0 to 4060 PSI.
- Measures fluid temperature from -40 to 140 degrees Celsius.
- Bosch sensor element in a single combined pressure and temperature unit.
- M10x1.0 thread for direct fitting installation.
- Includes matching plug, pins, and seals.
Fitment
| Application | Requirements |
|---|---|
| Haltech engine management systems or any system accepting combined pressure and temperature analog inputs | M10x1.0 threaded port required |
Specifications
| Detail | Value |
|---|---|
| Brand | Haltech |
| Sensor Element | Bosch |
| Pressure Range | 0-4060 PSI |
| Temperature Range | -40 to 140 degrees Celsius |
| Thread | M10x1.0 |
What's Included
- One Haltech Bosch 4000 PSI fluid pressure and temperature sensor
- Matching plug, pins, and seals
About Haltech
Haltech designs engine management systems, sensors, and wiring components for performance and race applications, engineering combined pressure and temperature sensors to reduce the number of ports needed for critical fluid monitoring.
FAQ
What does this sensor measure?
Both fluid pressure and fluid temperature from a single sensor.
What pressure range does this sensor cover?
0 to 4060 PSI.
What temperature range does this sensor cover?
-40 to 140 degrees Celsius.
What thread does this sensor use?
M10x1.0.
Is a mating connector included?
Yes, a matching plug, pins, and seals are included.
What fluids is this sensor commonly used to monitor?
Fuel, oil, or boost pressure and temperature, depending on the installation.
Can this sensor be used with a non-Haltech ECU?
It is designed for Haltech systems but may work with other systems that accept a compatible combined pressure and temperature analog input. Confirm compatibility with your ECU before ordering.
Does this sensor require a separate mating connector accessory?
No, this listing includes the matching plug, pins, and seals needed for installation.
Installation Instructions
- Select a mounting location with an M10x1.0 threaded port on the fluid system being monitored.
- Apply appropriate thread sealant and install the sensor into the port.
- Connect the included plug, pins, and seals, verifying correct wiring polarity before power up.
- Route the wiring harness away from heat sources and secure it to prevent chafing.
- Configure the pressure and temperature input calibration in the engine management or logging software.
- Verify sensor readings against a known reference before relying on the system for critical measurements.
