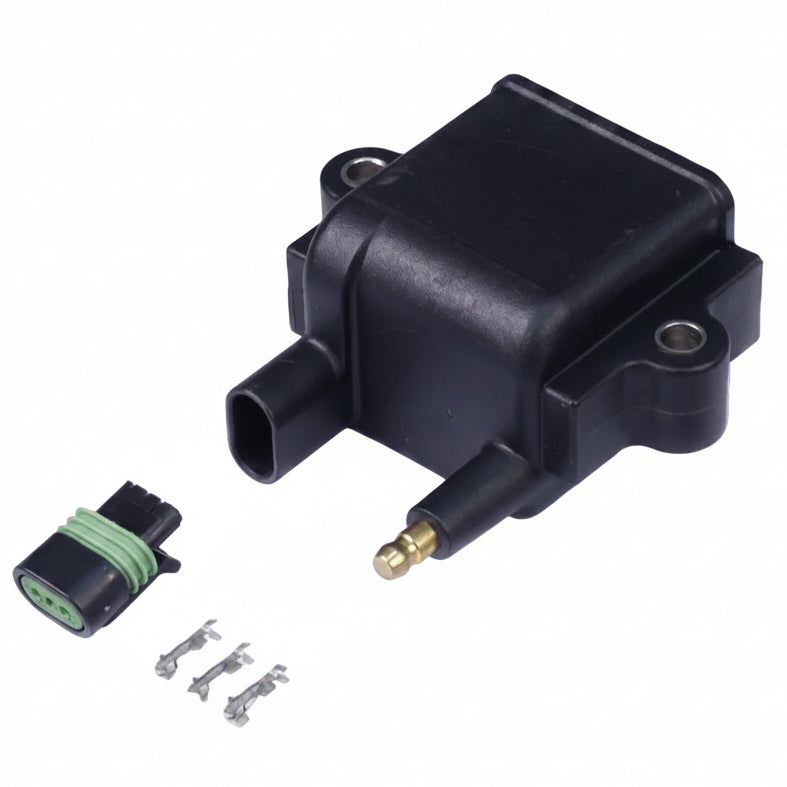

The Haltech High Output CDI Coil (Includes Plug and Pins) is a ignition coils - upgrade for an application that requires exact vehicle and system confirmation. Match manufacturer part number HT-020132, function, connector or thread, dimensions, supported controller, and package contents before ordering.
Key Features
- Haltech ignition component identified by exact coil type, connector, output requirements, and part number
- Electrical compatibility, dwell settings, mounting, and wiring are application specific
- Confirm the ECU, ignition module, harness, and spark-plug arrangement before ordering
- Final dwell and trigger settings must be validated during calibration
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| Verification required | Confirm vehicle | Confirm model | Match the exact engine, controller, harness, connector, and current Haltech application before ordering |
Specifications
| Brand | Haltech |
|---|---|
| Manufacturer Part Number | HT-020132 |
| Product Type | Ignition Coils - Upgrade |
| Fitment Type | Fitment Verification Required |
| Condition | New |
| Coil Type | High output inductive smart coil |
| Spark Energy | Up to 103 mJ |
| Spark Duration | Up to 2.9mS |
| Output Voltage | Up to 40kV |
| Dimensions | 4in L x 4in W x 2in H |
| Weight | 1 lb |
What's Included
One new Haltech ignition coils - upgrade package identified by manufacturer part number HT-020132, in the configuration and quantity stated by the title. Harnesses, connectors, sensors, fittings, modules, mounting hardware, software, and accessories are included only when expressly listed for this exact part number.
About Haltech
Haltech develops engine management systems, power distribution modules, displays, sensors, wiring, and calibration tools for performance and motorsport applications.
Related Haltech Products
- Shop all Haltech products
- Haltech LS1 Coil with Built-In Ignitor (Includes Plug and Pins)
- Haltech 00-04 Honda S2000 (AP1/2005 AP2) Elite 1000/1500 Plug-n-Play Adaptor Harness
- Haltech 02-05 Honda Integra (EP3/DC5) / 02-04 Acura RSX Elite 1000/1500 Plug-n-Play Adaptor Harness
Frequently Asked Questions
Will these coils work with my ECU and engine?
Confirm the exact coil type, connector, electrical characteristics, ignition module requirements, mounting, and application data before ordering.
Do the dwell settings need to be changed?
Dwell is coil and voltage dependent. Use verified Haltech or coil-manufacturer data and have a qualified tuner validate dwell, trigger settings, timing, and protections.
Can I reuse my existing coil connectors and wiring?
Only when the connector, terminal condition, wire size, grounding, power supply, and pinout match the selected coil. Inspect and test the complete ignition circuit before startup.
Installation Instructions
Follow current Haltech documentation and the vehicle service manual for part number HT-020132. Disconnect power before wiring, verify every connector and pin assignment, protect and ground circuits correctly, configure the supported device, test all inputs and outputs, and complete professional calibration before operation.
