Extended Linear Travel Measurement for Race Applications

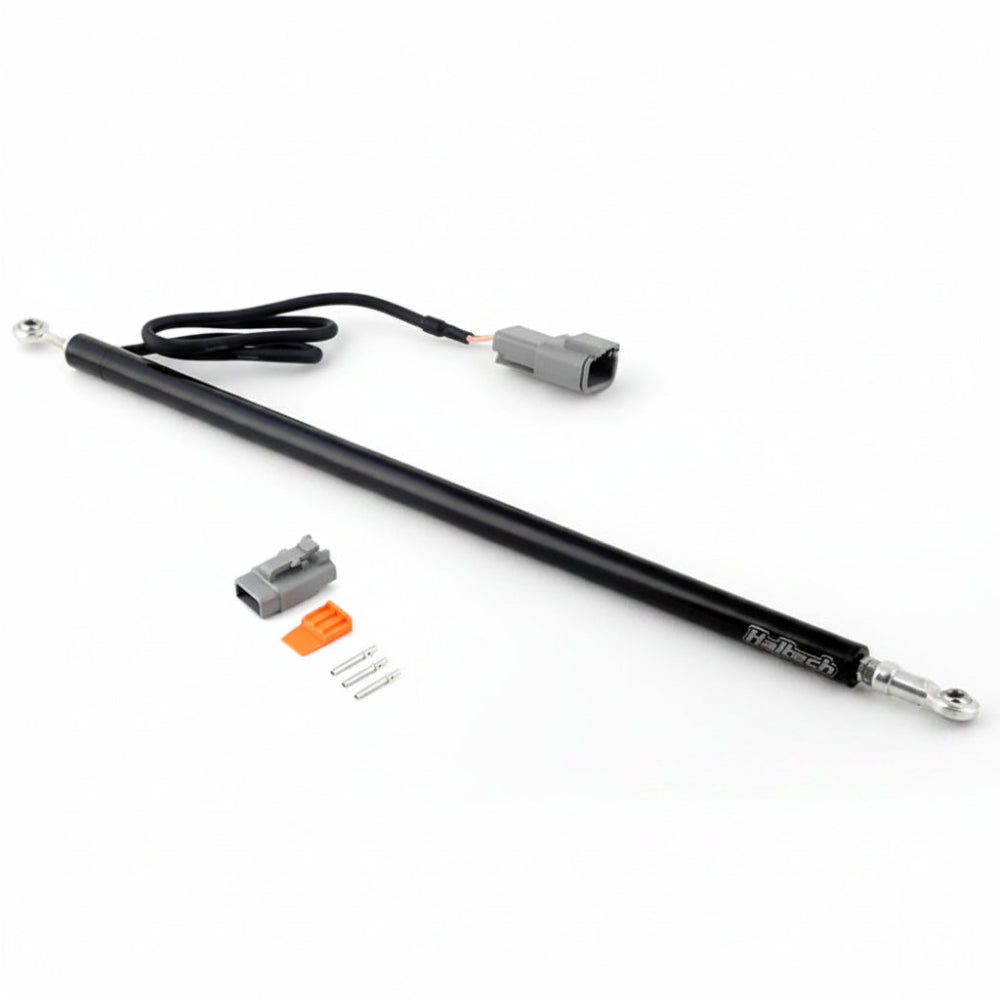

This is the Haltech 1/2in linear position sensor with 250mm of travel, designed to measure linear displacement over a longer stroke range than Haltech's shorter travel sensors. It ships with a matching opposing connector set for a complete installation.
Key Features
- 1/2in (12.70mm) diameter sensor body.
- 250mm (9.8in) of linear travel.
- 367mm length between mounting holes when closed.
- Includes a matching opposing connector set.
Fitment
| Application | Requirements |
|---|---|
| Any linear travel measurement application requiring 250mm of stroke, such as long-travel suspension or actuator position | Confirm available mounting length of 367mm between holes when closed before ordering |
Specifications
| Detail | Value |
|---|---|
| Brand | Haltech |
| Diameter | 1/2in (12.70mm) |
| Travel | 250mm (9.8in) |
| Length Between Mounting Holes (Closed) | 367mm |
What's Included
- One Haltech 1/2in linear position sensor, 250mm travel
- One opposing connector set
About Haltech
Haltech designs engine management systems, sensors, and wiring components for performance and race applications, offering its linear position sensor line in multiple diameters and travel lengths, including this longer 250mm stroke version for long-travel applications.
FAQ
How much travel does this sensor provide?
250mm (9.8in).
Is a connector included?
Yes, a matching opposing connector set is included.
What is the mounting length when the sensor is fully closed?
367mm between mounting holes.
What applications is this sensor used for?
Linear displacement measurement over longer stroke ranges, such as long-travel suspension or actuator position.
Are shorter travel versions available?
Yes, Haltech offers this sensor in shorter travel lengths including 50mm, 100mm, 150mm, and 200mm as separate part numbers.
What diameter is this sensor?
1/2in (12.70mm).
Does this sensor require a specific ECU?
It outputs a standard analog signal compatible with Haltech engine management systems and other systems accepting a compatible linear position input.
Is this sensor suitable for suspension travel measurement?
Yes, the extended 250mm travel range suits longer suspension or actuator strokes where shorter sensors will not fit the full range of motion.
Installation Instructions
- Select a mounting location that provides the required 367mm closed length and 250mm of travel clearance.
- Mount the sensor body and connecting rod to the moving and fixed points being measured.
- Connect the included opposing connector set, verifying correct wiring before power up.
- Route the wiring harness away from heat sources and secure it to prevent chafing.
- Configure the linear position input calibration in the engine management or logging software.
- Verify sensor output across the full range of travel before relying on the measurement.
