Compact Linear Travel Measurement for Race Applications

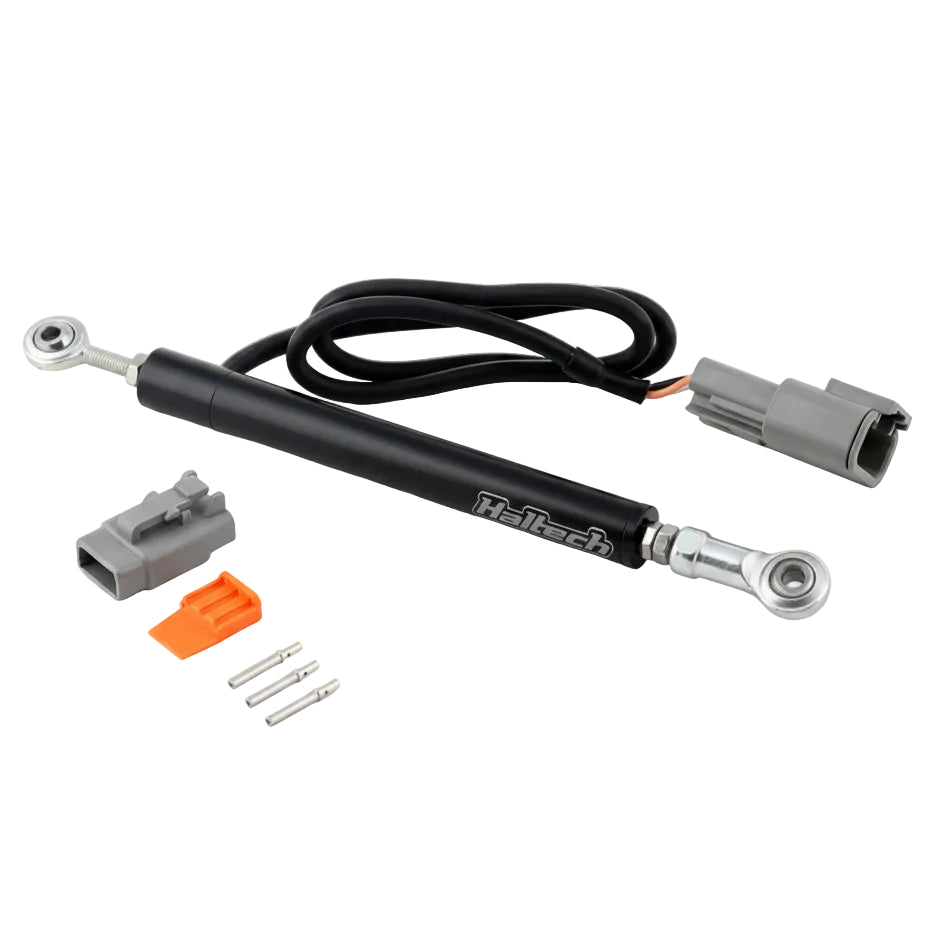

This is the Haltech 1/2in linear position sensor with 50mm of travel, designed to measure linear displacement for applications such as throttle position, suspension travel, or wastegate actuator position. It ships with a matching opposing connector set for a complete installation.
Key Features
- 1/2in (12.70mm) diameter sensor body.
- 50mm (1.9in) of linear travel.
- 167mm length between mounting holes when closed.
- IP65 ingress protection rating.
- Includes a matching opposing connector set.
Fitment
| Application | Requirements |
|---|---|
| Any linear travel measurement application requiring 50mm of stroke, such as throttle, suspension, or actuator position | Confirm available mounting length of 167mm between holes when closed before ordering |
Specifications
| Detail | Value |
|---|---|
| Brand | Haltech |
| Diameter | 1/2in (12.70mm) |
| Travel | 50mm (1.9in) |
| Length Between Mounting Holes (Closed) | 167mm |
| Ingress Protection | IP65 |
What's Included
- One Haltech 1/2in linear position sensor, 50mm travel
- One opposing connector set
About Haltech
Haltech designs engine management systems, sensors, and wiring components for performance and race applications, offering its linear position sensor line in multiple diameters and travel lengths to suit different measurement needs.
FAQ
How much travel does this sensor provide?
50mm (1.9in).
What is the sensor's ingress protection rating?
IP65.
Is a connector included?
Yes, a matching opposing connector set is included.
What is the mounting length when the sensor is fully closed?
167mm between mounting holes.
What applications is this sensor used for?
Linear displacement measurement such as throttle position, suspension travel, or actuator position.
Are longer travel versions available?
Yes, Haltech offers this sensor in additional travel lengths including 100mm, 150mm, 200mm, and 250mm as separate part numbers.
What diameter is this sensor?
1/2in (12.70mm).
Does this sensor require a specific ECU?
It outputs a standard analog signal compatible with Haltech engine management systems and other systems accepting a compatible linear position input.
Installation Instructions
- Select a mounting location that provides the required 167mm closed length and 50mm of travel clearance.
- Mount the sensor body and connecting rod to the moving and fixed points being measured.
- Connect the included opposing connector set, verifying correct wiring before power up.
- Route the wiring harness away from heat sources and secure it to prevent chafing.
- Configure the linear position input calibration in the engine management or logging software.
- Verify sensor output across the full range of travel before relying on the measurement.
