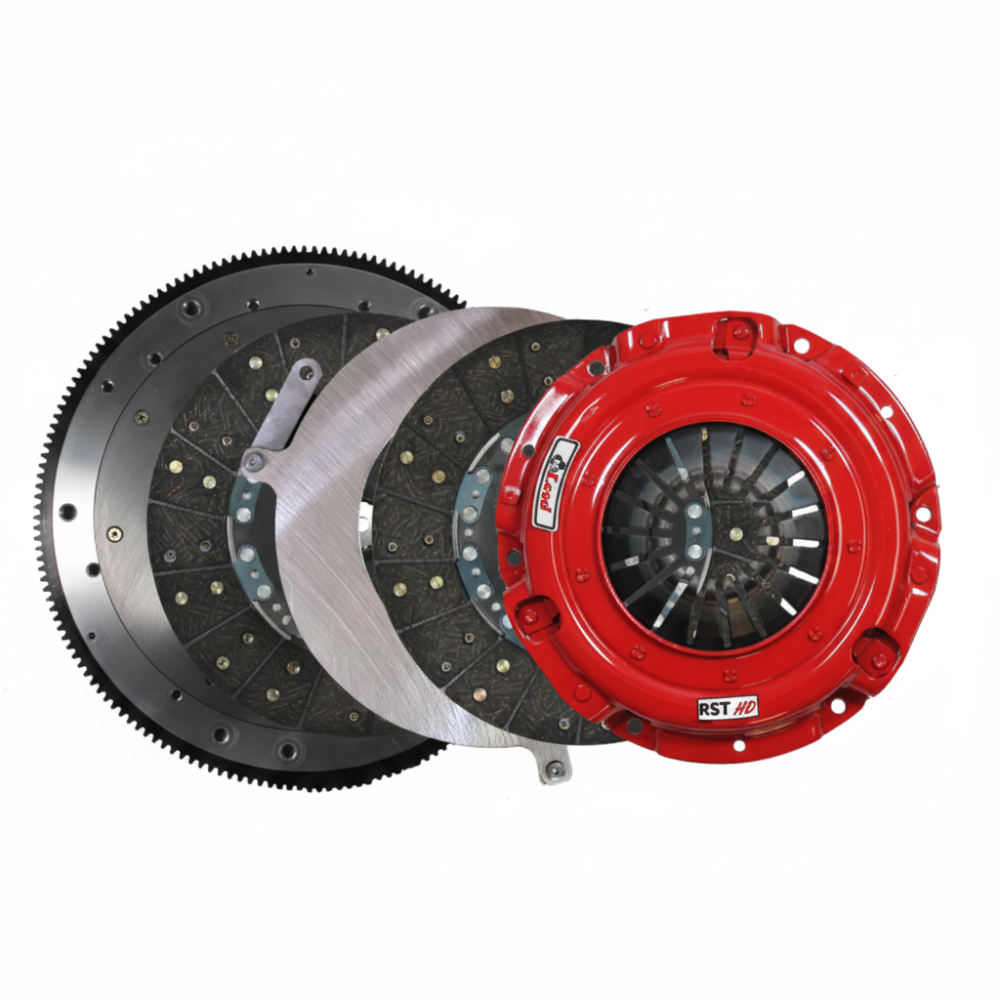

McLeod 6305507MD RST HD twin disc clutch kit
McLeod 6305507MD RST HD clutch kit component view
Click to zoom in

McLeod RST HD Twin Disc Clutch Kit Aluminum Flywheel 1997-2015 GM LS 6-Bolt

McLeod Racing
MLR6305507MD
887753894083
Clutch Kits - Multi
2 Units In Stock - Ships Next Business Day
$ 1,604.00
$ 1,604.00

McLeod Racing RST HD Twin Disc Clutch Kit

The McLeod RST HD Clutch Kit is engineered for performance enthusiasts who demand more holding power than stock while maintaining excellent street manners. Positioned between McLeod's RST and RXT twin-disc systems, the RST HD delivers an ideal balance of drivability and performance for a more spirited driving style.

Key Features

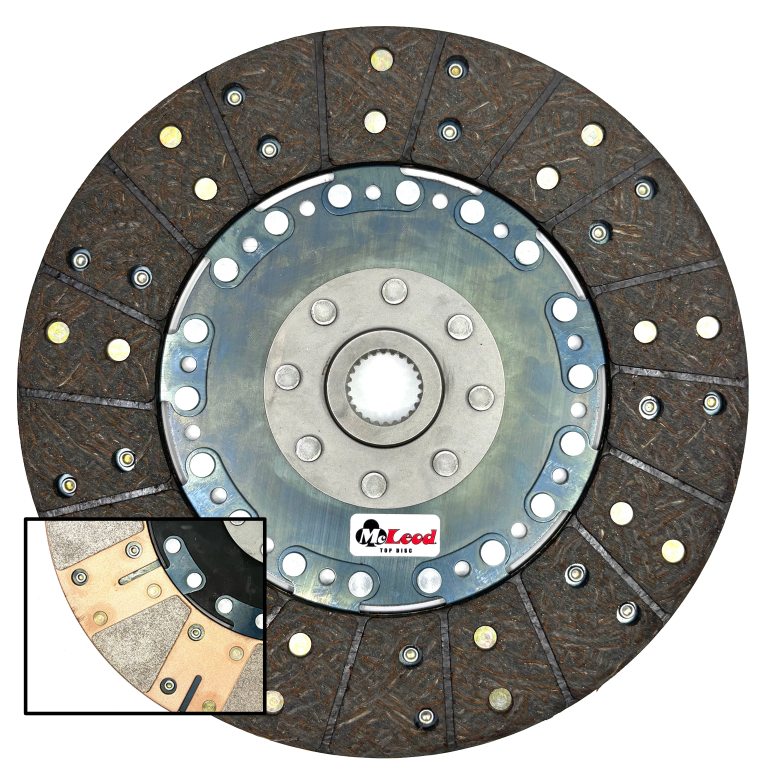

  • Hybrid Twin-Disc Design - One side of each disc uses full-face organic friction material for smooth engagement, the other uses segmented ceramic friction material for increased bite and holding power
  • Up to 950 Horsepower Rating - Built to withstand aggressive driving conditions while preserving street-friendly characteristics
  • Aluminum Flywheel - Reduces rotational mass for quicker throttle response
  • 6-Bolt Crankshaft Pattern - 168-tooth ring gear for precise fitment and engagement
  • 1-1/8 inch, 26 spline Input Shaft - Matches the transmission input shaft specification for correct fitment

Fitment

Year Make Model Submodel/Engine
1997-2013 Chevrolet Corvette Base
2001-2004, 2006-2013 Chevrolet Corvette Z06
2010-2015 Chevrolet Camaro SS
1998-2002 Chevrolet Camaro Z28
1997-2002 Pontiac Firebird Trans Am / Formula

Specifications

Detail Value
Brand McLeod Racing
Part Number 6305507MD
Series RST HD Twin Disc
Horsepower Rating Up to 950 HP
Disc Material Organic / Ceramic
Disc Quantity 2
Input Shaft Spline 1-1/8 inch, 26 spline
Ring Gear 168 tooth
Crankshaft Pattern 6-Bolt
Flywheel Material Aluminum

What's Included

  • Diaphragm pressure plate
  • Two twin-disc clutch discs
  • Floater plate
  • Aluminum flywheel
  • Installation hardware
  • Alignment tool

About McLeod Racing

McLeod Racing engineers performance clutch and flywheel systems for street, drag racing, and road course applications, offering RST, RST HD, and RXT twin-disc clutch platforms engineered for a range of torque capacities and drivability requirements.

FAQ

What horsepower can this clutch kit handle

This RST HD twin-disc clutch kit is rated to support up to 950 horsepower.

Does this clutch require a specific transmission

This kit is designed for the specific input shaft spline and crankshaft pattern listed in the specifications. Verify your transmission's input shaft spline count and diameter before ordering.

What is the difference between the organic and ceramic disc sides

Each disc uses full-face organic friction material on one side for smooth street engagement and segmented ceramic friction material on the other side for increased holding power under hard use.

Is a throwout bearing or pilot bushing included

No. The throwout bearing and pilot bushing are not included and must be purchased separately if needed.

Does this clutch require a break-in period

Yes. McLeod recommends 500 to 750 stop-and-go miles or approximately 1,500 clutch cycles of normal street driving before driving aggressively. Do not break in this clutch on a chassis dyno.

Can I adjust the clamp load or pedal feel after installation

The pressure plate is manufactured to a fixed clamp load specification. Pedal feel is determined by the diaphragm pressure plate design and cannot be field adjusted.

Will this clutch work with my factory flywheel

This kit includes a dedicated flywheel matched to this clutch and does not use the factory flywheel.

What warranty applies to this clutch kit

Contact McLeod Racing directly for current warranty terms and coverage on this clutch kit.

Installation Instructions

  1. Remove the transmission and existing clutch assembly per the vehicle's factory service manual
  2. Inspect the flywheel or install the included flywheel and confirm the friction surface is clean and free of oil or grease
  3. Install the bottom disc to the flywheel using the supplied alignment tool with the correct side facing the flywheel
  4. Install the floater plate and pressure plate, aligning the drive straps as specified in McLeod's installation instructions
  5. Tighten the pressure plate nuts in a star pattern to McLeod's specified torque values
  6. Reinstall the transmission, throwout bearing, and bellhousing
  7. Adjust clutch pedal free play per the factory service manual specification
  8. Follow McLeod's recommended break-in period of 500 to 750 stop-and-go miles before aggressive driving
