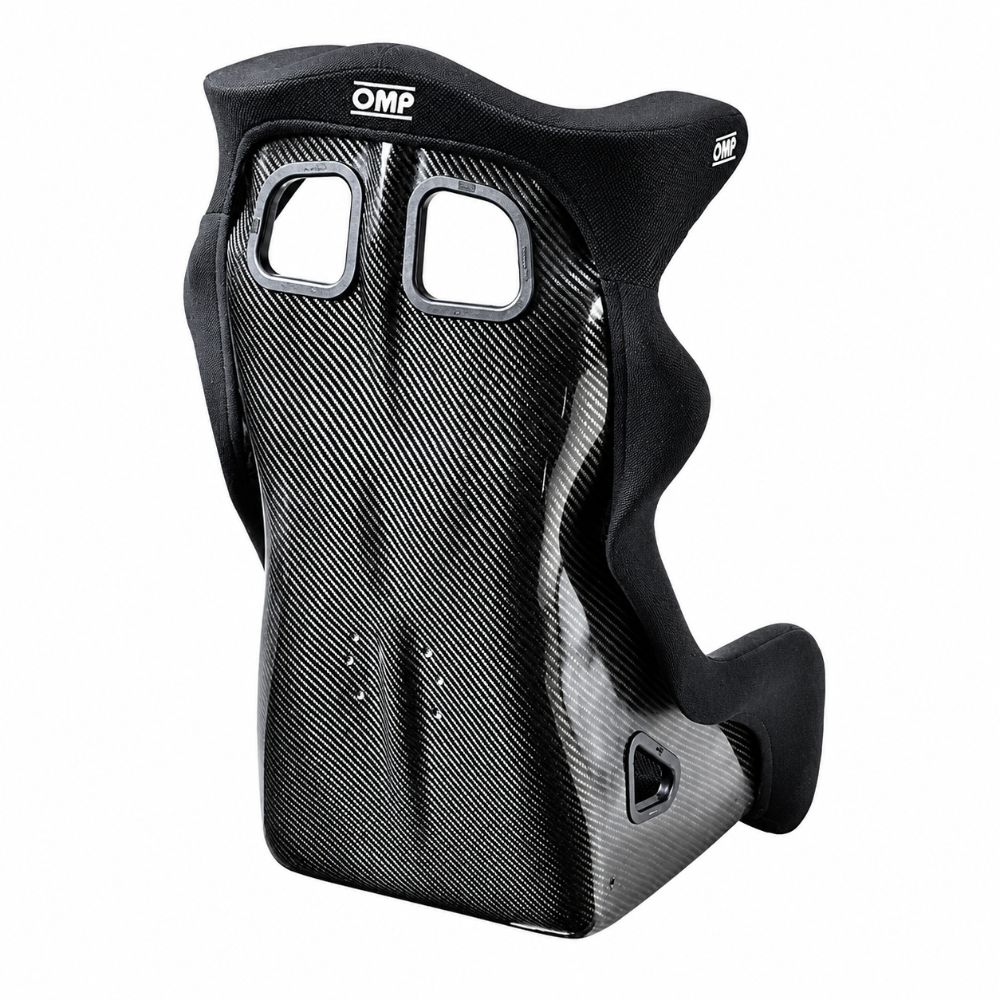

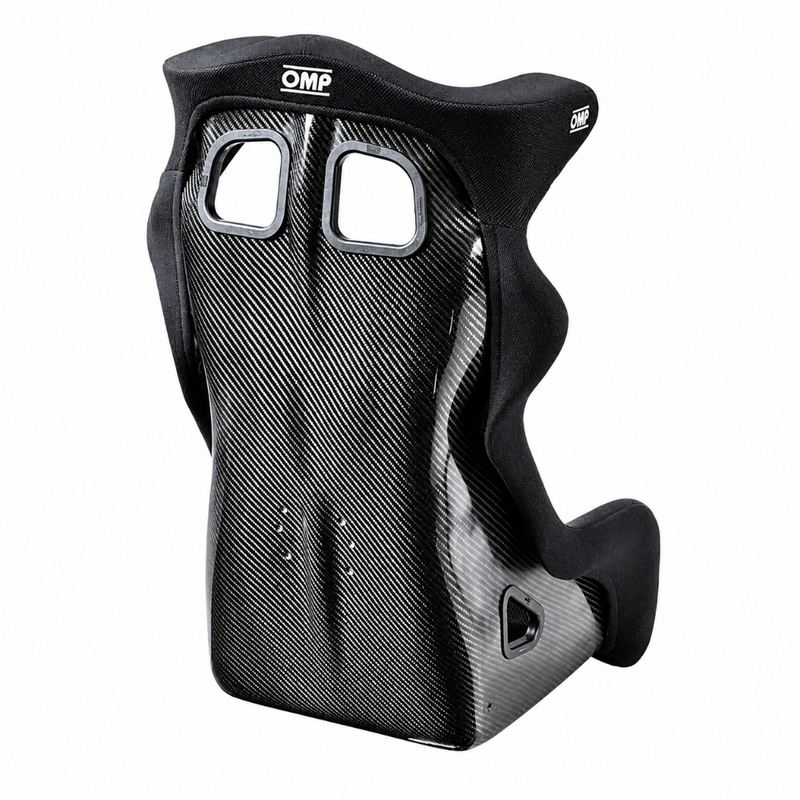

OMP HTE Series Carbon Black - Size XL

XL Carbon Fiber Racing Seat with FIA 8855-1999 Homologation for Larger Drivers

The OMP HA0-0779-B01-071 HTE-R Carbon XL Racing Seat extends the acclaimed HTE-R carbon fiber shell design into an extra-large fitment without compromising on FIA 8855-1999 homologation. Built for drivers who require additional shoulder and hip room, the HA0-0779-B01-071 delivers the same competition-grade carbon fiber construction and AIRNET breathable lining as the standard HTE-R Carbon while accommodating a broader driver profile. Side-mounted with 5 harness holes and HANS-compatible shoulder slots, this seat is designed for track days, rally, and circuit racing. Sold as a single seat.

Key Features

• Carbon fiber shell in XL sizing for drivers requiring additional shoulder and hip clearance
• FIA 8855-1999 homologated for use in sanctioned motorsport competition
• HANS-compatible shoulder harness slot design
• AIRNET breathable lining for improved ventilation during racing
• 5 harness holes compatible with 4-point, 5-point, and 6-point harness systems
• Side mounting (Type W) with 289mm inner spacing
• Increased external shoulder width for XL fitment
• Anti-counterfeiting hologram included with FIA homologation documentation
• Black finish

Specifications

What's Included

• 1x OMP HA0-0779-B01-071 HTE-R Carbon XL Racing Seat
• FIA homologation card with anti-counterfeiting hologram
• Mounting hardware not included (seat brackets sold separately)

Frequently Asked Questions

The HA0-0779-B01-071 XL version features wider external shoulder dimensions and increased hip clearance compared to the standard HTE-R Carbon. It retains the same carbon fiber construction, FIA 8855-1999 homologation, and HANS-compatible design, making it ideal for larger drivers who need additional room without sacrificing competition safety standards.

Yes. The HA0-0779-B01-071 is FIA 8855-1999 homologated and approved for use in FIA-sanctioned events. Each seat includes a homologation card and anti-counterfeiting hologram. Verify that the homologation is current before use in sanctioned competition.

The seat features 5 harness holes and accommodates 4-point, 5-point, and 6-point harness systems. The HANS-compatible shoulder slots allow use with head and neck restraint systems as required by most sanctioning bodies.

The HA0-0779-B01-071 uses side mounting (Type W) with a 289mm inner side spacing. OMP and compatible aftermarket brands offer vehicle-specific mounting brackets. Per FIA regulations, four M8 grade 8.8 bolts minimum are required for proper installation.

No. Mounting brackets and seat rail adapters are sold separately. Confirm compatibility with your vehicle's floor pan and roll cage mounting points before purchasing brackets.

The carbon fiber shell weight is approximately 10.3 kg for the XL version. FIA 8855-1999 weight figures refer to the complete seat with a 10 percent tolerance.

The HA0-0779-B01-071 is suited for circuit racing, rallying, rally cross, time attack, and track day use where FIA 8855-1999 approval is required or desired. Its XL dimensions make it particularly well-suited for GT class and endurance racing applications where driver size is a consideration.

The HA0-0779-B01-071 is a competition racing seat. Street legality depends on local regulations. Consult applicable vehicle codes and safety requirements before installing in a street-registered vehicle.

Installation Notes

1. Select vehicle-specific OMP Type W side mount brackets compatible with your roll cage or floor mounting points
2. Remove the factory seat and disconnect all airbag and occupant detection wiring per your vehicle service manual
3. Mount seat using four M8 grade 8.8 bolts minimum as required by FIA regulations
4. Route a compatible 4-point or greater harness through all five harness slots before use
5. Install and verify HANS device compatibility before use in any sanctioned event
6. Confirm that the FIA homologation card is present and the homologation is current
