SKU: 16-99-2260

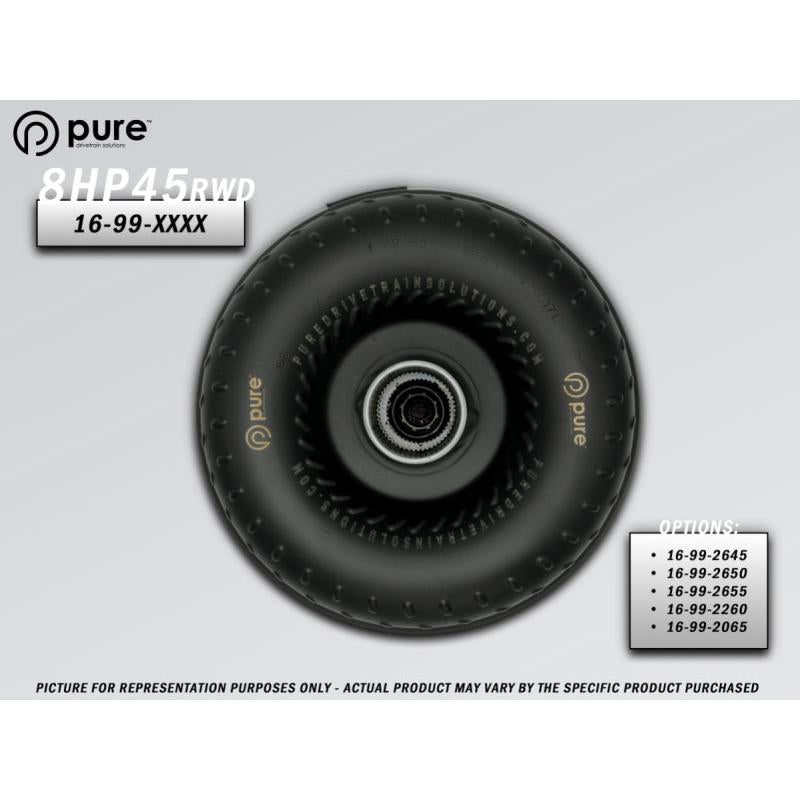

PDS 8HP45 High Performance Billet Race Torque Converter - 22/60 Stator - RWD for 2014-2023 BMW M3/M4 Dodge Hellcat Jeep Trackhawk
The PDS 8HP45 High Performance Billet Race Torque Converter with 22/60 Stator fits RWD ZF 8HP45 transmissions in BMW M3 F80 M4 F82 Dodge Challenger Charger SRT Hellcat Jeep Grand Cherokee Trackhawk. This unit provides stall speeds from 2200 RPM lockup to 6000 RPM race mode for precise launches in drag racing and track applications. Billet construction handles extreme torque while maintaining efficiency across RPM ranges.
Key Features
- Billet Front Cover and Piston: Withstands 1500+ HP and high line pressure without flexing or ballooning
- 22/60 Stator Design: Variable pitch enables 2200 RPM converter stall to 6000 RPM full race stall for tunable launch RPM
- Furnace Brazed Impeller and Turbine: Superior heat resistance and fluid coupling for consistent power transfer under load
- Multi-Disc Lockup Clutch: 9-friction disc setup grips instantly at speed reducing slip and heat buildup
- Heavy Duty Torrington Bearings: Needle bearings throughout cut friction extend converter life in high stress racing
Product Notes
- Designed for racing use verify transmission pump and input shaft compatibility before install
- Break-in required run at 2000 RPM in neutral with ATF for 20 minutes post installation
- Heavy item ships freight oversize packaging required
Installation Notes
- Professional installation recommended.
- Requires ZF 8HP45 specific flexplate and torque converter bolts
- Compatible with stock or built 8HP45 transmissions stock pump drive flats match required
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2019 | BMW | M3 | Base (F80 S55 3.0L) |
| 2014-2020 | BMW | M4 | Base/Competition (F82/F83 S55 3.0L) |
| 2018-2021 | BMW | M2 | Competition (F87 S55 3.0L) |
| 2015-2023 | Dodge | Challenger | SRT Hellcat (6.2L) |
| 2018-2023 | Dodge | Challenger | SRT Demon/Redeye (6.2L) |
| 2015-2023 | Dodge | Charger | SRT Hellcat (6.2L) |
| 2018-2023 | Dodge | Charger | SRT Demon/Redeye (6.2L) |
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk (6.2L) |
Why Choose PDS?
- Proven in NHRA and heads-up drag racing with multiple world champions
- CNC machined from 6061-T6 billet aluminum and proprietary steel alloys
- Dyno tested to 8000 RPM with balanced assembly under 0.5 gram
Frequently Asked Questions
-
Q: Does this fit my 2018 Challenger Hellcat with built 8HP45?
A: Yes fits all RWD 8HP45 variants confirm your pump stator support matches 22 spline input -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover piston furnace brazed 4340 steel impeller turbine chromoly struts -
Q: What warranty applies?
A: 1 year unlimited mileage on defects for racing use excludes abuse or improper fluid
Shipping & Handling
- Method: UPS Freight or LTL Class 70
- Availability: Special order ships within 3-7 business days
- Packaging: Oversize box 24x24x14 inches
- Weight: 42 lbs net 50 lbs shipping
