SKU: 16-87-2065

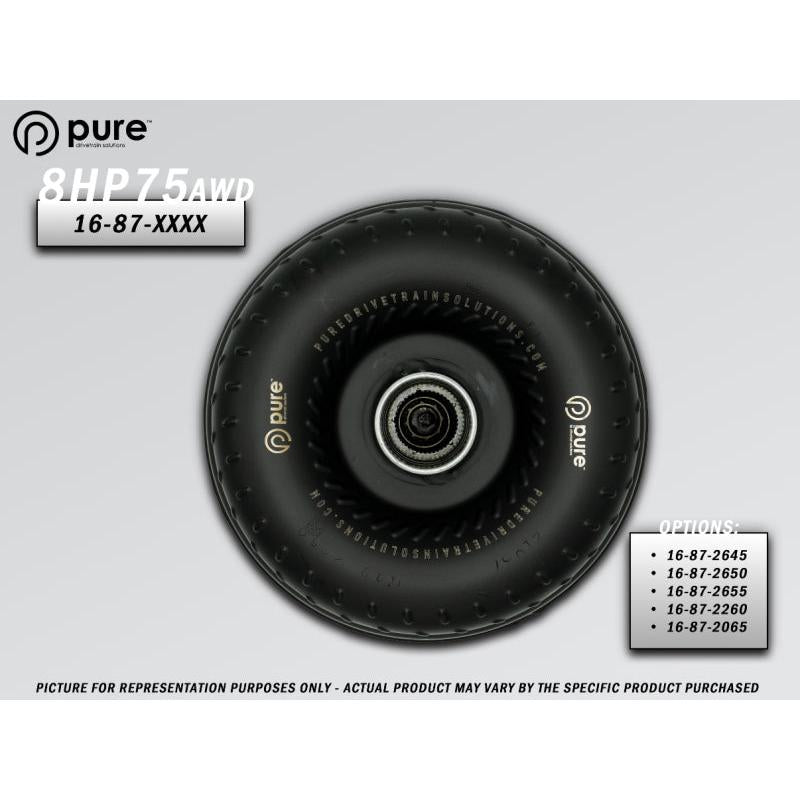

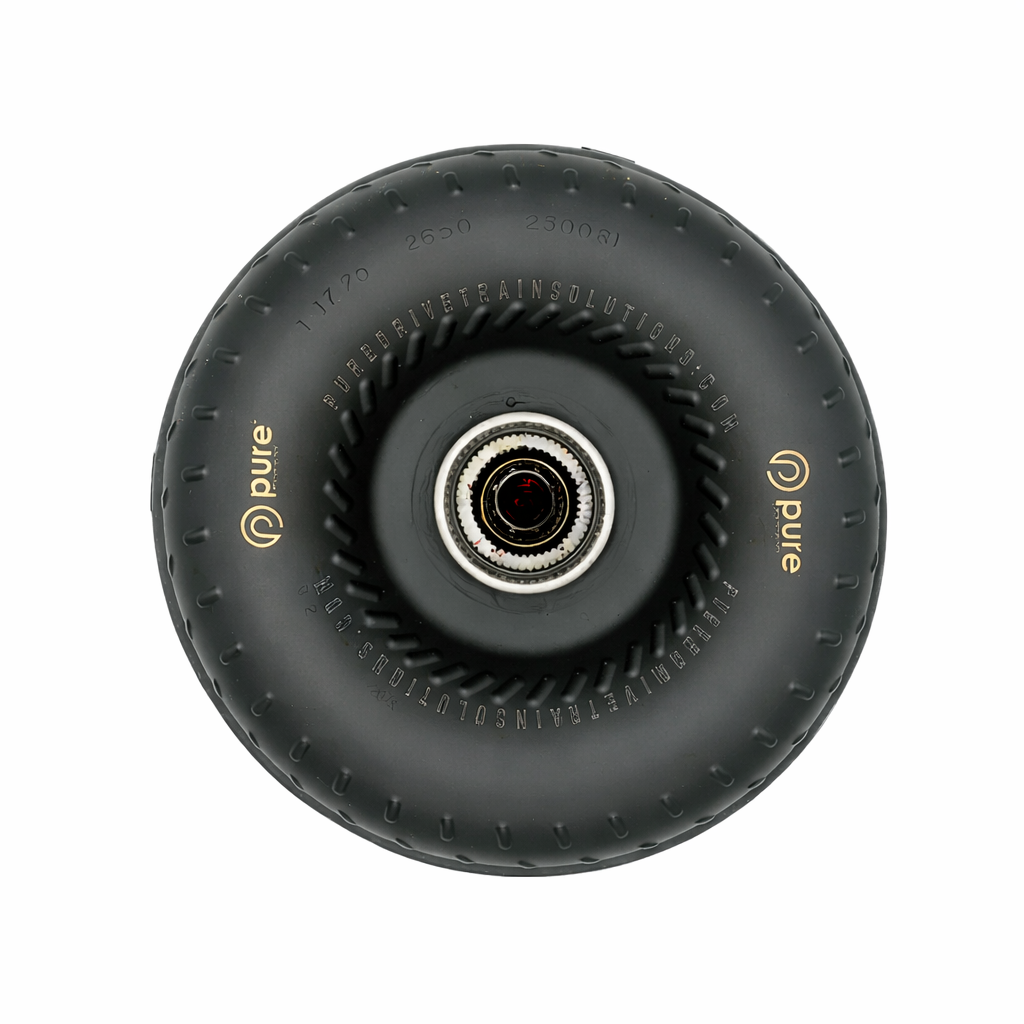

PDS 8HP75 High Performance Billet Race Torque Converter - 20/65 Stator - AWD 2011-2019 BMW X5 X6 Rolls-Royce Ghost
This PDS billet race torque converter upgrades ZF 8HP75 AWD transmissions in select BMW X5 X6 and Rolls-Royce Ghost models. The 20/65 stator raises stall speed for faster launches and better power transfer in high horsepower builds. Built with heavy duty billet components it handles extreme racing demands while maintaining smooth daily drivability.
Key Features
- Billet Aluminum Front Cover: Resists flex under 1000+ HP loads for reliable power handling in drag and circuit racing
- 20/65 High Stall Stator: Delivers 2500-3500 RPM stall for immediate throttle response and improved acceleration off the line
- Furnace Brazed Impeller and Turbine: Provides maximum strength heat resistance and fluid flow efficiency at high RPM
- Billet Lockup Piston and Clutch: Increases clamping pressure for firm lockup shifts without slippage in performance applications
- Precision Balanced Assembly: Ensures vibration free operation extends transmission life and supports tire shredding launches
Product Notes
- Direct replacement no transmission modifications required for 8HP75 AWD
- Break in with manufacturer recommended fluid and procedure for longevity
- 68 lb unit requires secure packaging for safe transport
Installation Notes
- Professional installation recommended.
- Torque converter must match flexplate bolt pattern and pilot bushing size
- Prime converter with ATF before install and verify pump alignment
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2013 | BMW | X5 | xDrive50i |
| 2012-2014 | BMW | X6 | xDrive50i |
| 2011-2014 | BMW | 550i | xDrive |
| 2012-2015 | BMW | 750i xDrive | All |
| 2012-2015 | BMW | 750Li xDrive | All |
| 2014-2018 | BMW | X5 | xDrive50i |
| 2015-2019 | BMW | X6 | xDrive50i |
| 2011-2020 | Rolls-Royce | Ghost | All |
| 2014-2020 | Rolls-Royce | Wraith | All |
Why Choose PDS?
- Specializes in ZF 8HP performance converters trusted by racers worldwide
- Hand built in USA with aerospace grade materials for race proven durability
- Engineered for perfect balance and OEM fit in high torque AWD platforms
Frequently Asked Questions
-
Q: Will this fit my 2015 BMW X6 xDrive50i with 8HP75?
A: Yes it bolts directly into all 8HP75 AWD transmissions in listed BMW X5 X6 models no adapters needed -
Q: What materials are used in construction?
A: 6061-T6 billet aluminum cover piston furnace brazed steel elements and Torrington bearings throughout -
Q: What warranty coverage applies?
A: 1 year unlimited mileage warranty against defects when installed by certified shop with proper break-in
Shipping & Handling
- Method: UPS Freight due to size and weight
- Availability: In stock - ships same or next business day
- Packaging: Heavy duty double wall box 24 x 24 x 10 inches
- Weight: 68 lbs
