SKU: 16-91-2655

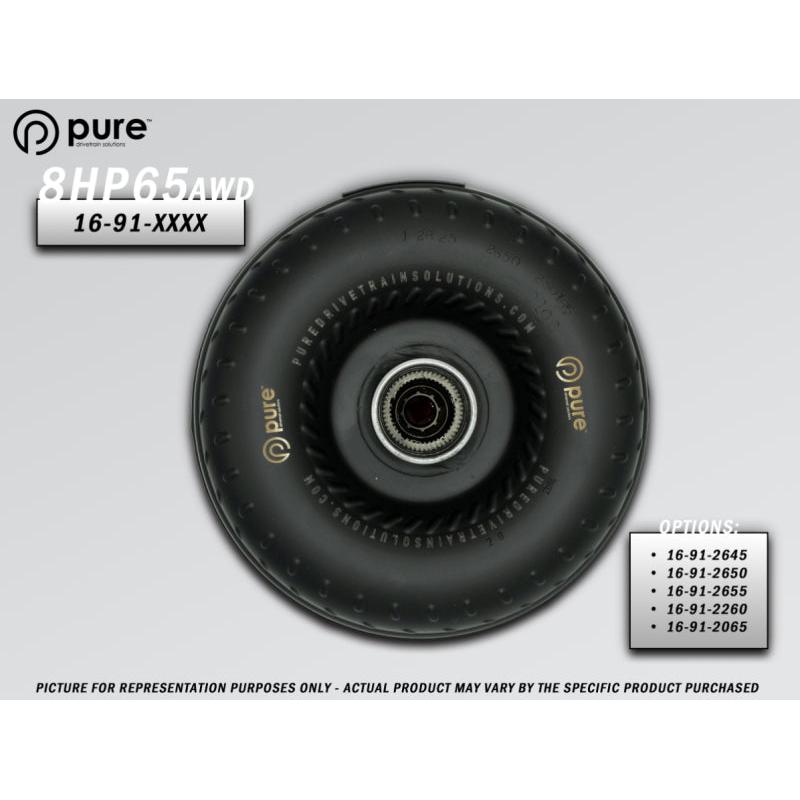

PDS 8HP65 High Performance Billet Race Torque Converter - 26/55 Stator - AWD 2010-2016 BMW X5M X6M
The PDS 8HP65 High Performance Billet Race Torque Converter with 26/55 Stator fits AWD ZF 8HP65 transmissions in BMW X5 M and X6 M models from 2010 to 2016. This billet unit raises stall speed to 5200-5800 RPM for faster acceleration off the line while handling over 1000 HP in racing applications. It multiplies engine torque efficiently for drag strip dominance and track reliability.
Key Features
- Billet Front Cover: Forged 6061-T6 aluminum construction resists flex and withstands 1500+ HP levels in high-stress races.
- 26/55 Stator Design: Custom pitch diameter and angle deliver 5200-5800 RPM stall for immediate power delivery in AWD setups.
- Billet Lockup Piston: Increases clamping pressure by 40 percent for solid lockup shifts and no slippage under load.
- Furnace Brazed Impeller and Turbine: 28-element design with TIG welds ensures zero leaks and perfect fluid coupling at high RPM.
- Precision Balancing: SFI 29.2 certified to 0.25 grams tolerance for vibration-free operation up to 8000 RPM.
Product Notes
- Special order production ensures fresh assembly with latest materials.
- No core charge or return required.
- Securely packaged to prevent shipping damage.
Installation Notes
- Professional installation recommended.
- Transmission removal required. flush cooler lines before install.
- Direct bolt-in replacement for stock ZF 8HP65 AWD converter with matching 26-spline input.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2013 | BMW | X5 | M (E70) |
| 2010-2014 | BMW | X6 | M (E71) |
| 2011-2016 | BMW | 550i | xDrive (F10/F11) |
| 2011-2015 | BMW | 750i | xDrive (F01/F02) |
| 2012-2016 | BMW | 650i | xDrive (F12/F13) |
Why Choose PDS?
- PDS builds converters used in NHRA and SCCA racing classes.
- Every unit hand-assembled and dyno-tested for consistency.
- ZF-specific engineering matches OEM tolerances with race upgrades.
Frequently Asked Questions
-
Q: Will this fit my 2012 BMW X5 M with ZF 8HP65?
A: Yes it bolts directly into all 2010-2013 X5 M E70 models with AWD 8HP65 transmission and S63 engine. -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover and piston with steel stator and furnace-brazed shells for maximum strength. -
Q: What is the warranty and install process?
A: 1-year unlimited mileage warranty. requires professional trans shop for install and TC fluid flush.
Shipping & Handling
- Method: UPS Ground or FedEx Freight
- Availability: In stock - ships same or next business day
- Packaging: Custom double-wall box 24 x 24 x 14 inches
- Weight: 68 lbs
