Adjustable Front Suspension Control

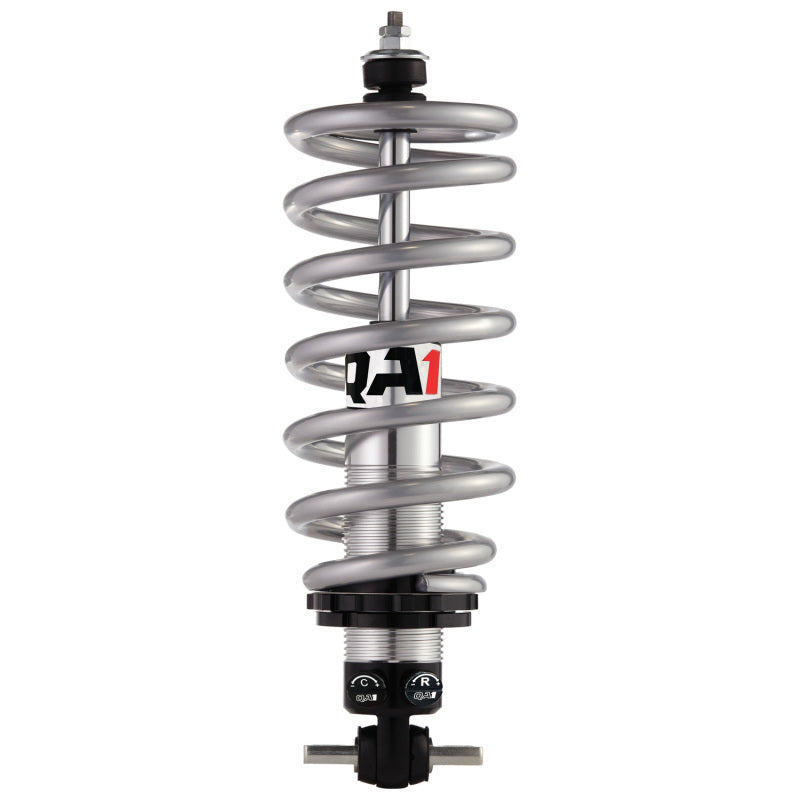

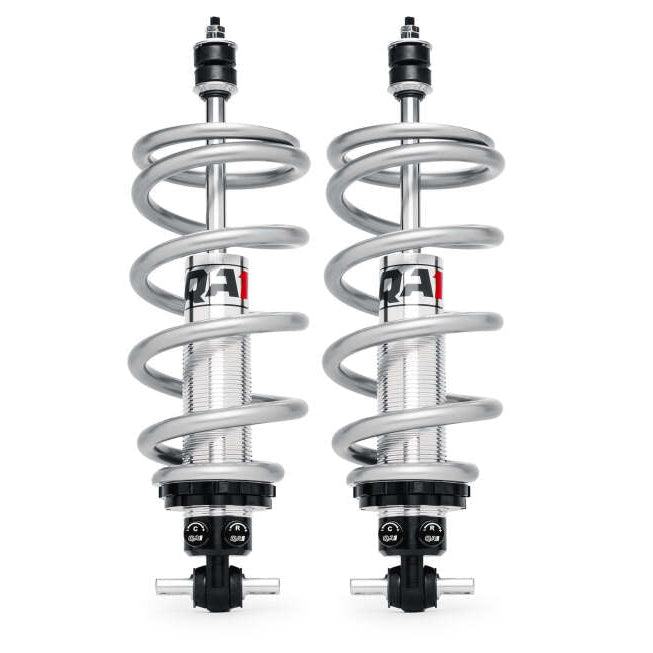

The GD507-10650C QA1 GM Pro Front Coil-Over System combines double-adjustable shock control with a 650 lb/in spring rate for adjustable ride height and suspension tuning.
Designed for listed GM and Ford full size applications, this front coil-over system uses a fully threaded shock body and lightweight high-travel spring design. The GD507-10650C is intended for street performance, street rod, autocross, road racing and drag racing applications where ride height and valving adjustment are required.
Key Features
- Double-adjustable front coil-over shock system
- 650 lb/in spring rate
- Tapered flat large spring configuration

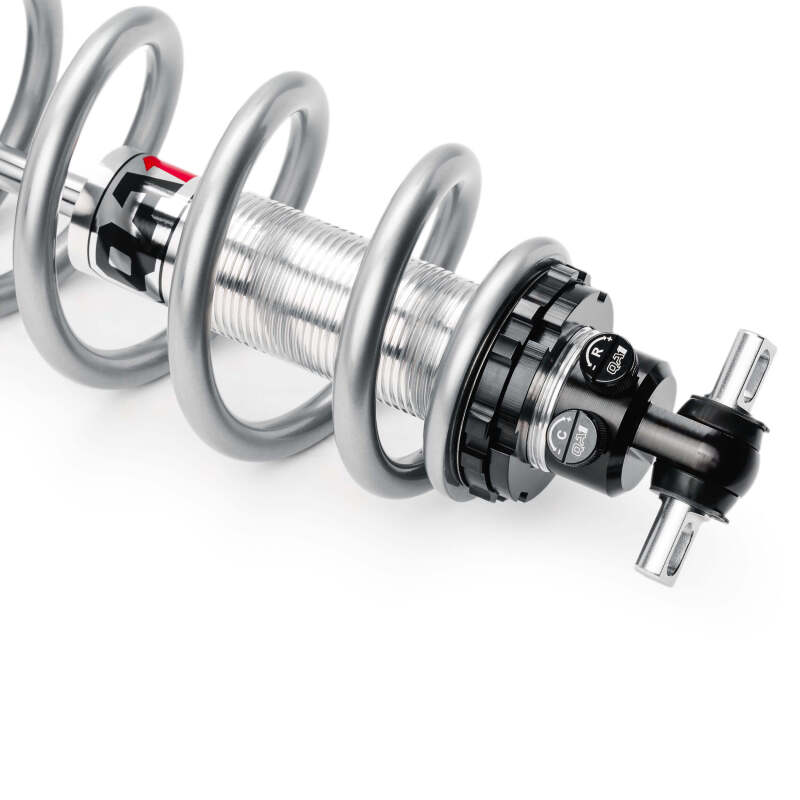

- Fully threaded shock body for ride height adjustment

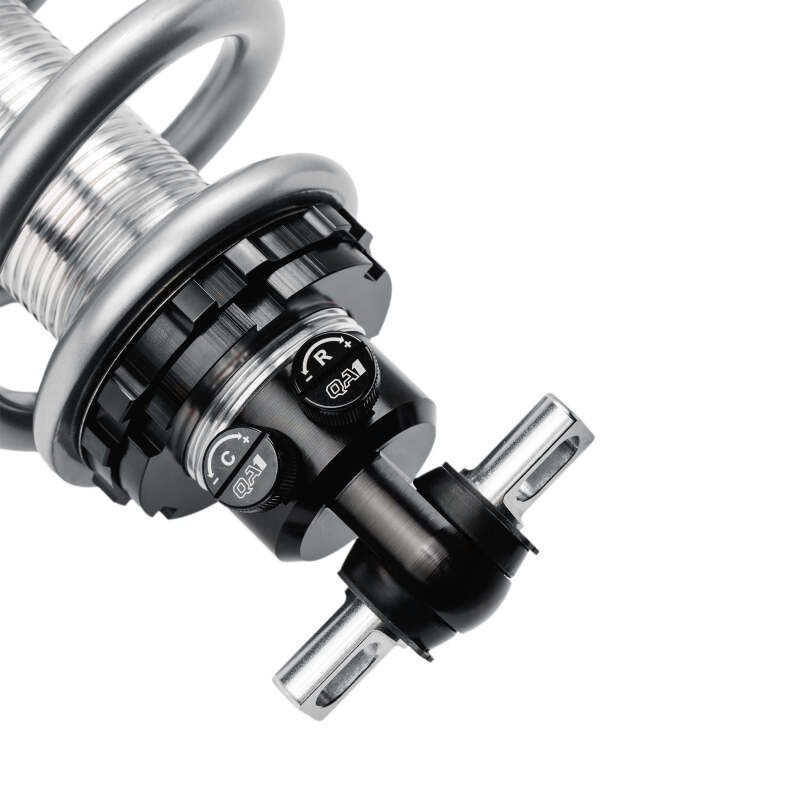

- Independent compression and rebound adjustment
- Lightweight billet aluminum coil-over shocks
- High-travel spring design helps increase available suspension travel
- Serviceable and rebuildable by QA1 authorized service centers
- Made in the USA
- Sold as a front pair
Fitment
| Application | Restrictions |
|---|---|
| 1971-1996 Chevrolet Impala | Front application. Verify exact model, suspension configuration and installation requirements before ordering. |
| 1971-1996 GM Full Size | Includes listed full size GM applications. Exact vehicle model and submodel are not specified. |
| Buick, Oldsmobile and Pontiac full size applications | Listed application group. Verify exact year, model and submodel before ordering. |
| Ford Full Size and Galaxie | Listed application group. Exact years, models and submodels are not specified. |
Specifications
| Detail | Value |
|---|---|
| Model | GD507-10650C |
| Manufacturer | QA1 |
| Application | Front |
| Adjustment | Double adjustable |
| Spring rate | 650 lb/in |
| Spring configuration | Tapered flat large |
| Shock dimensions | 9.63/14.5 compression and extension dimensions as listed |
| Ride height | Adjustable with fully threaded shock body |
| Package format | Front pair |
What's Included
- GD507-10650C front QA1 Pro coil-over system sold as a pair
About QA1
QA1 develops adjustable suspension components for street performance, drag racing, autocross, road racing and street rod applications. Its Pro Coil systems are designed to provide ride height and valving adjustment with serviceable suspension components.
FAQ
What is the GD507-10650C?It is a QA1 GM Pro front coil-over system with double-adjustable shocks, tapered flat large springs and a 650 lb/in spring rate.
What vehicles does this coil-over system fit?It is listed for Chevrolet Impala, GM full size, Buick, Oldsmobile, Pontiac and Ford full size and Galaxie applications. Exact vehicle details should be verified before ordering.
Is this a front or rear system?This is a front coil-over system.
What spring rate does the system use?The system uses a 650 lb/in spring rate.
Are the shocks adjustable?Yes. The shocks are double adjustable with compression and rebound control.
Can ride height be adjusted?Yes. The fully threaded shock body allows ride height adjustment.
How many systems are included?The system is listed as a front pair.
Can the components be rebuilt?QA1 states that its Pro Coil components are serviceable and rebuildable by authorized service centers.
Installation Instructions
- Confirm GD507-10650C matches the listed application and configuration before disassembly.
- Measure the vehicle ride height from the ground to the center of the wheel well before disassembly.
- Park the vehicle on a stable, level surface and follow appropriate lifting and support procedures.
- Unbolt the front upper shock mounts from inside the engine bay.
- Raise and support the vehicle by the frame with suitable jack stands, then remove the front wheels.
- Remove the sway-bar end links.
- Unbolt the lower shock mounting bolts and remove the original shocks.
- Remove the cotter pin from the lower ball joint and loosen the castle nut without removing it.
- Separate the lower ball joint from the spindle with a suitable ball-joint separator.
- Use a spring compressor to compress the original coil spring and remove spring tension from the lower control arm.
- With spring tension removed, remove the ball-joint nut and the original spring.
- For applicable GM cars, remove the welded nuts or U-clips used for the original shock mount on the factory control arms.
- Install the QA1 front coil-over system using the vehicle-specific mounting locations and hardware requirements.
- Lubricate the shock threads with anti-seize before using the spanner wrench to adjust the spring-seat adjuster.
- Set an initial ride height, then reinstall the sway-bar end links and front wheels.
- Lower the vehicle and bounce the suspension to help seat the springs.
- Recheck ride height and make additional adjustments as needed.
- After setting ride height, tighten the lock nut against the spring-seat adjuster.
- Have a reputable alignment shop perform an alignment after installation and ride height changes.
