Simple Latch and Link Safety for Junior Dragster and Quarter Midget Competitors

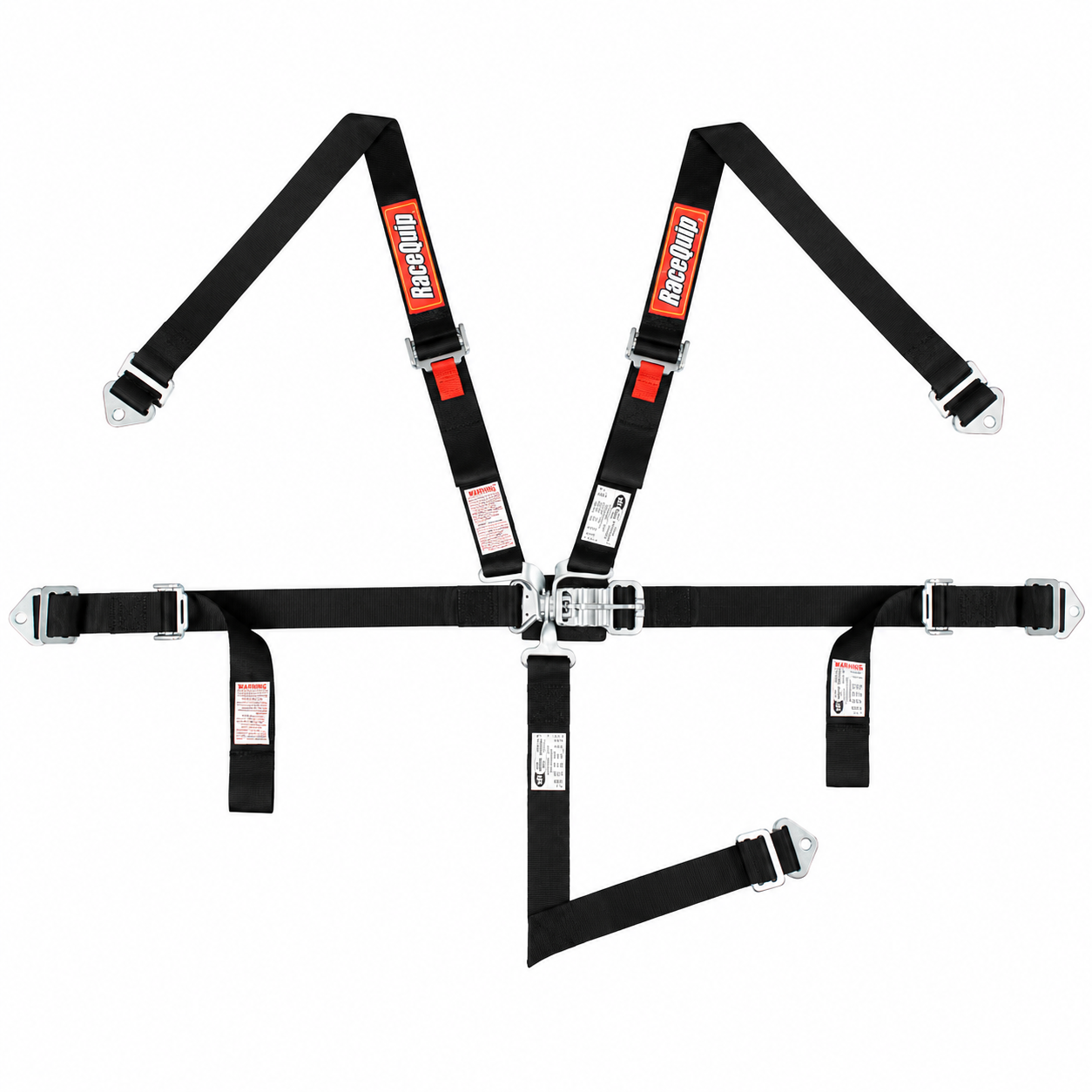

The RaceQuip 709009 is a complete 5-point latch and link racing harness designed for Jr Dragster and Quarter Midget junior drivers. The latch and link buckle system is straightforward to operate, making it easy for young drivers to buckle in and for parents or crew to assist. SFI 16.2 certified with 2-inch polyester webbing and pull-up lap belt design sized for junior competitors.
Key Features
- SFI 16.2 certified for Jr Dragster and Quarter Midget
- Latch and link buckle simple to operate, easy to assist from outside the vehicle
- 2-inch premium polyester webbing throughout
- Pull-up lap belt design sized for junior drivers
- Drop-forged steel hardware, bolt-in or wrap-around mounting
- NOT DOT or FMVSS certified racing use only
Product Specifications
| Specification | Detail |
|---|---|
| MPN | 709009 |
| Brand | RaceQuip |
| Points | 5-point |
| Buckle Type | Latch and Link |
| SFI Rating | 16.2 |
| Webbing Width | 2 inches |
| Lap Belt Style | Pull-up |
| Application | Jr Dragster, Quarter Midget |
| Color | Black |
| UPC | Verify with supplier |
What Is Included
- 2x junior shoulder belts
- 2x lap belt sections
- 1x anti-submarine strap
- Latch and link center buckle
- SFI 16.2 tags affixed
Frequently Asked Questions
Q: What is the difference between a latch and link harness and a camlock harness?
A: A latch and link harness connects each belt end individually to a central buckle, with each point latching separately. A camlock connects all points to a central dial that releases everything simultaneously with one twist. Latch and link systems are generally more affordable and easier for crew to assist with from outside the vehicle.
Q: Is the 709009 legal for NHRA Jr Dragster?
A: The 709009 carries SFI 16.2 certification. Most NHRA Jr Dragster rules require SFI 16.2 or better. Always check your current rulebook for exact requirements.
Q: Can this harness be used in a full-size race car?
A: No. The 709009 is a junior-sized harness rated for Jr Dragster and Quarter Midget use. It is not for adult drivers in full-size race cars.
Q: What is the SFI expiration on this harness?
A: SFI 16.2 certifications are typically valid for two years from manufacture. Check the SFI tag affixed to the harness for the expiration date.
Q: What mounting hardware is included?
A: Drop-forged steel hardware ends for wrap-around or bolt-in mounting are included. Eyebolts for bolt-in floor mounting are sold separately.
Q: What is the warranty?
A: RaceQuip covers the 709009 under their standard limited manufacturer warranty against defects in materials and workmanship.
Q: How do I clean and inspect the harness?
A: Wipe with mild soap solution and air dry. Inspect all webbing for cuts, abrasion, or chemical contamination before each event. Replace if any damage is found.
Q: Is a roll cage required to use this harness?
A: Yes. Racing harnesses are designed to be mounted to a roll cage or approved harness bar. Do not install in a vehicle without proper chassis reinforcement.
How to Install and Adjust
- Mount shoulder belt anchors to the roll cage behind and at or slightly below driver shoulder height.
- Mount lap belt anchors at 45 degrees below and behind the seat.
- Attach anti-submarine strap below seat pointing straight down.
- Seat the driver and latch each belt end into the central buckle.
- Tighten lap belts first by pulling upward.
- Adjust shoulder belts flat across the shoulders.
- Snug anti-submarine strap.
