Raxiom RAX460947 sequential tail light kit for 2005-2009 Ford Mustang S197
Plug-and-play Raxiom tail light kit for 2005-2009 Ford Mustang factory wiring
RAX460947 Raxiom Sequential Tail Light Kit 2005-2009 Ford Mustang
Click to zoom in

Raxiom 05-09 Ford Mustang Sequential Tail Light Kit- Plug-and-Play

Raxiom
RAX460947
Tail Lights
3 Units In Stock - Ships Next Business Day
$ 79.99
$ 79.99

Plug-and-Play Sequential Tail Light Kit for 2005-2009 Ford Mustang

The Raxiom RAX460947 sequential tail light kit adds a sequential LED turn signal sweep to the 2005-2009 Ford Mustang without replacing the factory tail light lenses or housings. The RAX460947 installs behind the existing tail light assemblies and interfaces with the factory wiring to convert the standard turn signal flash into a sequential sweep that lights the tail light segments progressively from inboard to outboard. Installation is plug-and-play using the factory wiring harness connectors on the 2005-2009 Mustang with no permanent modification required. The RAX460947 gives the S197 Mustang the sequential turn signal effect popularized on higher-end performance vehicles.

Key Features

  • Sequential tail light conversion kit for 2005-2009 Ford Mustang S197
  • Converts factory turn signal flash to a progressive sequential LED sweep
  • Plug-and-play installation using factory Mustang tail light wiring connectors
  • No permanent wiring modifications or tail light lens/housing replacement required
  • Retains factory tail light assemblies and all original light functions
  • Compatible with the standard and GT trim Mustang factory tail light configuration

Fitment

Year Range Make Model Trim
2005-2009 Ford Mustang V6, GT, GT500, Bullitt, Shelby GT

Specifications

Detail Value
MPN RAX460947
Brand Raxiom
Product Type Sequential Tail Light Kit
Turn Signal Type Sequential LED Sweep
Installation Plug-and-Play
Requires Lens Replacement No
Fitment 2005-2009 Ford Mustang S197
UPC N/A

What's Included

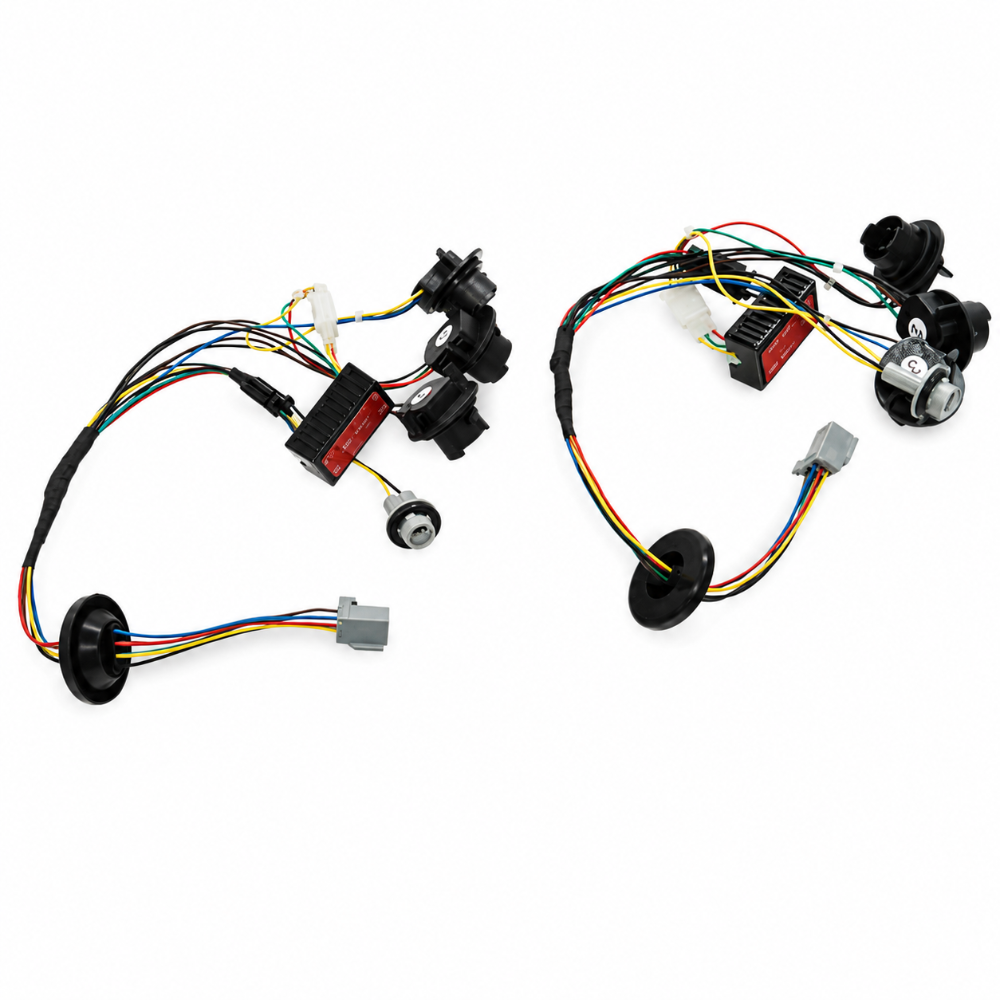

  • Raxiom RAX460947 Sequential Tail Light Controller Module

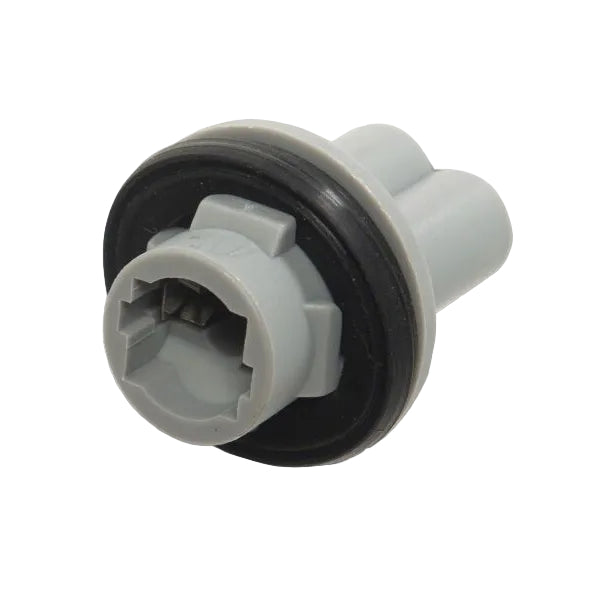

  • Plug-and-play wiring harness with factory-style connectors
  • Hardware kit
  • Installation instructions

Frequently Asked Questions

What years of Ford Mustang does the RAX460947 fit?

The RAX460947 fits the 2005-2009 Ford Mustang S197 generation including V6, GT, GT500, Bullitt, and Shelby GT trims. It does not fit the 2010 and later Mustang, which uses a different tail light configuration.

Do I need to replace the factory tail lights to install the RAX460947?

No. The RAX460947 installs behind the existing factory tail light assemblies on the 2005-2009 Mustang. You keep the factory lenses and housings. The kit intercepts the turn signal circuit and converts the standard flash to a sequential sweep without replacing any tail light components.

What does sequential turn signal look like on the 2005-2009 Mustang?

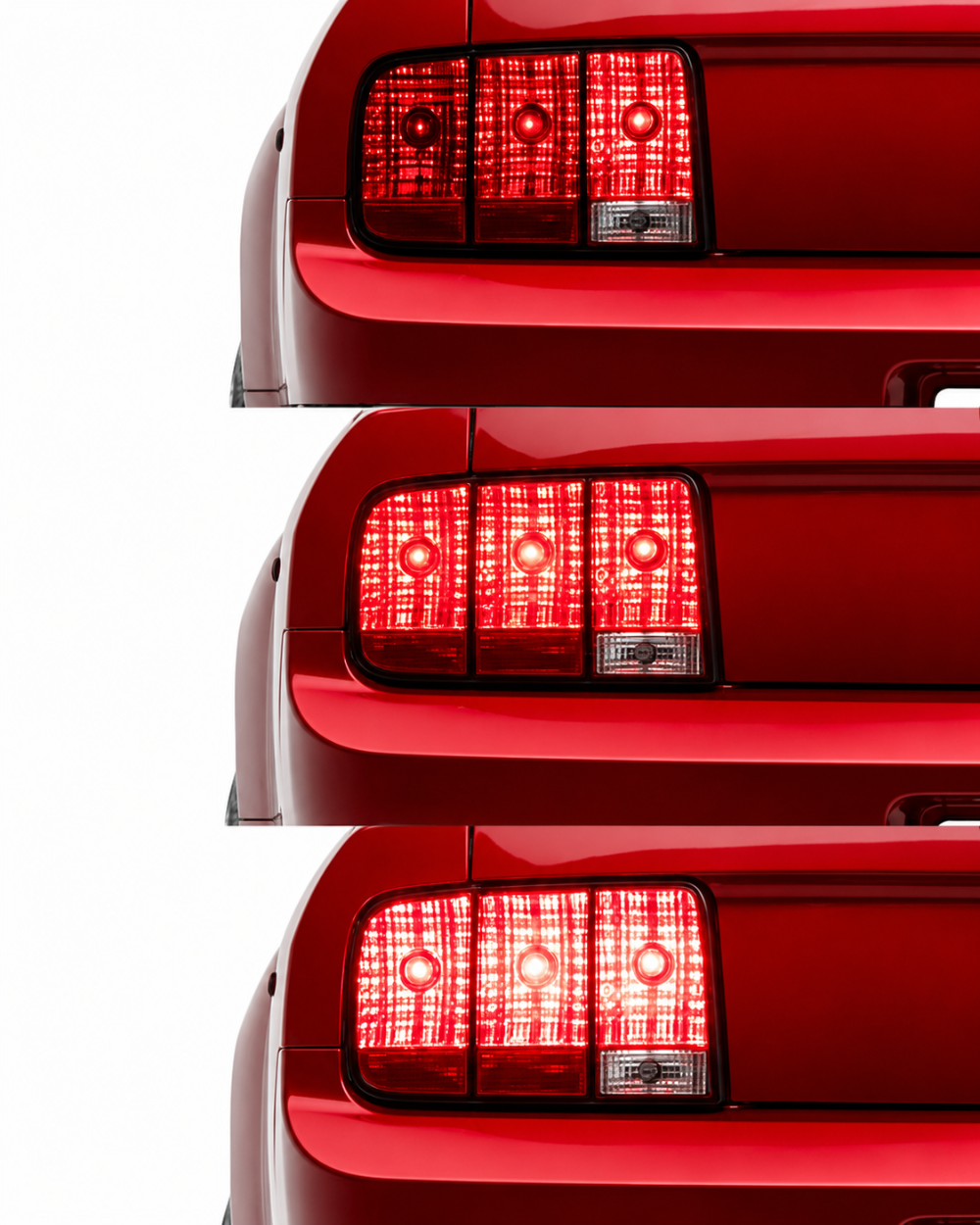

When the turn signal is activated, the tail light segments on that side light up progressively from the center of the vehicle outward in a sweeping motion, rather than the entire tail light face flashing simultaneously. The sequential effect mirrors what was offered on vintage Mustang models and certain modern performance vehicles.

Is the RAX460947 truly plug-and-play on the 2005-2009 Mustang?

Yes. The RAX460947 uses connectors designed to plug into the existing factory tail light wiring on the 2005-2009 Mustang. No cutting or permanent modification is required. The kit can be removed and the factory wiring restored to stock.

Will the RAX460947 affect hazard light function on the Mustang?

The RAX460947 is designed to integrate with the factory turn signal and hazard light circuits. Both turn signals and hazard lights typically continue to operate normally. Confirm full function after installation and before driving.

Will the RAX460947 trigger a hyper-flash or fault code on the 2005-2009 Mustang?

The RAX460947 is designed to work within the factory electrical parameters of the 2005-2009 Mustang to avoid hyper-flash or fault codes. If any issue occurs after installation, refer to the Raxiom installation instructions or contact Raxiom support.

Can the RAX460947 be used with aftermarket tail lights on the 2005-2009 Mustang?

The RAX460947 is designed and tested for use with the factory tail light assemblies on the 2005-2009 Mustang. Compatibility with specific aftermarket tail light assemblies depends on the wiring configuration of those units. Verify compatibility with the aftermarket tail light manufacturer before ordering.

Does the RAX460947 work on Mustang models with the Shelby GT500 tail lights?

The RAX460947 is compatible with standard 2005-2009 S197 Mustang tail light configurations. The GT500 uses the same S197 platform tail light mounting. Confirm exact compatibility with Raxiom if the vehicle has non-standard or dealer-modified tail light wiring.

Installation Notes

  1. Gain access to the tail light assemblies by removing any trunk liner panels covering the rear of the tail lights on both sides.
  2. Locate the factory tail light wiring harness connectors behind each tail light assembly.
  3. Unplug the factory connectors and route the RAX460947 wiring harness in-line between the factory plug and the tail light assembly connector on each side.
  4. Secure the controller module in the trunk area away from moving parts and moisture.
  5. Reinstall any removed trim panels and test all tail light functions: running lights, brake lights, sequential turn signals, and hazard lights before driving.
