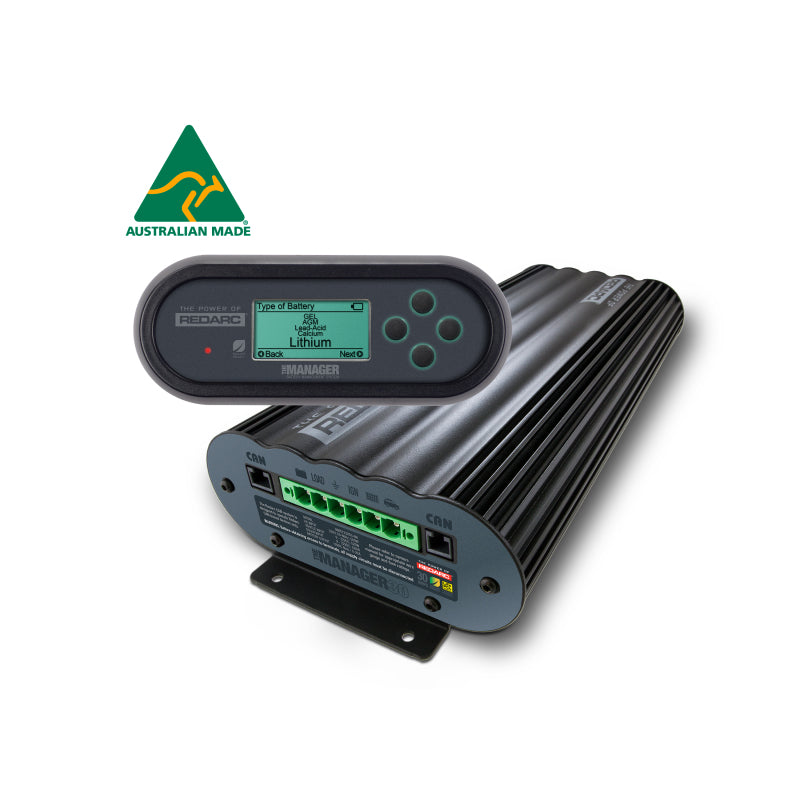

Manage auxiliary-battery charging from shore power, vehicle power or solar through one system. Manager30 combines charging and battery monitoring, automatically selecting available charging sources and prioritizing solar energy when possible.
Key Features
- Includes a remote battery monitor, making it market-leading.
- Boasting 30 amps of power output, The Manager30 is a state-of-the-art battery management system designed to charge and maintain auxiliary batteries by incorporating AC, DC and solar inputs.
- It's a 110 volt AC shore mains power charger.
Fitment
For compatible 12V house-battery installations using lead-acid, gel, calcium, AGM or suitably protected LiFePO4 batteries. Not for engine-bay mounting.
Specifications
| Part Number | BMS1230S3-NA |
|---|---|
| Continuous Charge Rating | 30A |
| AC Input | 110-120V AC, 50-60Hz |
| DC / Solar Input Range | 9-30V DC |
| House Battery Capacity | 40-800Ah |
| Nominal Battery Output | 12V |
| Dimensions | 445 x 186 x 78mm |
| GTIN | 9338628005956 |
What's Included
Main unit, battery sensor, remote monitor, output connector, 5m CANBus cable and power cable.
Brand Information
REDARC builds integrated charging and monitoring systems.
Related Parts
Frequently Asked Questions
Do I need a separate solar regulator?
The Manager30 includes MPPT regulation. Solar panels must meet its input limits.
Does this charge a 24V house battery?
No. The specified house-battery output is 12V.
Installation Instructions
Use a qualified installer and the S3-NA manual for mounting, fusing, wiring and battery-profile configuration. Required output protection is not supplied.
