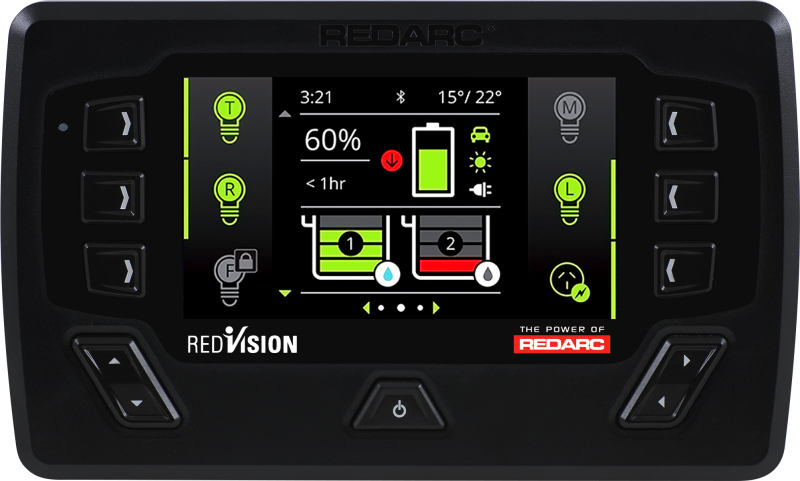

Replace an existing RedVision screen or add another control point to a compatible system. This compact display brings supported battery information and onboard-device controls together, with available functions determined by the connected equipment.
Fitment
For compatible REDARC RedVision systems. The manufacturer specifies BMS1230S3-NA for a Manager30 display retrofit. This is not a standalone battery charger or distribution system.
Specifications
| Part Number | DISP4300-RC |
|---|---|
| Screen Size | 4.3 inches |
| Dimensions | 178 x 108 x 26mm |
| Weight | 300g |
| Operating Temperature | -4 to 167 degrees F |
| GTIN | 9338628005826 |
What's Included
Display, mounting spacer, fascia, 15-inch black RJ45 R-Bus cable and R-Bus terminating resistor.
Brand Information
REDARC develops integrated vehicle power-management equipment.
Related Parts
Frequently Asked Questions
Will the screen alone add water-tank monitoring?
No. Displayed information depends on the compatible equipment and sensors installed in your system.
Do I need this when buying a complete TVMSKit?
The manufacturer lists the display as already included in its RedVision/TVMSKit packages. Check your exact package before ordering a second screen.
Installation Instructions
Follow the RedVision system documentation for mounting, R-Bus connections and configuration. Configure the display for the devices actually connected.
