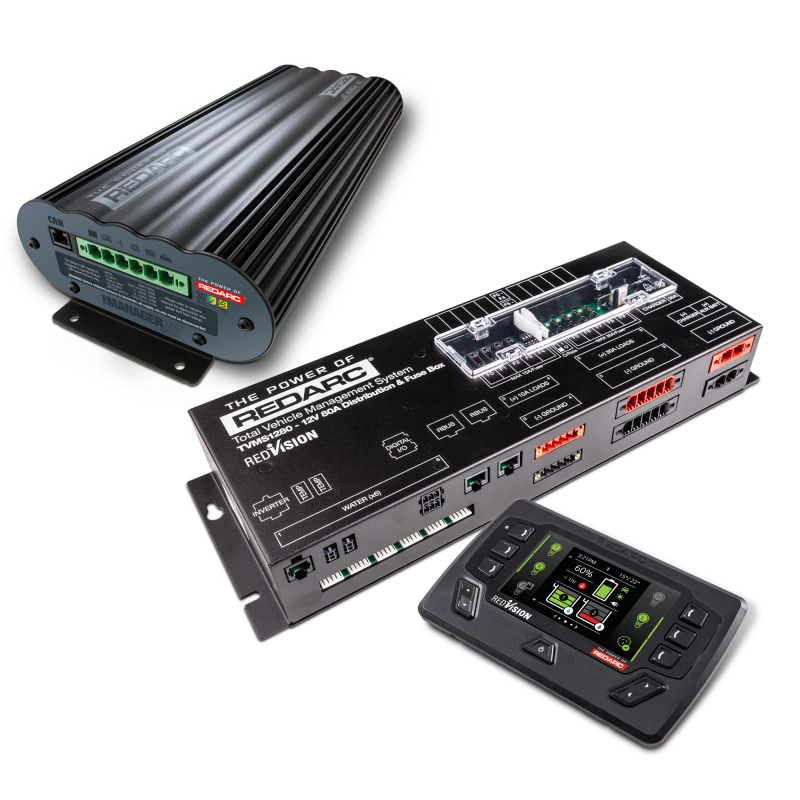

Bring accessory control and auxiliary-battery management together in a camper or RV. The Prime RedVision system combines Manager30 charging with a distribution unit and display, giving you control of connected equipment and visibility of battery status.
Key Features
- This kit includes The Manager30 main unit, REDARC's award-winning 30amp battery management system for charging auxiliary batteries used in recreational automotive and marine applications.

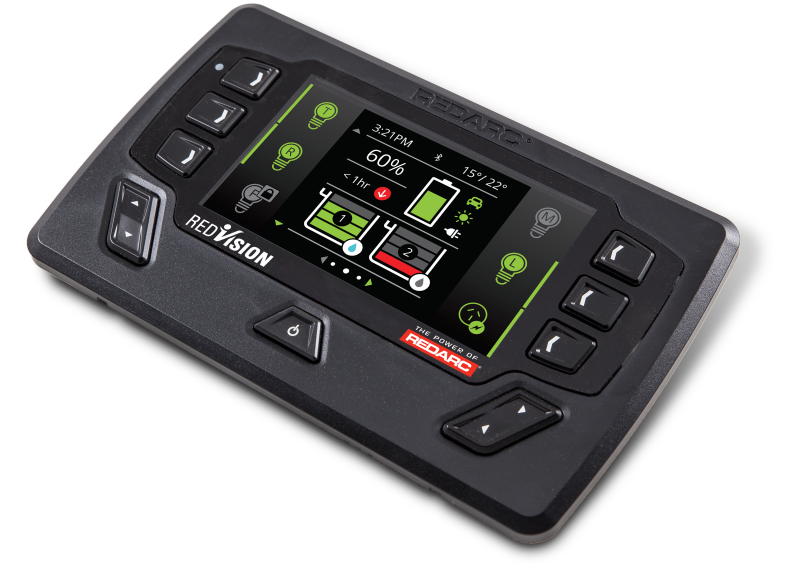

- REDARC's RedVision Kit (TVMSKIT05-NA) features the award winning RedVision TVMS and iconic Manager30 Battery Management System to provide full control and monitoring of on-board devices and your state of charge.
- RedVision allows you to control multiple on-board devices, such as turning lights, inverter, water pumps and other loads such as televisions, electric steps and fridges on or off.
Fitment
For compatible 12V cabin, canopy or trailer installations. Not for engine-bay mounting. Tank monitoring uses compatible conductive/probe sensors.
Specifications
| Part Number | TVMSKIT05-NA |
|---|---|
| System Voltage | 12V |
| Maximum Combined Distribution Current | 80A |
| Accessory Outputs | 5 x 30A and 5 x 10A |
| Tank Sensor Inputs | 6 |
| Temperature Inputs | 2 |
| Solar Input | 9-30V |
| GTIN | 9338628006304 |
What's Included
Prime distribution system, RedVision display and Manager30 battery manager. Batteries, installation cables and fuses must be supplied for the build.
Brand Information
REDARC combines charging and accessory control in integrated vehicle systems.
Related Parts
Frequently Asked Questions
Can all outputs run at their individual maximum together?
No. Combined load must remain within the 80A total limit as well as each channel rating.
Can Prime dim lights or reset fuses from the app?
No. Those features are not provided by Prime.
Installation Instructions
Use a qualified installer to size wiring and protection, connect compatible sensors, and configure channel loads according to the Prime and Manager30 documentation.
