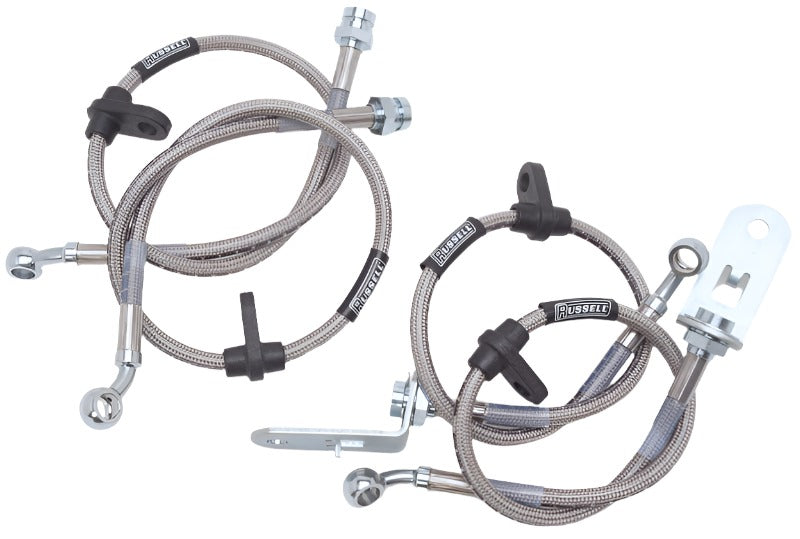

The Russell 685500 90-97 Mazda Miata MX-5 Brake Line Kit is a vehicle-specific brake line kits configuration for Mazda Miata.
Key Features
- Russell's wide variety of lightweight aluminum adapter fittings allow for the connection of Russell hose ends to almost any component.
Fitment
Match the complete year, make, model, submodel, brake or fuel-system configuration, and every manufacturer note for this exact part number.
| Years | Make | Model | Submodel | Application |
|---|---|---|---|---|
| 1990-1997 | Mazda | Miata | All applicable trims | Confirm brake configuration and manufacturer application notes |
| 1993 | Mazda | Miata | LE | Confirm brake configuration and manufacturer application notes |
| 1994-1997 | Mazda | Miata | M Edition | Confirm brake configuration and manufacturer application notes |
| 1991 | Mazda | Miata | SE | Confirm brake configuration and manufacturer application notes |
| 1997 | Mazda | Miata | STO | Confirm brake configuration and manufacturer application notes |
Specifications
| Manufacturer | Russell |
|---|---|
| Manufacturer part number | 685500 |
| Product type | Brake Line Kits |
| Condition | New |
What's Included
One new Russell brake line kits matching manufacturer part number 685500, with the components and seals supplied by Russell for this exact configuration.
Brand Information
Russell Performance manufactures automotive fluid-transfer products including hose, hose ends, adapter fittings, direct-fit brake hoses, fuel-management components, and plumbing accessories for fuel, oil, coolant, brake, clutch, and power-steering systems.
Related Parts
- Shop all Russell products
- Russell Performance 00-06 GM Suburban/ Tahoe/ Yukon 1500 2WD/4WD Brake Line Kit
- Russell Performance 00-06 Honda S2000 Brake Line Kit
- Russell Performance 01-06 GM Silverado/Sierra HD (All) (Also fits Rancho) Brake Line Kit
Frequently Asked Questions
How do I confirm compatibility?
Match every YMM row and confirm the brake or fuel-system configuration shown in Russell's application notes.
Can different hose and fitting families be mixed?
Only combine components when Russell confirms the hose construction, fitting series, AN size, thread, sealing method, pressure rating, temperature range, and fluid compatibility are all compatible.
What should be checked after installation?
Route the line away from heat, abrasion, steering, and suspension movement, use the specified seals and torque, pressure-test the system, and inspect every connection for leaks before operation.
Installation Instructions
Follow the current Russell instructions for this exact part number. Keep every sealing surface clean, use only the specified seal or washer, avoid thread sealant on AN flare seats, support hoses away from heat and moving parts, torque connections correctly, and pressure-test the completed system before service.
