SKY Lift Kit Components

Long Travel Height for the Gladiator Without Rubicon Trims

The Skyjacker G452KMLT is a 4.5 inch dual rate long travel suspension lift kit built for Jeep Gladiator JT models, giving owners significant lift and articulation for serious off road tire and wheel packages. This kit pairs dual rate coil springs with a 3 inch rear coil spring lift and Skyjacker's M95 shocks, delivering long travel performance rather than a simple height increase. The dual rate spring design keeps the ride comfortable during daily driving while still supporting the load and articulation demands of off road use. The G452KMLT is engineered for non Rubicon Gladiator trims, since the Rubicon's unique axles, sway bar disconnect system and factory off road hardware require Skyjacker's separate Rubicon specific kit. Owners running larger tires and building a dedicated overland or trail rig on the standard Gladiator platform use the G452KMLT as a complete long travel solution.

Key Features

• 4.5 inch dual rate long travel suspension lift
• 3 inch rear coil spring lift included
• Skyjacker M95 Hydro shocks front and rear
• Dual rate coil springs balance comfort and load capacity
• Engineered for non Rubicon Gladiator JT trims
• Supports larger tire and wheel packages for off road articulation

Fitment Table

Specifications

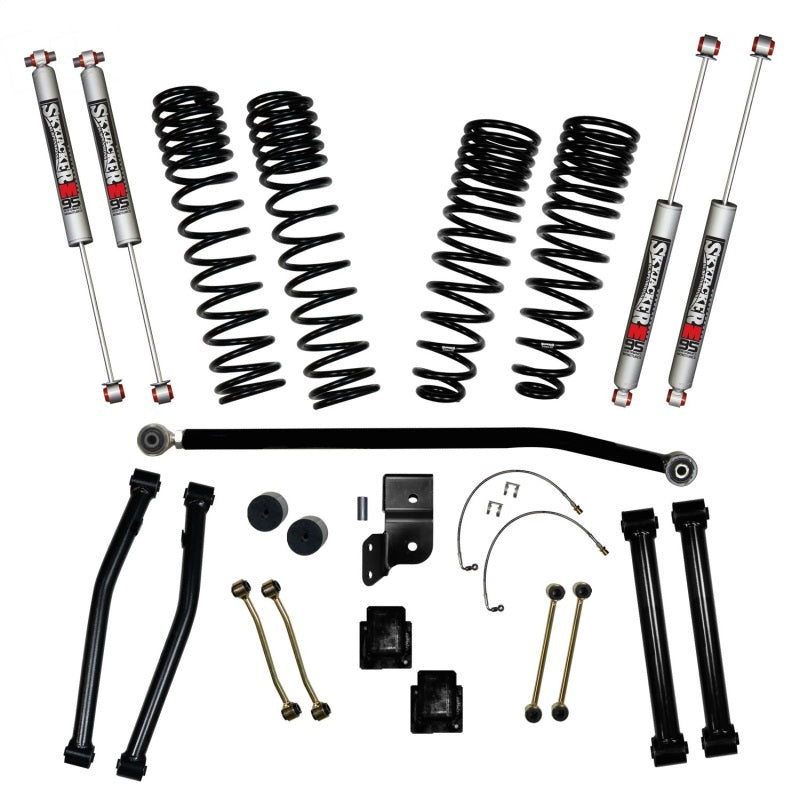

What's Included

• Dual rate front coil springs
• 3 inch rear coil springs
• M95 Hydro shocks, front and rear
• Long travel suspension arms and mounting hardware

About Skyjacker

Skyjacker Suspensions engineers long travel systems for modern off road platforms like the Gladiator JT, combining dual rate springs with purpose built shocks so the added travel does not sacrifice daily ride quality. The G452KMLT applies that approach to non Rubicon Gladiator trims.

Related Parts

• Skyjacker G452RKMLT long travel kit for Gladiator Rubicon

FAQ

The G452KMLT is a Skyjacker 4.5 inch dual rate long travel suspension lift kit for non Rubicon Jeep Gladiator JT trims, including 3 inch rear coil springs and M95 shocks.

No, the Rubicon trim requires Skyjacker's separate G452RKMLT kit due to its unique axles and factory off road hardware.

A dual rate coil spring uses two different spring rates within one coil, providing a comfortable ride at normal loads while firming up under heavier load or articulation.

Yes, Skyjacker M95 Hydro shocks are included front and rear as part of the kit.

The kit provides up to 4.5 inches of front lift and 3 inches of rear lift using the included coil springs.

Yes, the kit is designed for long travel performance, offering more suspension articulation than a standard lift kit.

The G452KMLT fits Gladiator JT trims including Launch Edition, Overland, Sport, and Sport S, excluding Rubicon and Mojave.

Yes, due to the complexity of a long travel suspension system, professional installation is recommended.

Install Instructions

1. Park the Gladiator on level ground and support the frame with jack stands at the front and rear lift points.
2. Remove all four wheels.
3. Support the front and rear axles with a floor jack to relieve suspension tension.
4. Remove the factory shocks, coil springs, and related suspension arms.
5. Install the Skyjacker long travel suspension arms and coil springs at the front and rear per the included instructions.
6. Install the M95 Hydro shocks at the upper and lower mounts using factory and supplied hardware.
7. Reconnect the sway bar end links and track bar per the included instructions.
8. Reinstall the wheels, lower the vehicle, torque all hardware to specification, and have the alignment checked.
