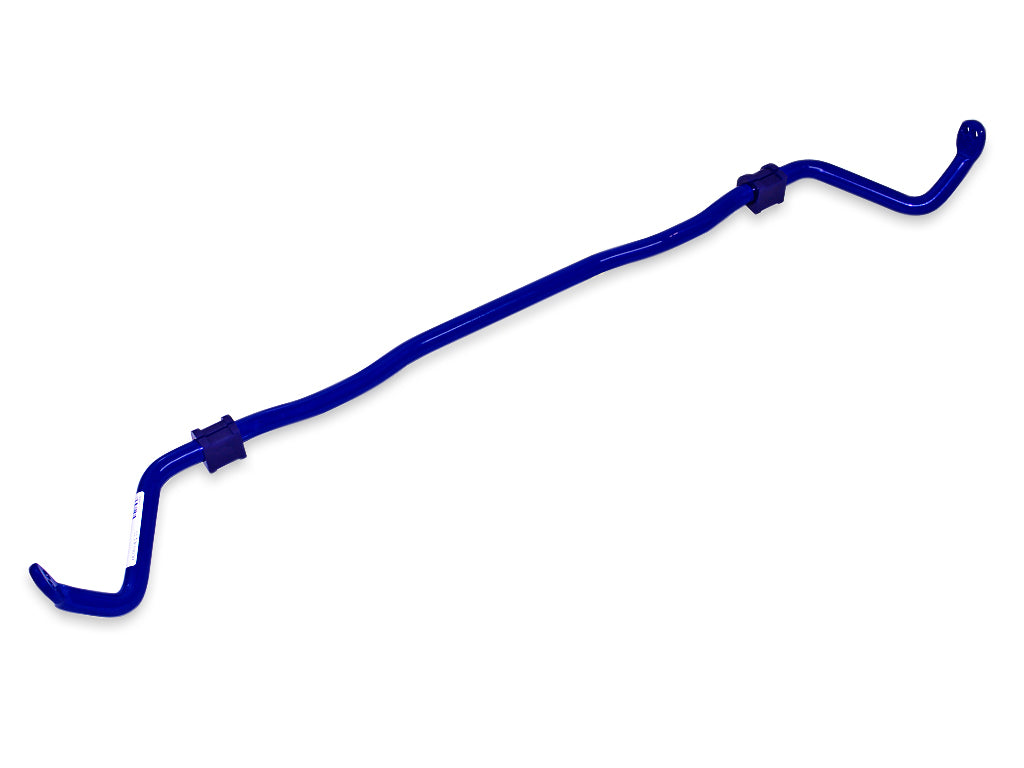

SuperPro RC0013FZ-22 Front 22mm 2-Position Adjustable Sway Bar Kit for 2008-2014 Subaru WRX STI and Forester
The SuperPro RC0013FZ-22 is a 22mm front heavy-duty 2-position blade adjustable sway bar kit purpose-built for the 2008-2014 Subaru Impreza WRX STI and compatible Forester XT models. Using race-spec chromoly steel and a 4-step corrosion-resistant finish in SuperPro blue, the RC0013FZ-22 delivers up to a 50% increase in front sway bar rate over stock, reducing understeer and improving turn-in response for both street and track use.
Features and Benefits
- 22mm chromoly steel bar with 2-position blade adjustability for soft or firm handling balance
- Reduces front body roll and improves cornering stability on WRX STI and Forester XT platforms
- Four-step finish: zinc treatment, epoxy coating, two-stage blue powder coat
- Polyurethane D-bushings and Slippery Stuff grease included
- Up to 50% stiffer than OEM at the firm setting
- Manufactured in Australia to ISO quality standards
- Wheel alignment required after fitment
- 3-year / 37,282-mile warranty on metal components
Fitment Table
| Year | Make | Model | Trim |
|---|---|---|---|
| 2009 | Subaru | Forester | XT |
| 2009 | Subaru | Forester | XT Limited |
| 2010 | Subaru | Forester | XT Limited |
| 2010 | Subaru | Forester | XT Premium |
| 2011 | Subaru | Forester | XT Premium |
| 2012 | Subaru | Forester | XT Premium |
| 2013 | Subaru | Forester | XT Premium |
| 2011 | Subaru | Forester | XT Touring |
| 2012 | Subaru | Forester | XT Touring |
| 2013 | Subaru | Forester | XT Touring |
| 2011 | Subaru | Impreza | WRX |
| 2012 | Subaru | Impreza | WRX |
| 2013 | Subaru | Impreza | WRX |
| 2014 | Subaru | Impreza | WRX |
| 2011 | Subaru | Impreza | WRX Limited |
| 2012 | Subaru | Impreza | WRX Limited |
| 2013 | Subaru | Impreza | WRX Limited |
| 2014 | Subaru | Impreza | WRX Limited |
| 2011 | Subaru | Impreza | WRX Premium |
| 2012 | Subaru | Impreza | WRX Premium |
| 2013 | Subaru | Impreza | WRX Premium |
| 2014 | Subaru | Impreza | WRX Premium |
| 2011 | Subaru | Impreza | WRX STI |
| 2012 | Subaru | Impreza | WRX STI |
| 2013 | Subaru | Impreza | WRX STI |
| 2014 | Subaru | Impreza | WRX STI |
| 2011 | Subaru | Impreza | WRX STI Limited |
| 2012 | Subaru | Impreza | WRX STI Limited |
| 2013 | Subaru | Impreza | WRX STI Limited |
| 2014 | Subaru | Impreza | WRX STI Limited |
| 2010 | Subaru | Impreza | WRX STI Special Edition |
Specifications
| Attribute | Details |
|---|---|
| Part Number | RC0013FZ-22 |
| UPC | 9317745750802 |
| Bar Diameter | 22mm |
| Position | Front |
| Adjustability | 2-position blade adjustable |
| Material | Race-spec chromoly steel |
| Finish | SuperPro blue powder coat (4-step: zinc, epoxy, 2-stage) |
| Country of Manufacture | Australia |
| Warranty | 3-year / 37,282-mile on metal; Lifetime on polyurethane |
What Is Included
- 1 x 22mm front adjustable sway bar
- 2 x polyurethane D-bushings
- 2 x mounting brackets
- 1 x packet of SuperPro Slippery Stuff grease
Frequently Asked Questions
What does RC0013FZ-22 replace on the WRX STI?
The RC0013FZ-22 replaces the factory front sway bar on 2011-2014 Subaru Impreza WRX and WRX STI models, delivering a stiffer, more responsive bar for improved handling.
Will this fit a 2008 WRX STI?
The RC0013FZ-22 fitment starts at the 2011 model year for the Impreza WRX/STI platform. For 2009-2010 Forester XT models this bar is also compatible.
How do I choose between the soft and firm settings?
The inner (soft) position delivers milder body roll reduction for everyday street driving. The outer (firm) position maximizes stiffness by up to 50% over factory for autocross or track use.
Will installing this sway bar void my Subaru powertrain warranty under the Magnuson-Moss Warranty Act?
The Magnuson-Moss Warranty Act protects consumers; a dealer cannot void your warranty for an aftermarket sway bar installation unless they can demonstrate that the bar directly caused a specific warranty claim failure.
Is wheel alignment required after installing the RC0013FZ-22?
Yes. SuperPro recommends a four-wheel alignment after any sway bar installation to confirm that suspension geometry is within specification.
What tools are required for installation?
Basic hand tools, a torque wrench, and access to a lift or jack stands. No special tooling is required.
How long is the warranty on the RC0013FZ-22?
The metal bar is covered for 3 years or 37,282 miles from the date of purchase. Polyurethane bushings carry a lifetime warranty.
Does this bar produce more road noise or vibration compared to stock?
No. SuperPro polyurethane bushings are engineered to provide a firm but compliant interface that minimizes NVH increases compared to rubber alternatives.
Installation Instructions
- Safely raise and support the vehicle on jack stands or a lift.
- Remove the factory front sway bar end links on both sides.
- Remove the factory front sway bar mounting brackets and sway bar.
- Lubricate the polyurethane D-bushings with the included Slippery Stuff grease.
- Slide the D-bushings onto the RC0013FZ-22 bar at the correct mounting positions.
- Position the bar into place and install the mounting brackets; torque to specification.
- Attach the end links at the desired adjustment position and torque all fasteners.
- Lower the vehicle and perform a four-wheel alignment.
Prop 65 Warning: WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
