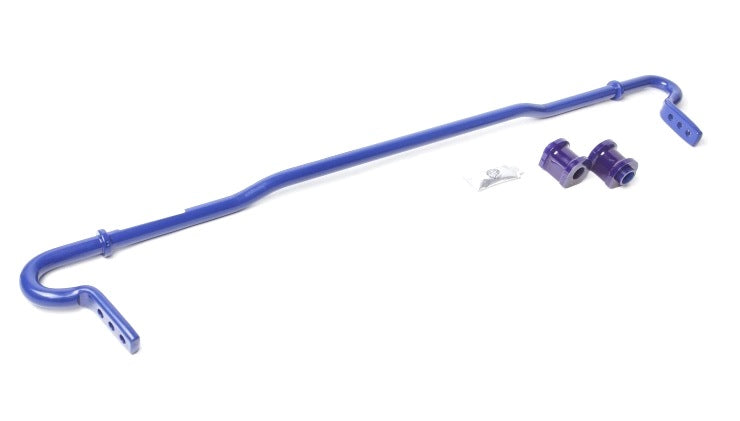

SuperPro RC0013RZ-22 Rear 22mm 3-Position Adjustable Sway Bar Kit for Subaru Forester, Impreza, Legacy, Outback, WRX, STI and Crosstrek
The SuperPro RC0013RZ-22 is a 22mm rear heavy-duty 3-position blade adjustable sway bar kit engineered for a wide range of Subaru platforms including the Forester, Impreza, Legacy, Outback, WRX, WRX STI, and XV Crosstrek. Manufactured in Australia from race-spec chromoly steel and finished in SuperPro blue powder coat, the RC0013RZ-22 reduces body roll by up to 50% over stock when set to the stiffest position, while polyurethane D-bushings and included hardware make installation straightforward on any of the covered Subaru models.
Features and Benefits
- 22mm solid chromoly steel bar, up to 30% lighter than traditional sway bars
- 3-position blade adjustability allows 30-50% increase in sway bar rate over factory
- Reduces body roll and improves cornering grip and steering response
- Four-step corrosion finish: zinc treatment, epoxy coating, two-stage powder coat
- Polyurethane D-bushings and slippery stuff grease included for quiet, maintenance-free operation
- Manufactured in Australia to ISO quality standards
- Wheel alignment required after fitment
- 3-year / 37,282-mile warranty on metal components
Fitment Table
| Year | Make | Model | Trim |
|---|---|---|---|
| 2009 | Subaru | Forester | XT |
| 2009 | Subaru | Forester | X |
| 2010 | Subaru | Forester | X |
| 2011 | Subaru | Forester | X |
| 2012 | Subaru | Forester | X |
| 2013 | Subaru | Forester | X |
| 2009 | Subaru | Forester | X Limited |
| 2010 | Subaru | Forester | X Limited |
| 2011 | Subaru | Forester | X Limited |
| 2012 | Subaru | Forester | X Limited |
| 2013 | Subaru | Forester | X Limited |
| 2009 | Subaru | Forester | X Premium |
| 2010 | Subaru | Forester | X Premium |
| 2011 | Subaru | Forester | X Premium |
| 2012 | Subaru | Forester | X Premium |
| 2013 | Subaru | Forester | X Premium |
| 2011 | Subaru | Forester | X Touring |
| 2012 | Subaru | Forester | X Touring |
| 2013 | Subaru | Forester | X Touring |
| 2009 | Subaru | Forester | XT Limited |
| 2010 | Subaru | Forester | XT Limited |
| 2010 | Subaru | Forester | XT Premium |
| 2011 | Subaru | Forester | XT Premium |
| 2012 | Subaru | Forester | XT Premium |
| 2013 | Subaru | Forester | XT Premium |
| 2011 | Subaru | Forester | XT Touring |
| 2012 | Subaru | Forester | XT Touring |
| 2013 | Subaru | Forester | XT Touring |
| 2014 | Subaru | Forester | 2.5i |
| 2015 | Subaru | Forester | 2.5i |
| 2016 | Subaru | Forester | 2.5i |
| 2017 | Subaru | Forester | 2.5i |
| 2018 | Subaru | Forester | 2.5i |
| 2014 | Subaru | Forester | 2.5i Limited |
| 2015 | Subaru | Forester | 2.5i Limited |
| 2016 | Subaru | Forester | 2.5i Limited |
| 2017 | Subaru | Forester | 2.5i Limited |
| 2018 | Subaru | Forester | 2.5i Limited |
| 2014 | Subaru | Forester | 2.5i Premium |
| 2015 | Subaru | Forester | 2.5i Premium |
| 2016 | Subaru | Forester | 2.5i Premium |
| 2017 | Subaru | Forester | 2.5i Premium |
| 2018 | Subaru | Forester | 2.5i Premium |
| 2014 | Subaru | Forester | 2.5i Touring |
| 2015 | Subaru | Forester | 2.5i Touring |
| 2016 | Subaru | Forester | 2.5i Touring |
| 2017 | Subaru | Forester | 2.5i Touring |
| 2018 | Subaru | Forester | 2.5i Touring |
| 2014 | Subaru | Forester | 2.0XT Premium |
| 2015 | Subaru | Forester | 2.0XT Premium |
| 2016 | Subaru | Forester | 2.0XT Premium |
| 2017 | Subaru | Forester | 2.0XT Premium |
| 2018 | Subaru | Forester | 2.0XT Premium |
| 2014 | Subaru | Forester | 2.0XT Touring |
| 2015 | Subaru | Forester | 2.0XT Touring |
| 2016 | Subaru | Forester | 2.0XT Touring |
| 2017 | Subaru | Forester | 2.0XT Touring |
| 2018 | Subaru | Forester | 2.0XT Touring |
| 2008 | Subaru | Impreza | 2.5i |
| 2009 | Subaru | Impreza | 2.5i |
| 2010 | Subaru | Impreza | 2.5i |
| 2011 | Subaru | Impreza | 2.5i |
| 2008 | Subaru | Impreza | WRX |
| 2009 | Subaru | Impreza | WRX |
| 2010 | Subaru | Impreza | WRX |
| 2011 | Subaru | Impreza | WRX |
| 2012 | Subaru | Impreza | WRX |
| 2013 | Subaru | Impreza | WRX |
| 2014 | Subaru | Impreza | WRX |
| 2008 | Subaru | Impreza | WRX STI |
| 2009 | Subaru | Impreza | WRX STI |
| 2010 | Subaru | Impreza | WRX STI |
| 2011 | Subaru | Impreza | WRX STI |
| 2012 | Subaru | Impreza | WRX STI |
| 2013 | Subaru | Impreza | WRX STI |
| 2014 | Subaru | Impreza | WRX STI |
| 2018 | Subaru | WRX | Premium |
| 2019 | Subaru | WRX | Premium |
| 2020 | Subaru | WRX | Premium |
| 2021 | Subaru | WRX | Premium |
| 2018 | Subaru | WRX STI | Limited |
| 2019 | Subaru | WRX STI | Limited |
| 2020 | Subaru | WRX STI | Limited |
| 2021 | Subaru | WRX STI | Limited |
| 2010 | Subaru | Legacy | 2.5i |
| 2010 | Subaru | Outback | 2.5i |
| 2013 | Subaru | XV Crosstrek | Limited |
| 2014 | Subaru | XV Crosstrek | Limited |
| 2015 | Subaru | XV Crosstrek | Limited |
| 2013 | Subaru | XV Crosstrek | Premium |
| 2014 | Subaru | XV Crosstrek | Premium |
| 2015 | Subaru | XV Crosstrek | Premium |
Specifications
| Attribute | Details |
|---|---|
| Part Number | RC0013RZ-22 |
| UPC | 9317745750802 |
| Bar Diameter | 22mm |
| Position | Rear |
| Adjustability | 3-position blade adjustable |
| Material | Race-spec chromoly steel |
| Finish | SuperPro blue powder coat (zinc, epoxy, 2-stage) |
| Country of Manufacture | Australia |
| Weight | 19 lbs |
| Warranty | 3-year / 37,282-mile on metal components; Lifetime on polyurethane |
What Is Included
- 1 x 22mm rear adjustable sway bar
- 2 x polyurethane D-bushings
- 2 x mounting brackets
- 1 x packet of SuperPro Slippery Stuff grease
Frequently Asked Questions
What is the RC0013RZ-22 used for?
The RC0013RZ-22 replaces the factory rear sway bar on supported Subaru models to reduce body roll and improve cornering grip and balance.
How much stiffer is the RC0013RZ-22 compared to factory?
Moving the end link to the stiffest position increases sway bar rate by up to 50% compared to the original equipment bar.
Does this fit both the WRX and WRX STI?
Yes. The RC0013RZ-22 fits 2008-2021 WRX and WRX STI models, as well as a broad range of Subaru Forester, Impreza, Legacy, Outback, and Crosstrek applications.
Will this void my vehicle warranty under the Magnuson-Moss Warranty Act?
The Magnuson-Moss Warranty Act prohibits a dealer from voiding your factory warranty solely because you installed an aftermarket part. The dealer must prove the aftermarket part caused a specific failure before denying a warranty claim.
Is wheel alignment required after installing the RC0013RZ-22?
Yes. A four-wheel alignment is recommended after installing any sway bar to confirm suspension geometry has not shifted during installation.
What tools do I need to install the RC0013RZ-22?
Standard hand tools including sockets, wrenches, and a torque wrench are sufficient. A lift or jack stands are required for safe vehicle access.
What is the warranty on this SuperPro sway bar?
The metal sway bar carries a 3-year / 37,282-mile warranty. SuperPro polyurethane bushings are covered by a lifetime warranty.
What is the difference between a 3-position and 2-position adjustable bar?
A 3-position bar offers an additional intermediate setting between soft and firm, giving more granular control over the handling balance of the vehicle.
Installation Instructions
- Safely raise and support the vehicle on jack stands or a lift.
- Remove the factory rear sway bar end links on both sides.
- Remove the factory rear sway bar mounting brackets and sway bar.
- Apply SuperPro Slippery Stuff grease to the polyurethane D-bushings.
- Slide the D-bushings onto the RC0013RZ-22 sway bar at the mounting positions.
- Fit the sway bar into position; install the mounting brackets and torque to spec.
- Connect the sway bar end links at the desired adjustment position (soft, medium, or firm).
- Torque all fasteners to factory specification.
- Lower the vehicle and have a four-wheel alignment performed.
