Restore Precise Rear Suspension Movement

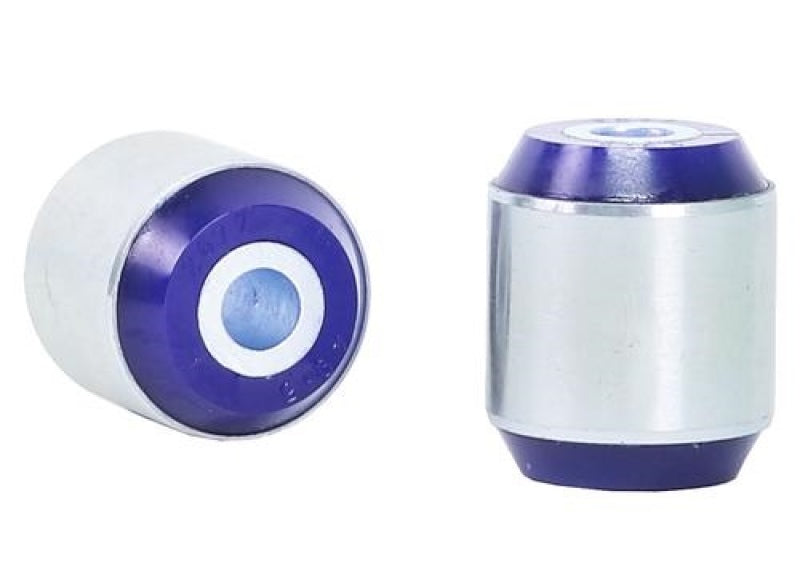

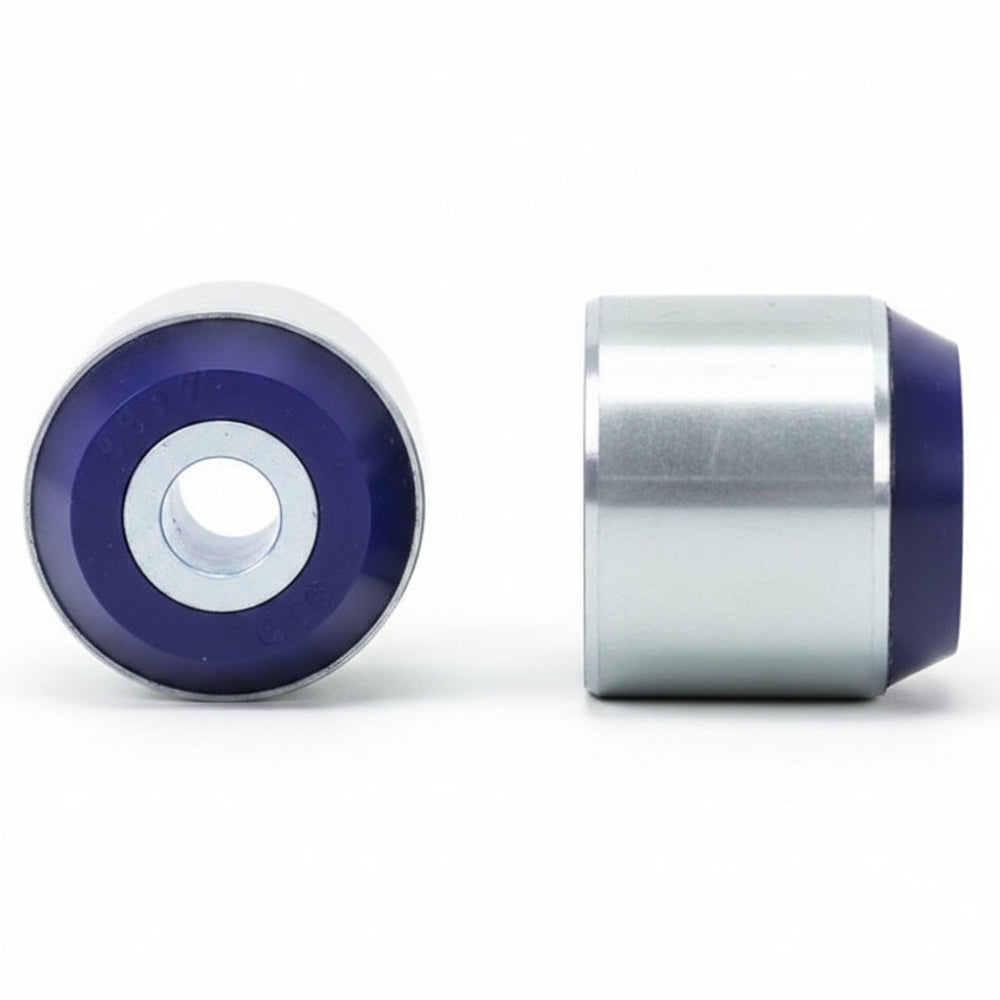

SuperPro SPF2677K replaces the forward bushings where the rear trailing arms attach to the crossmember on compatible Mazda RX-7 FD models. The polyurethane bushings and matched metal components provide a direct fit replacement for worn original mounting points.
Key Features
- Vehicle specific design for Mazda RX-7 FD rear suspension
- Polyurethane construction resists the deflection associated with worn rubber bushings
- SPF2677K services both rear trailing arm forward mounting points
- Matched inner tubes and outer shells are included with the bushings
- Backed by the SuperPro lifetime bushing warranty for the original purchaser
Fitment
| Years | Make | Vehicle Application | Chassis | Position |
|---|---|---|---|---|
| 1993-2002 | Mazda | RX-7, Series VI, VII, and VIII | FD | Rear trailing arm forward mount |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | SPF2677K |
| Product type | Rear trailing arm forward bushing kit |
| Material | Polyurethane with metal tubes and shells |
| Position | Rear |
| Application type | Vehicle specific direct fit |
| Warranty | SuperPro lifetime bushing warranty for the original purchaser |

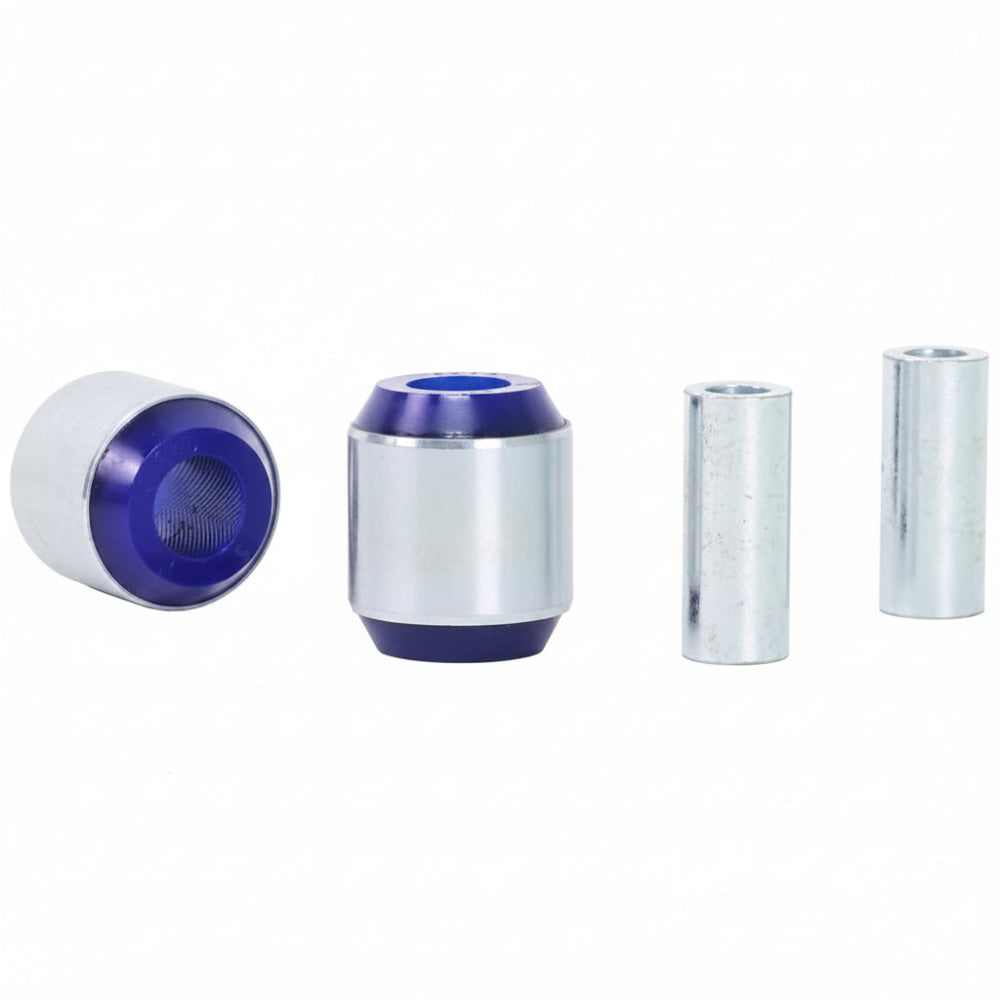

What's Included
- Two SPF2677K polyurethane bushings
- Two inner tubes
- Two outer shells
About SuperPro
SuperPro develops polyurethane suspension components for direct replacement and performance applications. Its SPF bushing range is covered by a lifetime warranty for the original purchaser when supplied for the cataloged application through an authorized North American dealer.
Related Parts
FAQ
What is the SPF2677K?It is a vehicle specific kit for the forward mounting points of the rear trailing arms on Mazda RX-7 FD models.
Which Mazda RX-7 models does this kit fit?It fits 1993-2002 Mazda RX-7 Series VI, VII, and VIII models on the FD chassis.
Where is this bushing kit installed?The kit installs at the forward mounting points where the rear trailing arms connect to the rear crossmember.
Does the kit service both sides?Yes. The package contains two bushings, two inner tubes, and two outer shells for the paired rear mounting points.
Is this a universal bushing kit?No. It is designed specifically for the listed Mazda RX-7 FD application.
What material are the bushings made from?The bushings are made from polyurethane and use matched metal inner tubes and outer shells.
Is professional installation recommended?Yes. Removing and installing suspension bushings requires suitable pressing tools, secure vehicle support, and correct fastener tightening procedures.
What warranty applies?SuperPro covers its SPF bushing range with a lifetime warranty for the original purchaser, subject to the North American warranty terms.
Installation Instructions
- Confirm SPF2677K and the vehicle application before disassembly.
- Support the vehicle safely and remove the rear suspension components needed to access each trailing arm forward mount.
- Record the original component orientation, then press the worn bushings and shells from the mounting points with suitable tools.
- Clean and inspect the mounting bores before installing the supplied shells, bushings, and inner tubes in their correct orientation.
- Reassemble the suspension and tighten all fasteners to the Mazda service specifications at the specified ride position.
- Inspect the completed installation and check rear wheel alignment before returning the vehicle to service.
