Build Smooth Custom Tubing Routes

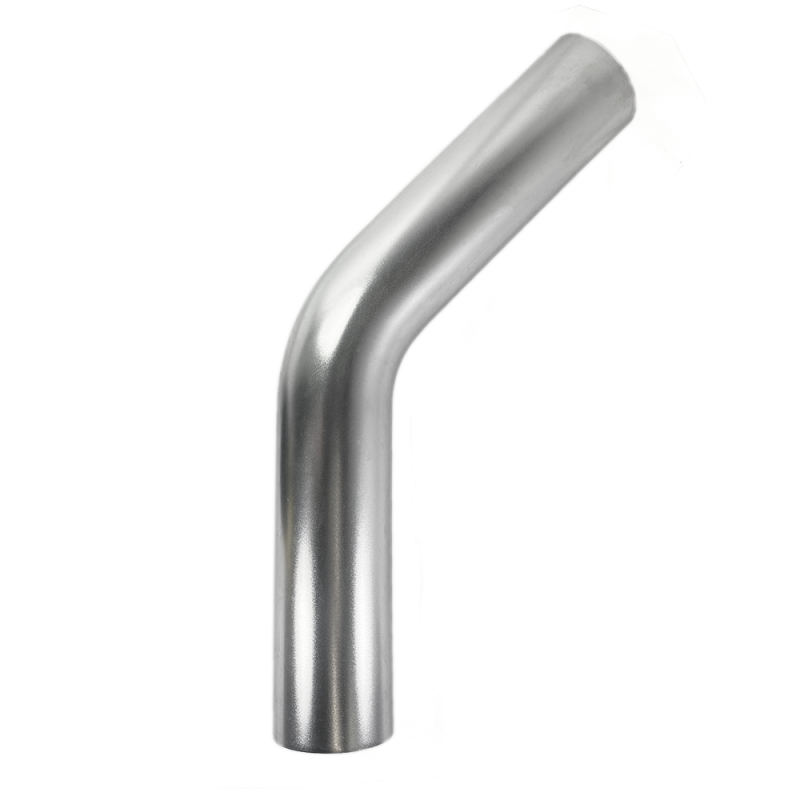

Ticon Industries 301-07627-8150 is a universal 3in mandrel bend for custom intake and exhaust fabrication. The 6061 aluminum tube uses a 45 degree bend, a 1.5D centerline radius, and a 1.8mm wall for building a smooth directional change.
Key Features
- 3in outside diameter suits compatible custom tubing systems
- 45 degree bend changes tube direction without a sharp elbow
- 1.5D centerline radius supports a smooth fabricated route
- 1.8mm wall thickness matches the exact manufacturer variant
- 6061 aluminum construction provides a weldable fabrication component
Fitment
| Application | Compatibility Requirement |
|---|---|
| Universal custom intake and exhaust fabrication | Compatible 3in aluminum tubing and a fabricated system designed for a 45 degree bend |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 301-07627-8150 |
| Product type | Mandrel bend tubing |
| Material | 6061 aluminum |
| Outside diameter | 3in |
| Wall thickness | 1.8mm or .071in |
| Bend angle | 45 degrees |
| Centerline radius | 1.5D |
| Application | Universal |
What's Included
- One 3in 6061 aluminum 45 degree mandrel bend
About Ticon Industries
Ticon Industries supplies tubing, bends, flanges, clamps, and related components for custom automotive fabrication projects.
Related Parts
FAQ
What is the 301-07627-8150?It is a universal 3in 6061 aluminum tube section formed with a 45 degree mandrel bend for custom fabrication.
Is this bend vehicle specific?No. It is a universal fabrication component that must be sized and positioned for the planned tubing system.
What is the tube diameter?The outside diameter is 3in.
What is the wall thickness?The exact 3in variant has a 1.8mm or .071in wall.
What is the bend angle?The tube changes direction by 45 degrees.
What does a 1.5D radius mean?The centerline radius is one and one half times the tube diameter.
Can this be used for intake fabrication?Yes. It can be incorporated into a compatible custom aluminum intake tube when the fabricator confirms size and routing.
Can this be used for exhaust fabrication?Yes. It can be incorporated into a compatible custom aluminum exhaust system when the material and dimensions suit the build.
Installation Instructions
- Confirm that 3in aluminum tubing, a 45 degree bend, and a 1.5D radius suit the planned route.
- Position the bend in the fabrication layout and mark the required cut locations.
- Cut and deburr the tube ends using tools suitable for aluminum tubing.
- Clean the joint surfaces before fitting the bend to the adjoining tube sections.
- Align and secure the assembly according to the fabrication plan.
- Join the tubing with a process and filler material suitable for 6061 aluminum.
- Inspect the completed joints and verify clearance before operating the vehicle.
