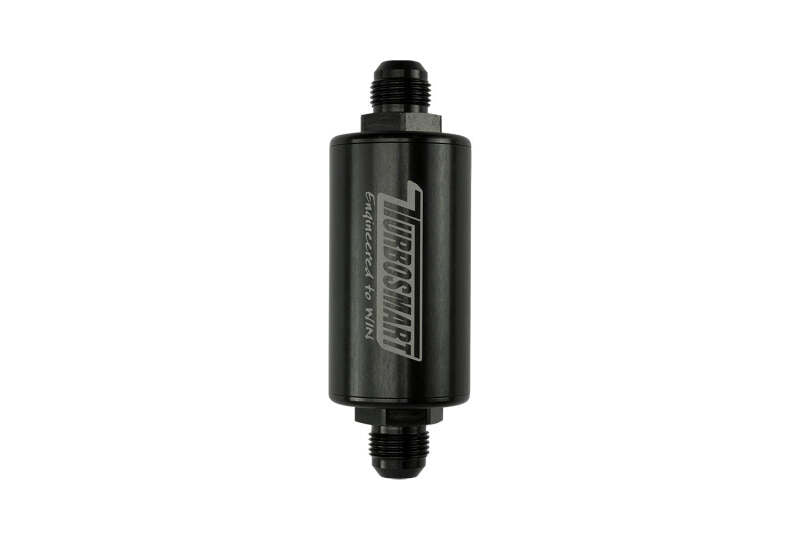

Protect your fuel system with the Turbosmart -10AN inline filter, part number TS-0402-1135.
The Turbosmart inline fuel filter (part number TS-0402-1135) uses a 10 micron washable stainless steel mesh cartridge inside a hard-anodized billet aluminum housing. Built for -10AN fuel systems, it is motorsport-proven insurance for high-performance and race engines.
Key Features
- 10 micron washable stainless steel mesh cartridge for maximum filtration with minimal restriction
- Billet 6061-T6 aluminum housing, hard anodized in black
- -10AN inlet and outlet fittings
- Includes internal O-ring for sealing at high fuel pressures
- Pairs directly with Turbosmart's FPR fuel pressure regulator series
Fitment
Universal application. Fits any -10AN fuel line fitting on gasoline, race fuel, or leaded fuel systems.
Specifications
| Detail | Value |
|---|---|
| size | -10AN |
| micron_rating | 10 micron |
| element | Washable stainless steel mesh cartridge |
| material | Billet 6061-T6 Aluminium, hard anodized |
| color | Black |
| notes | Complements Turbosmart FPR series. Includes internal O-ring for high-pressure sealing |
What's Included
- 1x Turbosmart inline fuel filter, -10AN, part number TS-0402-1135
- Internal O-ring for high-pressure sealing
About Turbosmart
Turbosmart designs and manufactures fuel system, boost control, and turbo hardware in Australia, backing motorsport programs and enthusiast builds with parts engineered to hold up under real track use.
FAQ
What size fuel line does this fitIt is built for -10AN fuel line fittings and threads directly into that size system without an adapter.
What is the micron rating of the filter elementThe element is rated at 10 microns and uses a washable stainless steel mesh cartridge.
Can I clean and reuse the filter elementYes, the stainless steel mesh cartridge can be removed, cleaned, and reinstalled rather than replaced.
What fuels is this filter rated forIt is rated for gasoline, race fuel, and leaded fuel systems.
What is the housing made fromThe housing is billet 6061-T6 aluminum, hard anodized in black for corrosion resistance.
Does this pair with a Turbosmart fuel pressure regulatorYes, it is designed to pair directly with Turbosmart's FPR fuel pressure regulator series.
Is a seal included for high fuel pressureYes, an internal O-ring is included for sealing at high fuel pressures.
Does this come with a warrantyYes, it is covered by Turbosmart's standard manufacturer warranty against defects in materials and workmanship.
Installation Instructions
- Depressurize the fuel system before disconnecting any fuel lines
- Install the filter inline in the fuel supply line, observing the flow direction marked on the housing
- Connect -10AN fittings to the inlet and outlet ports and tighten securely
- Pressurize the system and check all connections for leaks before starting the engine
- Inspect and clean the washable stainless mesh cartridge at regular service intervals
