SKU: TS-19TH66B-T3082

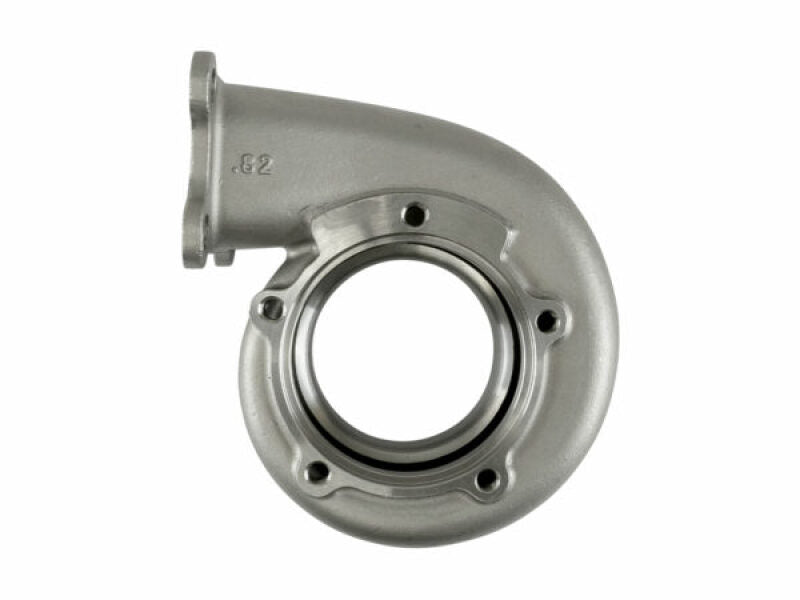

Turbosmart B Frame T3 0.82AR 66mm Turbine Housing - Universal T3 Manifold Fit
This Turbosmart turbine housing features a T3 divided inlet and 0.82 A/R for responsive boost on performance turbo setups. It fits B Frame 66mm turbine CHRA with T3 twin-scroll manifolds found on popular JDM engines. High-flow design supports 400-700HP applications with reliable durability under extreme conditions.
Key Features
- Ni-Resist Casting: Single-piece high-flow material resists heat and wear for consistent performance in race conditions
- T3 Divided Inlet: Twin-scroll design improves exhaust pulse separation for faster spool-up and mid-range torque
- 0.82 A/R Ratio: Balances quick response with strong top-end power ideal for street and track use
- V-Band 3.0" Outlet: Clamp-style connection simplifies installation and removal without flange distortion
- VSR Balanced: Precision balancing ensures smooth operation and extended bearing life at high RPM
Product Notes
- Requires compatible Turbosmart B Frame 66mm turbine wheel and CHRA assembly
- Inspect V-band clamps and gaskets during maintenance for optimal sealing
- Secure packaging protects against shipping damage
Installation Notes
- Professional installation recommended.
- Match with T3 twin-scroll manifold and V-band exhaust downpipe
- Includes mounting provisions for factory-style wastegate actuator
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-1994 | Mazda | RX-7 | FC 13B-RE |
| 1993-2002 | Mazda | RX-7 | FD 13B-REW |
| 1991-1999 | Nissan | 240SX | S13/S14 SR20DET |
| 1995-2002 | Nissan | Skyline | R33 RB25DET |
| 1999-2002 | Nissan | Skyline | R34 RB25DET |
| 1992-1996 | Mitsubishi | 3000GT | VR-4 DOHC 6G72 |
| 1995-2005 | Mitsubishi | Eclipse | DSM 4G63T |
Why Choose Turbosmart?
- Motorsport heritage with proven results in drag racing and circuit competition
- High-quality castings machined for exact tolerances and flow efficiency
- Engineered in Australia for demanding global performance applications
Frequently Asked Questions
-
Q: Does this housing fit my SR20DET with T3 manifold?
A: Yes it bolts directly to T3 twin-scroll manifolds on SR20DET S13/S14 and pairs with B Frame CHRA for 450-650HP setups -
Q: What material is used for heat resistance?
A: Ni-Resist alloy provides superior thermal stability and flow compared to cast iron in high-exhaust-temperature environments -
Q: What warranty applies and installation tips?
A: Backed by Turbosmart limited warranty. torque V-band to spec and use anti-seize on threads for longevity
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Foam-insulated box measuring 14x14x14 inches
- Weight: 12.35 lbs
