SKU: TS-0204-1152 | UPC: 9329677021394

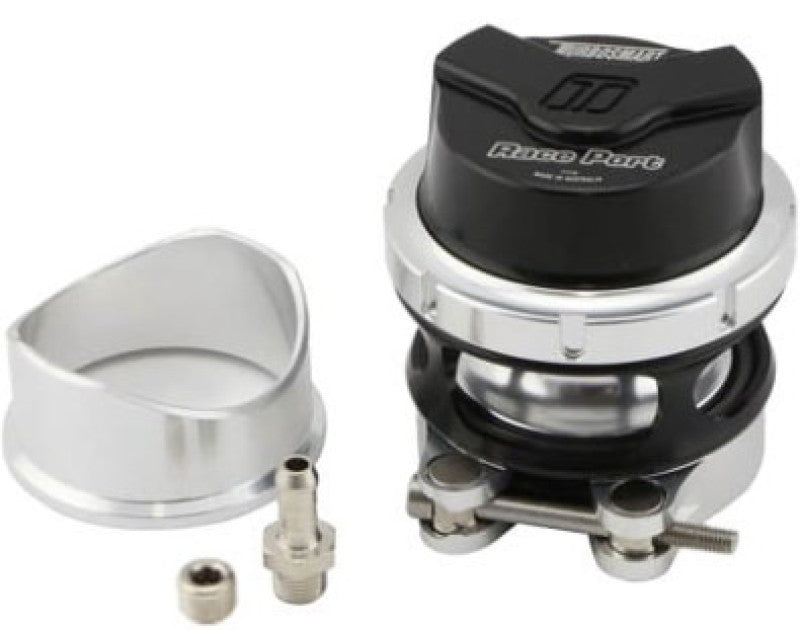

Turbosmart BOV Race Port Gen V Supercharger - Black Universal Fit
The Turbosmart BOV Race Port Gen V Supercharger - Black serves as a dedicated blow-off valve for supercharged engines to eliminate compressor surge. It connects directly to 2-inch charge pipes on most supercharger setups for seamless integration. This design handles high boost pressures while delivering consistent venting and protection for your forced induction system.
Key Features
- Race Port Piston: Delivers supersonic airflow and sharp blow-off sound for vent-to-atmosphere operation
- Billet 6061-T6 Aluminum Body: Provides strength and light weight at 1.3 lbs for enduring high-pressure demands
- Black Hard Anodized Finish: Resists corrosion and wear in harsh engine bay conditions
- 50mm (2in) Inlet and Outlet Hoses: Matches standard supercharger piping for straightforward installation
- Adjustable Springs Included: 3psi 5psi 7psi 10psi 14psi options tune venting to boost levels up to 30psi
Product Notes
- For supercharged engines only prevents surge on positive displacement and centrifugal superchargers
- Double shear Nitto bellows ensure long-term sealing and reliability
- Hand-assembled in Sydney Australia with strict quality checks
Installation Notes
- Professional installation recommended.
- Secure with hose clamps to 2in supercharger outlet and intake pipes
- Compatible with atmosphere vent or recirc plumbing no welding needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Supercharged Vehicles | All |
Why Choose Turbosmart?
- Designed and manufactured in Sydney Australia since 1997
- Innovative engineering with rigorous testing for dependable results
- Strict quality control sets industry benchmarks for performance parts
Frequently Asked Questions
-
Q: Does this fit standard supercharger setups?
A: Yes universal for 2in (50mm) charge pipes on Whipple TorqStorm and other superchargers with BOV provisions -
Q: What material and finish does it use?
A: Forged billet 6061-T6 aluminum with black hard anodized coating for durability and style -
Q: What warranty coverage applies?
A: Limited lifetime warranty covers manufacturing defects when installed and used correctly
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective retail box 7.5 x 5.25 x 3.38 inches
- Weight: 1.3 lbs
