SKU: TS-0550-3059 | UPC: 9329677019506

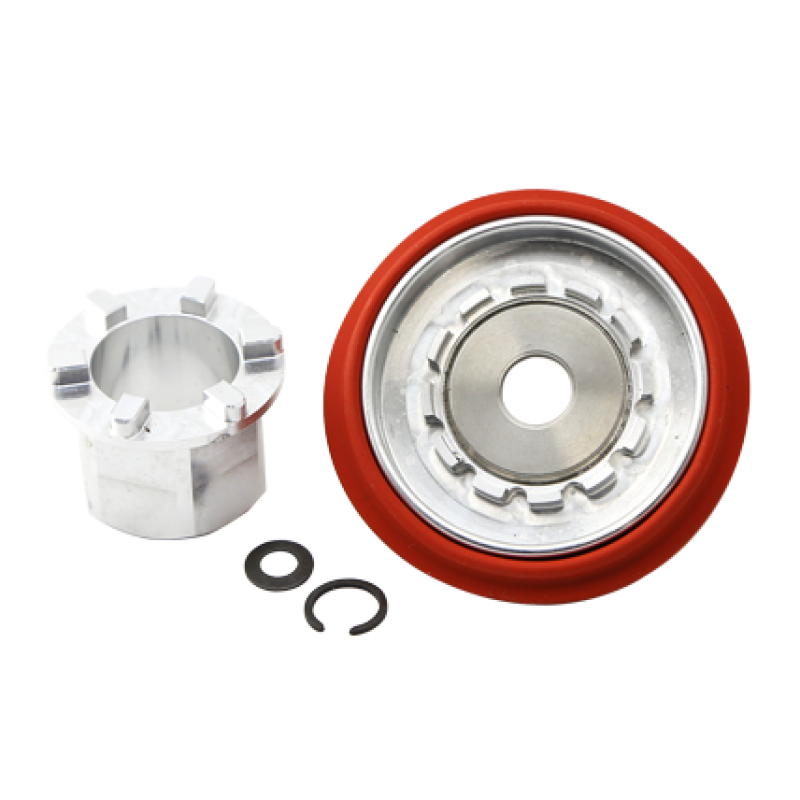

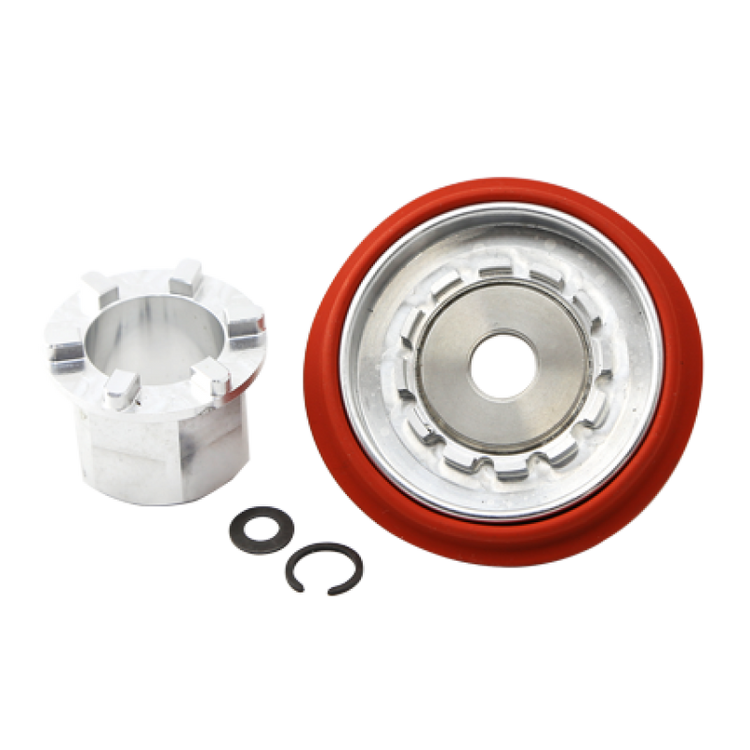

Turbosmart GenV WG38/40 CG/ALV Diaphragm Replacement Kit
This replacement kit revives Turbosmart GenV WG38 and WG40 wastegates equipped with compressed gas or ALV springs. It fits any vehicle upgraded with these actuators for precise boost management. The kit delivers dependable operation to maintain consistent performance under high-pressure conditions.
Key Features
- Silicone Diaphragm: Built from durable silicone material to withstand extreme heat and pressure for long-lasting boost response
- Circlip Installation Tool: Included tool simplifies removal and fitting of the circlip during service
- Direct Fit Design: Matches OEM specifications for GenV WG38 and WG40 actuators with no modifications needed
- CG and ALV Compatibility: Works with compressed gas setups and adjustable light vehicle springs
- Quick Service: Enables fast actuator maintenance to minimize downtime on the track or street
Product Notes
- Inspect wastegate actuator annually or after heavy use to check diaphragm condition
- Store in a cool dry place to preserve diaphragm flexibility
- Packed in protective bubble wrap inside a sturdy cardboard box
Installation Notes
- Professional installation recommended.
- Use included circlip tool to safely remove old diaphragm without damage
- Clean actuator housing thoroughly before installing new diaphragm
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Turbosmart | GenV WG38 Wastegate | CG/ALV |
| Universal | Turbosmart | GenV WG40 Wastegate | CG/ALV |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with proven reliability in performance applications
- Strict quality control and rigorous testing in dedicated research facility
- Innovative design backed by expert staff training and premium manufacturing
Frequently Asked Questions
-
Q: Which wastegates is this kit compatible with?
A: Designed for Turbosmart GenV WG38 and WG40 models using compressed gas or ALV springs -
Q: What material makes up the diaphragm?
A: High-quality silicone construction resists heat fatigue and delivers consistent actuation -
Q: How long does installation take?
A: Typically 15-30 minutes per actuator with basic tools. professional help advised for first-time users
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box measures 6.5 x 6.5 x 1.4 inches
- Weight: 0.05 lbs
