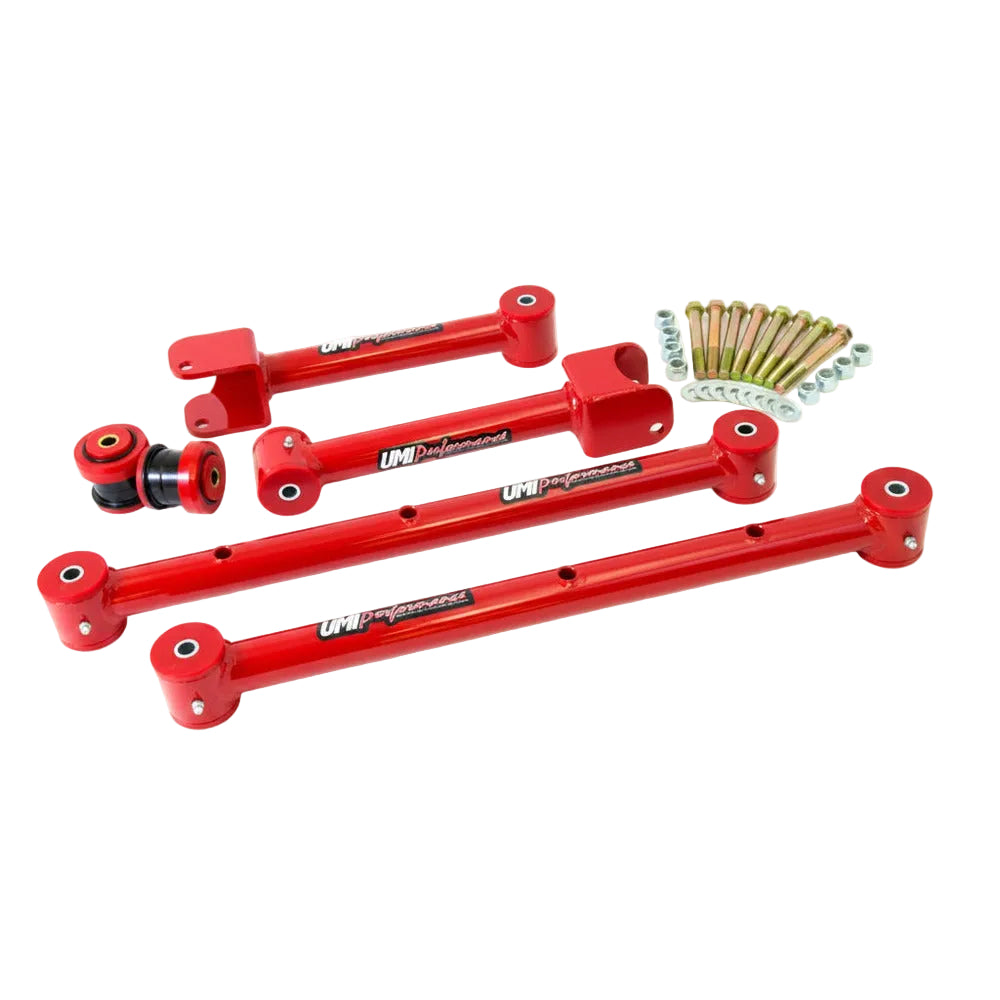

Complete tubular rear control arm kit built to correct A-Body rear geometry
The UMI Performance ABR401-R rear suspension kit replaces the factory stamped steel control arms on 1965-1967 GM A-Body cars with a full tubular upper and lower control arm package. ABR401-R is built from 1.500 inch by 0.120 inch DOM tubing, CNC machined and MIG/TIG welded for a stronger, more precise rear suspension geometry than the factory arms allow. The kit ships with Energy Suspension polyurethane rear end housing bushings and a complete GM hardware kit, so the full rear control arm setup installs as one direct bolt-in package finished in red powder coat.
Key Features
- ABR401-R includes tubular rear lower and rear upper control arms in one kit.
- Built from 1.500 inch by 0.120 inch DOM tubing, CNC machined and MIG/TIG welded.
- Energy Suspension polyurethane rear end housing bushings included.
- Complete GM Grade 8 hardware kit included for a direct bolt-in installation.
- Finished in durable red powder coat.
- 100 percent Made In USA, manufactured in Pennsylvania.
Fitment
| Year Range | Make | Model |
|---|---|---|
| 1965-1967 | Buick | Gran Sport |
| 1965-1967 | Buick | Skylark |
| 1965-1967 | Buick | Special |
| 1965-1967 | Buick | Sportwagon |
| 1965-1967 | Chevrolet | Chevelle |
| 1965-1967 | Chevrolet | El Camino |
| 1965-1967 | Chevrolet | Malibu |
| 1965-1967 | Oldsmobile | 442 |
| 1965-1967 | Oldsmobile | Cutlass |
| 1965-1967 | Oldsmobile | F85 |
| 1965-1967 | Oldsmobile | Vista Cruiser |
| 1965-1967 | Pontiac | GTO |
| 1965-1967 | Pontiac | Tempest |
| 1965-1967 | Pontiac | LeMans |
Specifications
| Detail | Value |
|---|---|
| SKU | ABR401-R |
| Brand | UMI Performance |
| Position | Rear |
| Kit Contents | Tubular lower control arms, tubular upper control arms, housing bushings, hardware kit |
| Tubing Size | 1.500 inch x 0.120 inch DOM |
| Fabrication | CNC machined, MIG/TIG welded |
| Bushing Type | Energy Suspension polyurethane rear end housing bushings |
| Hardware | Grade 8, GM hardware kit |
| Finish | Red powder coat |
| Installation | Direct bolt-in at factory mounting points |
| Country of Manufacture | Made in the USA (Pennsylvania) |
| UPC | Not published |
What's Included
- Pair of tubular rear lower control arms
- Pair of tubular rear upper control arms
- Energy Suspension polyurethane rear end housing bushings
- Complete GM Grade 8 hardware kit
About UMI Performance
UMI Performance designs, tests, and manufactures suspension components in Philipsburg, Pennsylvania, using North American DOM tubing and in-house CNC machining and welding. Its A-Body control arm kits are engineered to correct rear suspension geometry on classic GM muscle cars.
Related Parts
Frequently Asked Questions
What is the ABR401-R?The ABR401-R is a UMI Performance complete tubular rear control arm kit for 1965-1967 GM A-Body cars, finished in red powder coat and including both upper and lower arms with bushings and hardware.
What tubing is used to build the control arms?The arms are built from 1.500 inch by 0.120 inch DOM tubing, CNC machined and MIG/TIG welded for strength and precision.
What bushings are included with this kit?The kit includes Energy Suspension polyurethane rear end housing bushings, along with a complete GM Grade 8 hardware kit.
Does the ABR401-R require any welding to install?No. It is a direct bolt-in kit designed to install at the factory rear control arm mounting points.
Is a black powder coat finish available?Yes. UMI also offers this same control arm kit in a black powder coat finish under a separate SKU.
Which GM A-Body models does this kit fit?It fits 1965-1967 GM A-Body cars including the Buick Skylark and Special, Chevrolet Chevelle, El Camino, and Malibu, Oldsmobile Cutlass and 442, and Pontiac GTO, Tempest, and LeMans.
Where is the ABR401-R manufactured?UMI Performance manufactures the ABR401-R in Philipsburg, Pennsylvania, USA.
Install Instructions
- Support the vehicle safely on jack stands with the rear axle unloaded.
- Remove the factory upper and lower rear control arms from the frame and rear axle housing.
- Press the Energy Suspension polyurethane bushings into the rear axle housing mounts.
- Install the new tubular lower control arms at the factory frame and housing mounting points.
- Install the new tubular upper control arms at the factory frame and housing mounting points.
- Torque all Grade 8 hardware to the vehicle manufacturer's specification, then lower the vehicle and check rear alignment.
