UMI Performance 2048 Competition Upper Front Shock Mounts 1993-2002 GM F-Body Camaro Firebird

The UMI Performance 2048 Competition Upper Front Shock Mounts are a bolt in upgrade for 1993 through 2002 GM F-Body vehicles, converting the rust prone factory upper shock mount to a race proven double shear design. The 2048 upper bracket accepts 1/2 inch bearing, racing style shocks from UMI, AFCO, Viking, and most other manufacturers, giving your fourth generation Camaro or Firebird the front suspension foundation it needs for drag racing, autocross, or road racing. Made 100 percent in Philipsburg, PA and CNC laser cut from USA steel, the UMI Performance 2048 is race proven on UMI's own in-house Camaro.

The factory upper strut mount on the 1993 to 2002 GM F-Body uses a rubber biscuit that deteriorates over time, allowing unwanted movement and costing significantly more to replace than the 2048 bracket. The UMI Performance 2048 replaces that entire assembly with a bolt in double shear mount finished in durable black powder coat. The design drains water to prevent corrosion, and the precision laser cut tabs are oriented to capture any bearing mounted coilover shock with correct geometry. No permanent chassis modifications are required for installation.

UMI Performance 2048 Key Features

• Converts factory rubber mount to race proven double shear design
• Accepts 1/2 inch bearing, racing style shocks from most manufacturers
• CNC laser cut from USA steel, finished in black powder coat
• Water-draining design prevents corrosion
• Bolt-in installation, no permanent chassis modifications required
• Compatible with UMI 35mm and factory sway bar
• Compatible with A-arms using factory shock bolt location
• 100 percent Made in Philipsburg, PA USA
• Race-proven on UMI Performance's house Camaro

Vehicle Fitment

Product Specifications

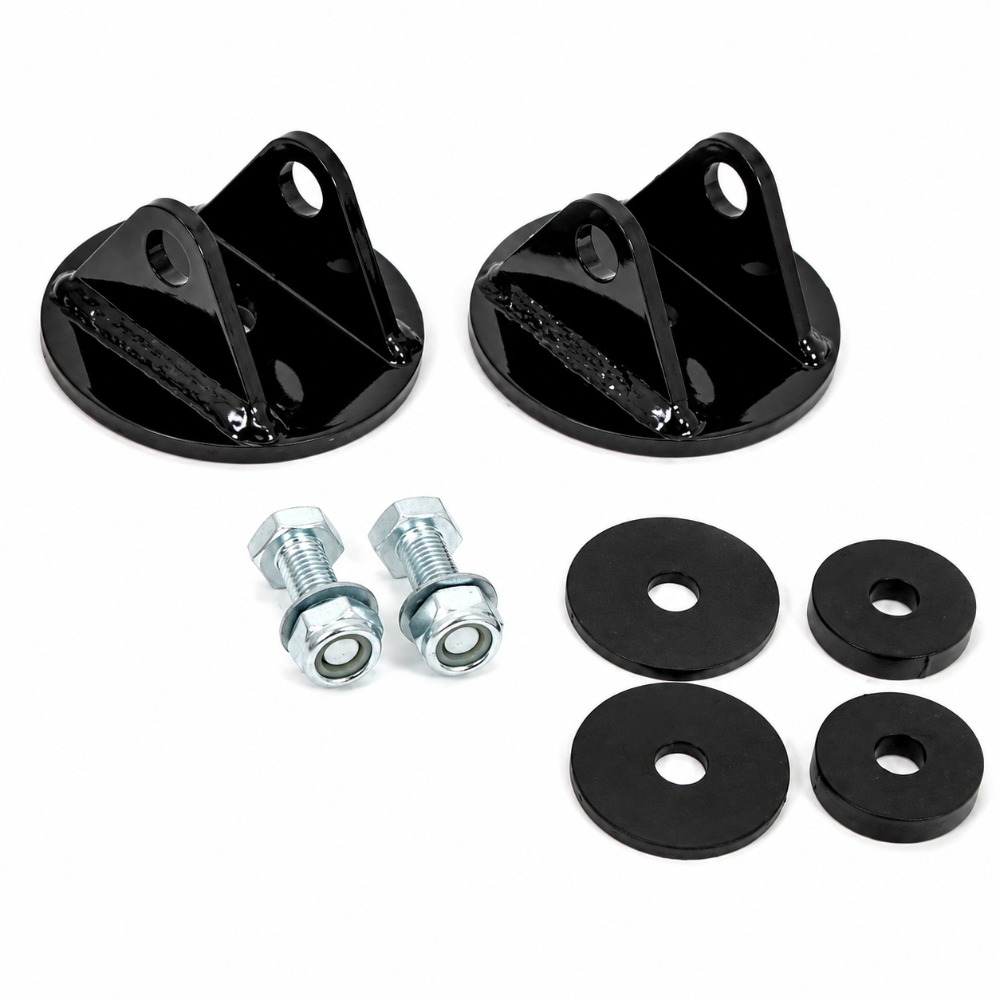

What's Included

• 1x Left (driver) side competition upper front shock mount bracket
• 1x Right (passenger) side competition upper front shock mount bracket
• All required mounting hardware

Installation Notes

The UMI Performance 2048 is a bolt in installation requiring no permanent chassis modifications. Installation takes approximately two hours. The driver side requires loosening and repositioning the brake booster to access some bolt heads. Four bolts or nuts must be removed from the factory strut mount, along with the lower shock mount bolts. Torque all M10 upper mount bolts to 55 ft lbs and the upper shock bolt to 60 ft lbs. A vehicle alignment is required after installation for optimal handling. Compatible with A-arms using the factory shock bolt location; verify clearance with aftermarket sway bars and A-arms before ordering.

Frequently Asked Questions

What vehicles does the UMI Performance 2048 fit?
The 2048 fits all 1993 through 2002 fourth generation GM F-Body vehicles, including the Chevrolet Camaro Base, RS, Z28, Z28 SS, and Indianapolis 500 Pace Car editions, and the Pontiac Firebird Base, Formula, Trans Am, and Trans Am GT. All rear wheel drive configurations are supported.

What type of shocks are compatible with the 2048 bracket?
The UMI Performance 2048 accepts any racing style shock with a 1/2 inch bearing mount. UMI recommends pairing these brackets with UMI AFCO shocks or Viking double adjustable shocks. Most standard competition coilover shocks from other reputable manufacturers that use a 1/2 inch bearing are also compatible.

Does the 2048 require any drilling or permanent modifications?
No. The UMI Performance 2048 is a true bolt in upgrade that replaces the factory upper strut mount assembly without any drilling or permanent changes to the chassis or upper spring mount. This means the modification is fully reversible.

Why should I replace my factory upper shock mount with the 2048?
The factory GM rubber upper shock mount is known to rust out and allow unwanted suspension movement, which negatively affects handling and tire contact. The 2048 eliminates the rubber biscuit entirely, replacing it with a rigid double shear design that provides zero unwanted deflection and responds accurately to driver inputs at all speeds.

Is a wheel alignment required after installing the 2048?
Yes. Any front suspension modification on the GM F-Body platform can affect alignment settings. A professional four wheel alignment is recommended after installation to restore factory alignment specs or to set your preferred alignment for your specific driving application.

What spring rates work with the 2048?
The 2048 bracket is designed for use with 2 1/2 inch diameter racing coilover springs. When paired with the full UMI coilover kit, spring rates of 300 lb in (drag), 350 lb in (general street use), 450 lb in (performance street), and 550 lb in (autocross and road race) are available. The 2048 upper bracket is sold separately from springs and shocks.

Is this product compatible with the factory GM sway bar?
Yes. The UMI Performance 2048 is compatible with both the factory GM sway bar and the UMI 35mm performance sway bar. Contact UMI Performance to verify clearance before combining with other aftermarket sway bar brands.

Does the 2048 work with aftermarket A-arms?
The 2048 is compatible with A-arms that use the factory shock bolt location. UMI notes that fitment issues may arise when combining with some aftermarket A-arms or sway bars from other manufacturers. Always verify component compatibility before finalizing your suspension build.

What is the warranty on the UMI Performance 2048?
UMI Performance products are warranted against defects in materials and workmanship. Contact UMI Performance directly to confirm current warranty terms. Under the Magnuson-Moss Warranty Act, installing aftermarket suspension components such as the 2048 does not automatically void your vehicle manufacturer warranty on unrelated systems.

Where are these shock mounts manufactured?
The UMI Performance 2048 is 100 percent designed and manufactured in Philipsburg, PA, USA. The brackets are CNC laser cut from domestic USA steel and finished in a durable black powder coat.
