SKU: 28603

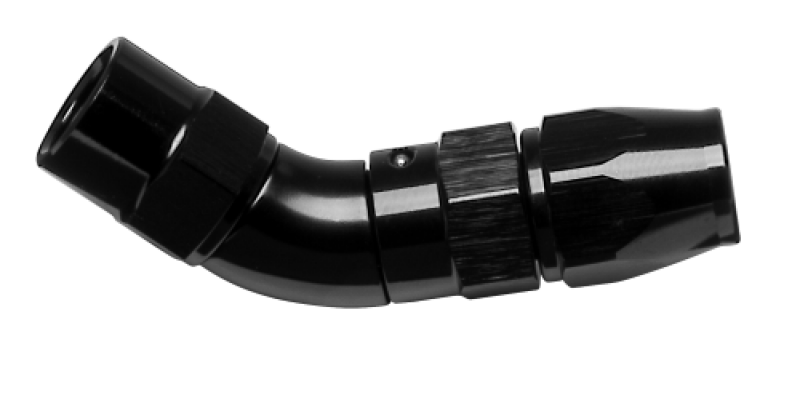

Vibrant -3AN 60 Degree High Flow Hose End Fitting for PTFE Lined Hose - Aluminum
This Vibrant Performance hose end fitting connects -3AN PTFE lined hose in fuel injection oil and nitrous systems for racing and street performance vehicles. The 60 degree angle enables tight bends in custom plumbing while delivering unrestricted flow. CNC machined from aluminum it weighs just 0.05 lbs for lightweight durability in high pressure applications.
Key Features
- High Flow Passages: Oversized internal bore reduces restrictions for maximum fluid throughput in fuel and oil lines
- 60 Degree Angle: Provides precise routing in confined engine bays without kinking the hose
- Aluminum Construction: 6061-T6 billet aluminum ensures strength at 1000+ PSI bursts while keeping weight minimal
- Black Anodized Finish: Resists corrosion and wear from fuels oils and harsh environments
- Reusable Swageless Design: Installs without crimping tools and allows disassembly for maintenance or hose reuse
Product Notes
- Pair with Vibrant Performance Ultra High Flow PTFE Hose PN 28900 series for best results
- Compatible with standard -3AN male female adapters and ports
- Handles ethanol race fuels and synthetic oils without degradation
Installation Notes
- Professional installation recommended.
- Torque to 15-20 ft-lbs using AN o-ring seals on mating threads
- Requires Vibrant PTFE hose insertion tool PN 28896 for secure assembly
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | Custom -3AN PTFE Hose Systems |
Why Choose Vibrant Performance?
- Engineered and manufactured in the USA for racing professionals
- Proven in NHRA drag racing and endurance motorsports
- Precision CNC machining guarantees leak-free performance
Frequently Asked Questions
-
Q: What hose size does this fitting work with?
A: Designed for -3AN ID 3/16 inch PTFE lined hose like Vibrant PN 28901 28903 including stainless steel braid -
Q: What is the material and thread size?
A: Black anodized 6061-T6 aluminum with standard -3AN 3/8-24 UNF swivel seat threads -
Q: Does it come with a warranty?
A: Backed by Vibrant Performance limited lifetime warranty against manufacturing defects
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 3 x 2 x 1 inches
- Weight: 0.05 lbs
