SKU: 11472 | UPC: 690092174576

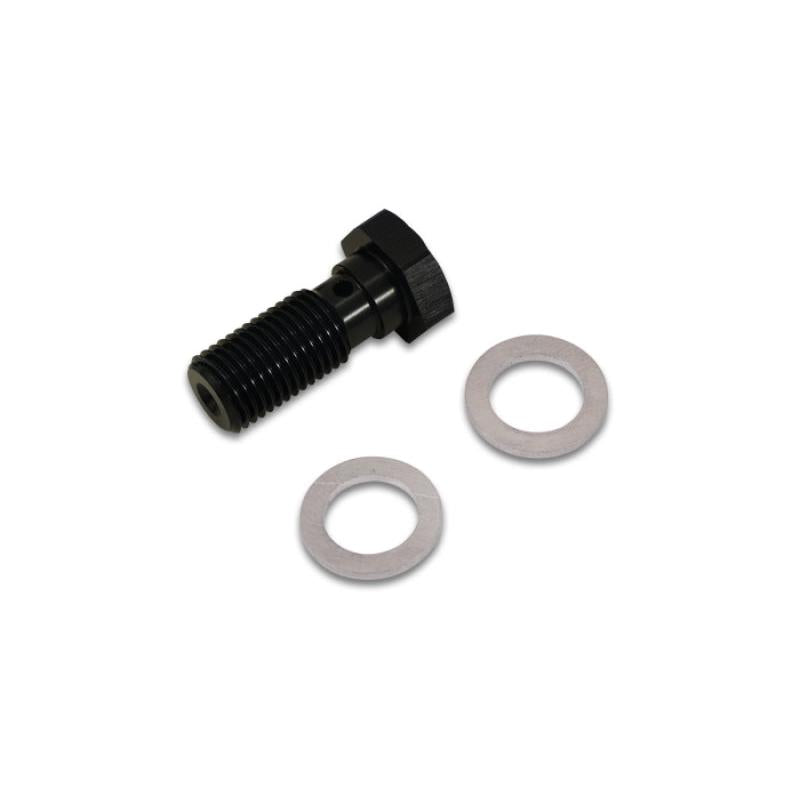

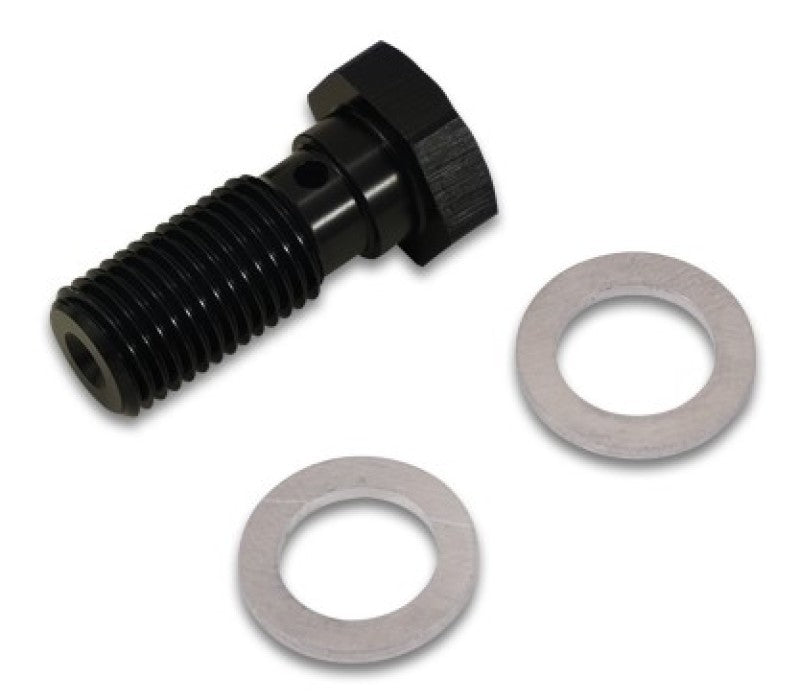

Vibrant Performance Banjo Bolt 7/16"-20 x 23mm Black Anodized Fits 1997-2004 Corvette 1998-2002 Camaro LS Engines
Vibrant Performance Banjo Bolt features 7/16"-20 thread size and 23mm length for secure connections in fuel oil and brake systems. This part fits GM LS engines Chevrolet Corvette C5 and Camaro models plus other performance vehicles using standard banjo fittings. Aluminum construction reduces weight while maintaining strength for reliable high-pressure performance.
Key Features
- 6061 Aluminum Alloy: Provides corrosion resistance and lightweight design at 0.05 lbs for better flow without added bulk
- Black Anodized Finish: Protects against wear and delivers clean professional look in engine bays
- 7/16"-20 UNF Thread: Matches OEM specs for GM LS fuel rails brakes and power steering lines ensuring leak-free seal
- 23mm Length: Exact dimension prevents bottoming out while allowing proper crush washer compression
- Includes Two Crush Washers: Copper washers ensure immediate installation with optimal sealing under pressure
Product Notes
- Inspect banjo fitting bore before install to confirm compatibility
- Replace crush washers every service to maintain seal integrity
- Small lightweight part fits easily in toolbox for trackside changes
Installation Notes
- Professional installation recommended.
- Torque to 20-25 ft-lbs using anti-seize on threads
- Compatible with -8AN banjo hose ends and standard M10 ports
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2004 | Chevrolet | Corvette | Base Z06 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 1998-2002 | Pontiac | Firebird | Formula Trans Am |
| 1999-2007 | Chevrolet | Silverado 1500 | LS Engine |
| 1997-2007 | Chevrolet | LS1 LS6 Engines | All |
Why Choose Vibrant Performance?
- Established leader in motorsport fabrication components
- CNC machined in USA for consistent tolerances
- Proven durability in racing and street applications
Frequently Asked Questions
-
Q: Will this banjo bolt fit GM LS1 fuel rail connections?
A: Yes it directly replaces OEM 7/16"-20 bolts on LS1 LS6 fuel rails and return lines with perfect thread match -
Q: What material and finish does it have?
A: Made from 6061-T6 aluminum alloy with black anodized coating for strength and resistance to fuels oils and corrosion -
Q: Does it come with warranty or installation support?
A: Vibrant stands behind quality contact support for install tips limited lifetime on manufacturing defects
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 2in x 2in x 1in
- Weight: 0.05 lbs
