Build a lightweight front drag setup with an application matched 5x120 WELD wheel.

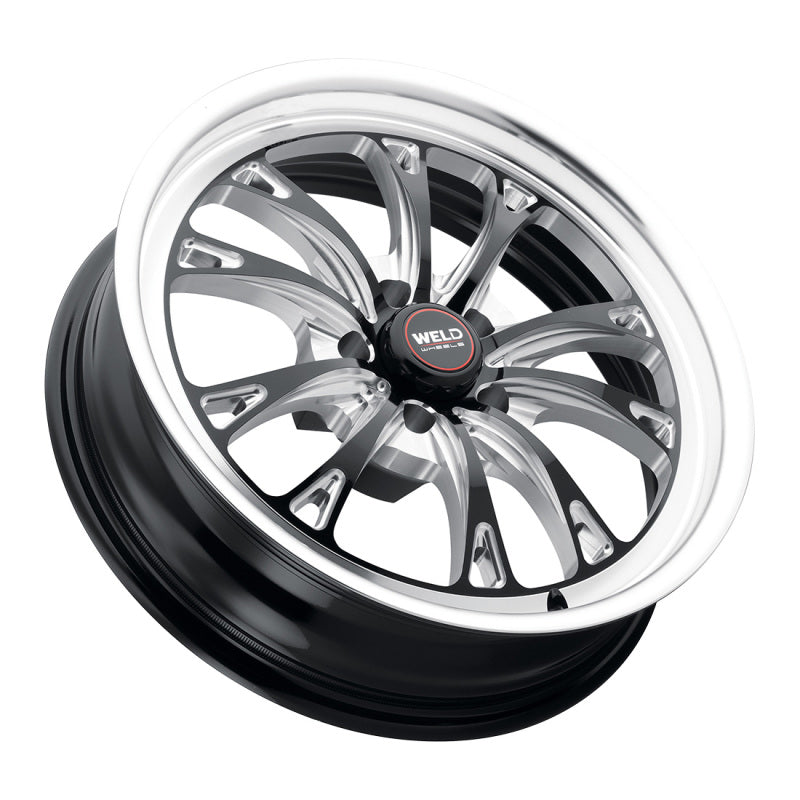

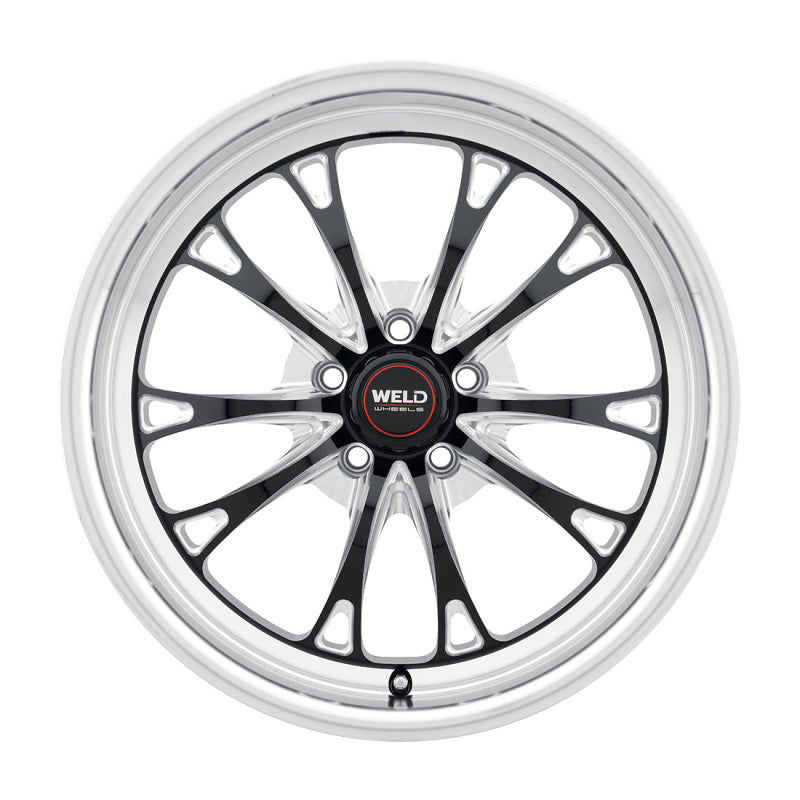

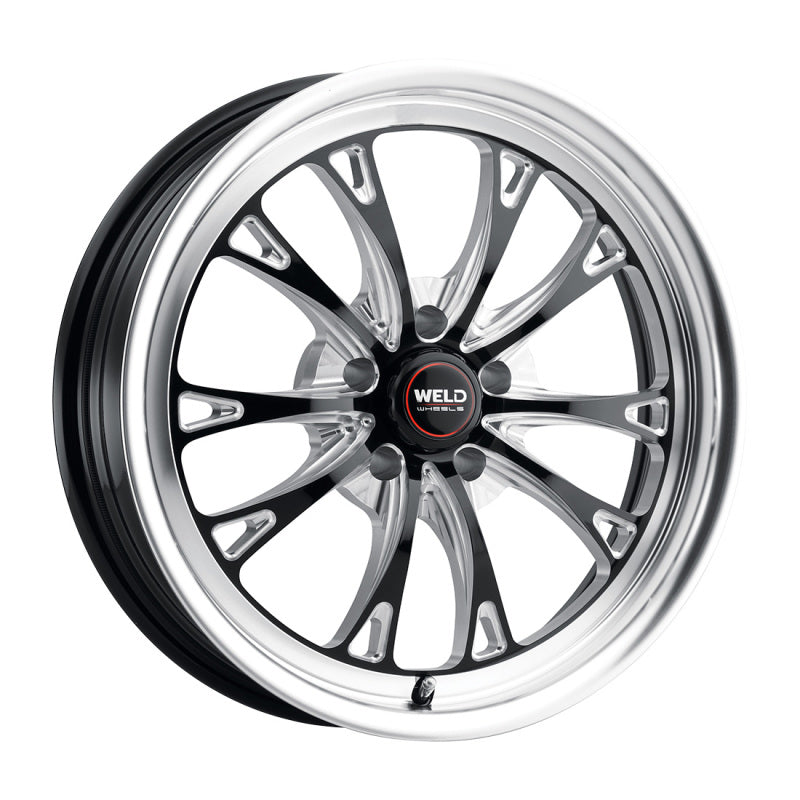

WELD Racing part S1578C022N23 is a narrow 18 by 5 inch Belmont Drag front wheel for verified Camaro and CTS-V applications.
Key Features
- For S1578C022N23, 18 by 5 inch front drag wheel
- 5x120 bolt pattern with 78.1 mm center bore
- Negative 23 mm offset and 2.1 inch backspacing
- Rotary formed one piece aluminum construction
- 1,600 lb load rating
- SFI 15.1 and 15.2 approved
- Gloss black milled finish with polished clear coated lip
Fitment
| Years | Make | Model | Position | Bolt Pattern |
|---|---|---|---|---|
| 2010-2024 | Chevrolet | Camaro | Front | 5x120 |
| 2009-2015 | Cadillac | CTS-V | Front | 5x120 |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | S1578C022N23 |
| Diameter | 18 in |
| Width | 5 in |
| Bolt Pattern | 5x120 |
| Offset | -23 mm |
| Backspacing | 2.1 in |
| Center Bore | 78.1 mm |
| Load Rating | 1,600 lb |
| Construction | One piece rotary formed aluminum |
| Position | Front |
What's Included
- S1578C022N23: 1 WELD Belmont Drag wheel
- 1 raised center cap
About WELD Racing
WELD Racing designs motorsport wheels using lightweight construction and application focused drag racing geometry.
FAQ
What is the S1578C022N23?It is the exact manufacturer part number for this front drag wheel.
Is this wheel sold individually?Yes. The package contains one wheel and one center cap.
What vehicles are verified?The supported applications are 2010-2024 Chevrolet Camaro and 2009-2015 Cadillac CTS-V.
Does it fit Dodge Hellcat models?No. The 5x120 bolt pattern is not the applicable Dodge pattern.
What is the wheel size?The wheel measures 18 inches in diameter and 5 inches wide.
What is the offset?The offset is negative 23 mm with 2.1 inches of backspacing.
What is the center bore?The center bore measures 78.1 mm.
Is a center cap included?Yes. A raised center cap is included.
Installation Instructions
- Before installing S1578C022N23, confirm 5x120 hub fitment, brake caliper clearance, and the required lug nut seat before mounting a tire.
- Mount and balance a compatible front drag tire using proper wheel service equipment.
- Install with the correct lug nuts and torque sequence, then recheck torque after the initial drive.
