Take Full Control of Your XKGLOW RGB Lighting Setup With Four Independent Channels

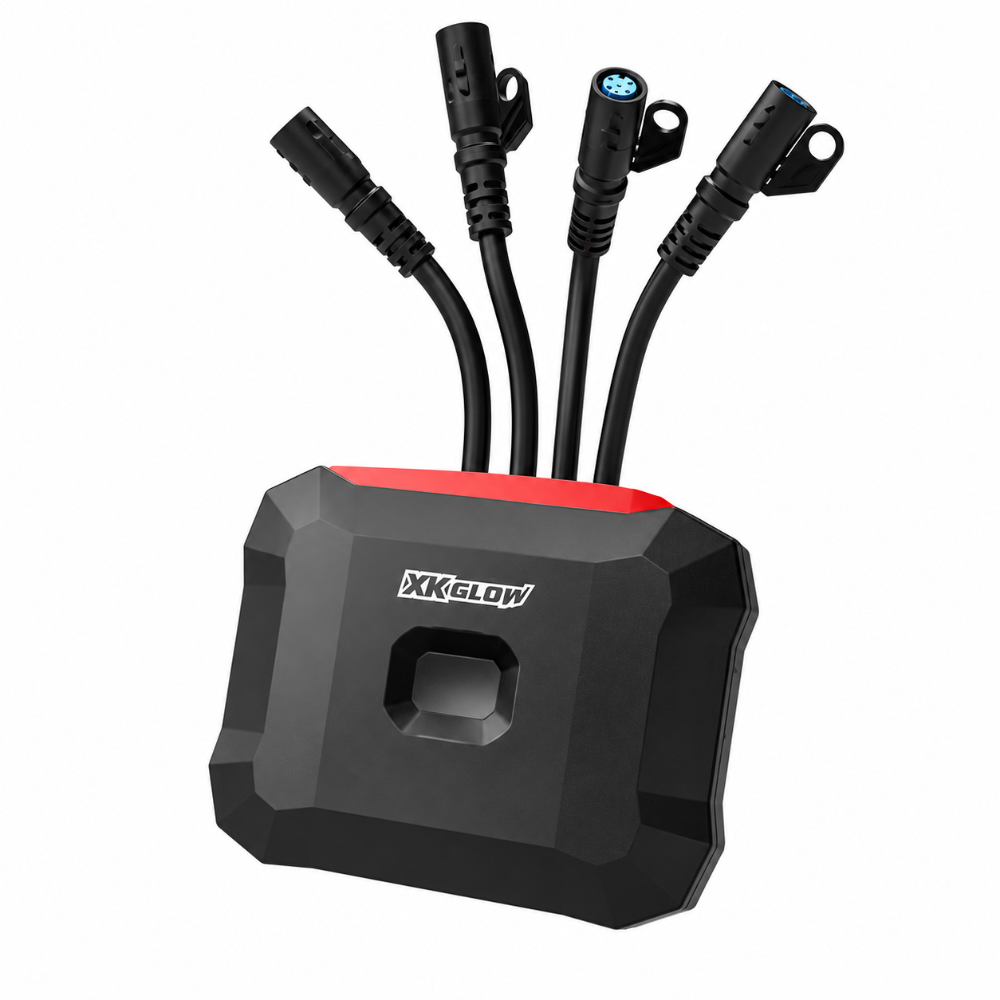

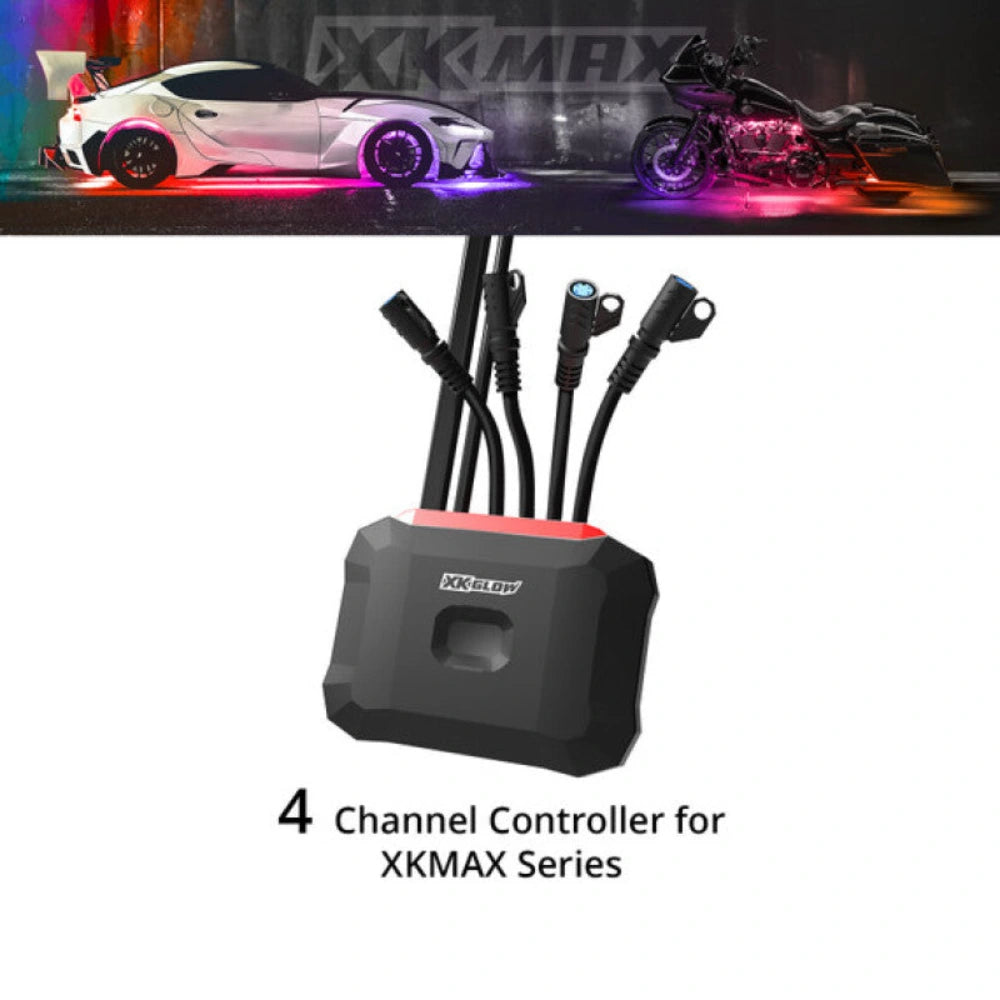

The XKGLOW XKGMX-CTL4-KIT is the XKmax 4-Channel LED Controller Kit, a universal add-on controller designed exclusively for XKGLOW addressable RGB and RGBW lighting products. With four independently controlled channels at 5A each and a maximum system output of 240W, the XKGMX-CTL4-KIT lets you assign and control separate lighting zones across your vehicle from a single controller, using the XKmax app or an included RF key fob.
Key Features
- 4 Independent Channels: Each of the four channels on the XKGMX-CTL4-KIT is independently addressable, allowing separate color, pattern, and timing control for up to four XKGLOW lighting zones simultaneously
- 5A Per Channel, 240W Max: With 5 amps of output per channel and a total system capacity of 240 watts, the XKGMX-CTL4-KIT supports large-scale lighting setups including full vehicle underglow, interior, and accent combinations
- XKGLOW RGB and RGBW Product Compatibility: The XKGMX-CTL4-KIT is designed for use exclusively with XKGLOW addressable RGB and RGBW products and is not compatible with non-XKGLOW LED strips or other brands
- XKmax App Control: Full smartphone control via the iOS and Android XKmax app for color selection, pattern assignment, brightness, speed, music sync, and per-channel programming
- RF Key Fob Compatible: The included RF key fob allows quick color and pattern switching without opening the app, useful for shows, parking lot displays, and quick adjustments
- Universal Fitment: The XKGMX-CTL4-KIT is not vehicle-specific; it works on any car, truck, SUV, or EV running compatible XKGLOW RGB or RGBW products
Specifications
| Detail | Value |
|---|---|
| Part Number | XKGMX-CTL4-KIT / MX-CTL4-KIT |
| UPC | 850066622667 |
| Channels | 4 independent channels |
| Output Per Channel | 5A |
| Max System Output | 240W |
| Compatible Products | XKGLOW addressable RGB and RGBW only |
| Control Methods | XKmax app (iOS/Android), RF key fob |
| Weight | 0.4 lbs |
| Fitment | Universal |
What's Included
- 1x XKGMX-CTL4-KIT 4-Channel controller
- 5A wiring harness
- RF key fob
- Mounting hardware
About XKGLOW
XKGLOW is a California-based LED lighting specialist producing addressable RGB and RGBW vehicle lighting for cars, trucks, SUVs, and EVs. Their XKmax platform is built around a consistent app and controller ecosystem that allows multiple XKGLOW products to be synchronized across a vehicle's exterior and interior lighting zones. XKGLOW products are backed by a 3-year warranty.
Related Parts on Our Site
- XK Glow XKGMX-CAR-CT XKmax Underglow Kit Tesla Cybertruck
- XK Glow XKGMX-BG-CT XKmax Body Gap LED Kit Tesla Cybertruck
Frequently Asked Questions
What is the XKGMX-CTL4-KIT?The XKGMX-CTL4-KIT is the XKGLOW XKmax 4-Channel LED Controller Kit. It is a universal add-on controller for XKGLOW RGB and RGBW addressable lighting products, providing four independent 5A channels with a 240W maximum output, controlled via the XKmax app or RF key fob.
Can I use the XKGMX-CTL4-KIT with non-XKGLOW LED strips?No. The XKGMX-CTL4-KIT is designed exclusively for use with XKGLOW addressable RGB and RGBW products. Non-XKGLOW LED strips use different protocols and are not compatible with the XKGLOW controller or app.
How many XKGLOW lighting zones can I run with the XKGMX-CTL4-KIT?The XKGMX-CTL4-KIT provides four independently controlled channels, so you can assign up to four separate XKGLOW lighting zones to individual channels, each with its own color, pattern, and timing.
Does the XKGMX-CTL4-KIT include a key fob?Yes. An RF key fob is included in the kit for quick color and pattern switching without using the XKmax smartphone app.
What is the maximum wattage the XKGMX-CTL4-KIT can handle?The XKGMX-CTL4-KIT supports a maximum system output of 240 watts total across all four channels, with a maximum of 5 amps per individual channel. Avoid exceeding these limits to prevent controller damage.
Does the XKGMX-CTL4-KIT work with the Tesla Cybertruck XKGLOW kits?The XKGMX-CTL4-KIT is designed for standard 12V XKGLOW RGB and RGBW products. The Tesla Cybertruck XKmax kits (XKGMX-CAR-CT and XKGMX-BG-CT) operate on 48V and have their own dedicated controller. Confirm compatibility with XKGLOW before pairing the CTL4-KIT with 48V products.
What warranty comes with the XKGMX-CTL4-KIT?XKGLOW covers the XKGMX-CTL4-KIT under their 3-year product warranty for defects in materials and workmanship.
Is the XKGMX-CTL4-KIT difficult to install?The XKGMX-CTL4-KIT uses pre-terminated connectors and a standard 12V power input. Installation difficulty depends on the number of zones being wired. Basic installation for a single underglow kit is straightforward; complex multi-zone builds may require additional wiring planning.
Installation Instructions
- Plan and route wiring for each of the four channels to the intended XKGLOW LED lighting zones before mounting the controller.
- Mount the XKGMX-CTL4-KIT controller in a protected location away from heat and moisture, such as behind a dashboard panel or under a seat.
- Connect the 5A wiring harness to a switched 12V power source and chassis ground.
- Plug each XKGLOW LED strip or product into its designated channel output connector on the controller.
- Download the XKmax app and pair the controller following the in-app pairing instructions.
- Pair the RF key fob to the controller per the included instructions.
- Test each channel individually from the app to verify all connected lighting zones function correctly.
