Stop the Clutch Pedal Where It Should Stop

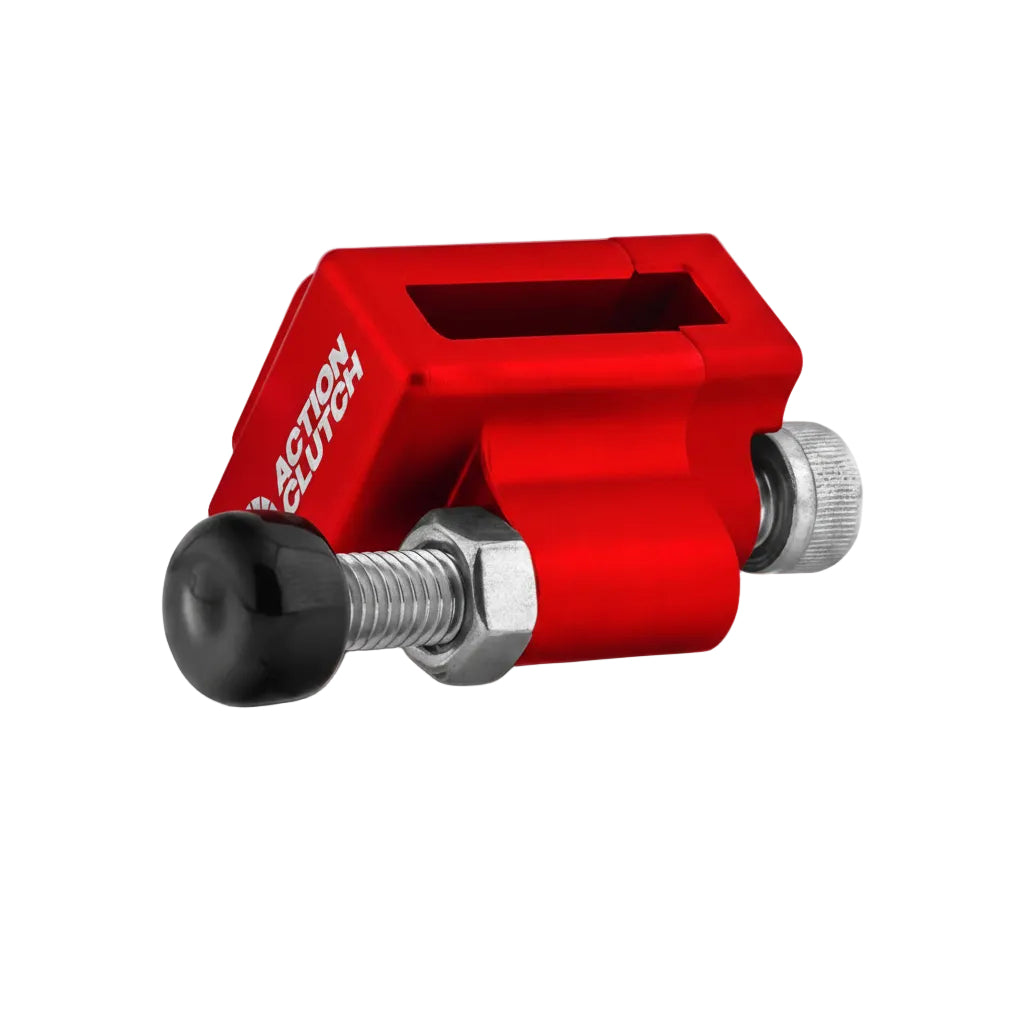

This Action Clutch universal race pedal stop sets a hard limit on clutch pedal travel so the pedal cannot be pushed past the point where the clutch is fully released. Removing that extra travel keeps the release bearing and fork from being driven beyond their working range, which matters most with a stiff performance clutch where a heavy footed release is easy.
Key Features
- Sets a positive limit on clutch pedal travel
- Prevents the release system being pushed past full disengagement
- Helps protect the release bearing, fork and pivot from overtravel damage
- Gives a consistent pedal stop so release point feel stays repeatable
- Universal design for most clutch pedal assemblies
- Adjustable position so travel can be tuned to the clutch fitted
- Exact manufacturer part number: AC-CSV10
Fitment
| Application | Requirement | Notes |
|---|---|---|
| Universal application | Access to the clutch pedal assembly and a firm mounting point | Suits most pedal boxes |
Confirm there is a solid mounting surface behind the clutch pedal and enough room to set the stop without fouling trim, wiring or the pedal return path.
Specifications
| Detail | Value |
|---|---|
| Brand | Action Clutch |
| Manufacturer part number | AC-CSV10 |
| Product type | Clutch pedal stop |
| Fitment | Universal |
| Adjustment | Position adjustable to set pedal travel |
| Quantity | One pedal stop |
What's Included
- One Action Clutch AC-CSV10 universal race pedal stop with its mounting hardware
About Action Clutch
Action Clutch builds performance clutch kits, flywheels and clutch actuation hardware for street and competition use. Its accessory range covers the supporting parts that keep a stiffer clutch working predictably, including pedal hardware that controls how far the release system is asked to travel.
FAQ
What problem does a pedal stop solve?It stops the clutch pedal travelling further than needed for full release, which keeps the release bearing and fork inside their intended range instead of being forced against their limits.
Do I need one with a stock clutch?It is aimed at performance clutches and hard use, where pedal effort is higher and overtravel is easy. A standard setup driven gently is less exposed.
Is the travel adjustable?Yes. The stop position is set during installation so the pedal comes to rest just past full disengagement.
How do I know where to set it?Set it so the clutch fully releases and the gearbox selects cleanly with the pedal against the stop, without the pedal reaching a hard mechanical limit inside the release system.
Will it change pedal feel?It gives a defined stop at the bottom of the stroke, so the pedal feel becomes more consistent rather than lighter or heavier.
Does it fit any car?It is a universal design for most pedal assemblies, so a firm mounting point behind the clutch pedal and enough clearance are the requirements.
Can it cause clutch drag if set wrongly?Yes. Setting the stop too early can prevent full release, so verify clean gear selection with the pedal against the stop before driving.
Is any drilling required?That depends on the vehicle pedal box. Some cars offer an existing mounting point while others need a bracket or fastener location prepared.
Should it be rechecked after installation?Yes. Recheck the setting after a short drive and again once a new clutch has bedded in, because release point can shift slightly.
Installation Instructions
- Park on a level surface, apply the parking brake and make sure the engine is off before working in the footwell.
- Remove any lower trim panel needed to reach the back of the clutch pedal.
- Identify a solid mounting point that lines up with the pedal at the bottom of its stroke.
- Fit the stop loosely so its position can still be adjusted.
- Press the clutch pedal and find the point where the clutch fully releases and gears select cleanly.
- Set the stop just past that point so the pedal cannot travel further into the release system.
- Tighten the stop and confirm it cannot move under firm pedal pressure.
- Check that the pedal returns fully and that the stop does not interfere with trim, carpet or wiring.
- Start the engine and confirm clean selection of every gear with the pedal against the stop.
- Refit the trim, then recheck the setting after a short drive and again after a new clutch has bedded in.
