Replace the Factory Plastic Rear Fascia on Your 2007-2014 Toyota FJ Cruiser with Serious Off-Road Steel Protection Using the ARB 5620010 Rear Bar

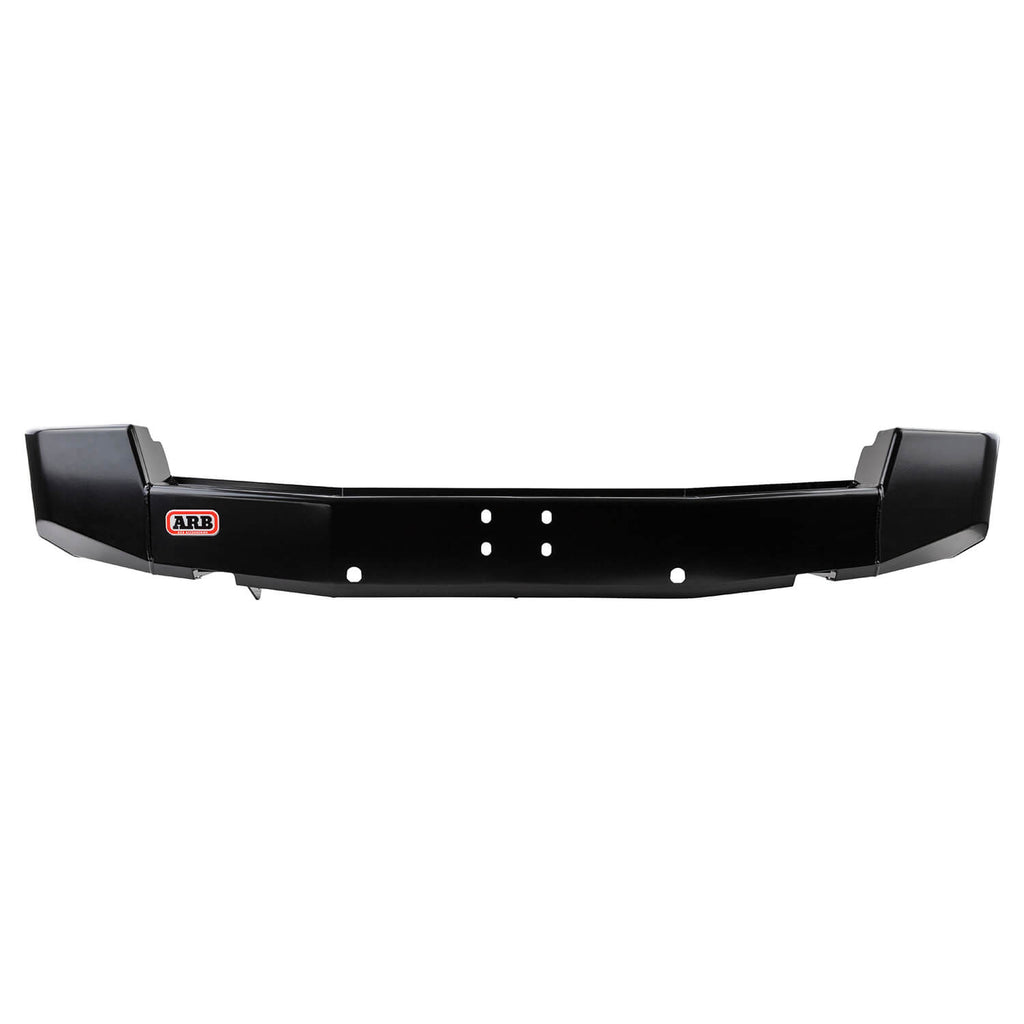

The ARB 5620010 is a vehicle-specific steel rear bumper engineered for the 2007-2014 Toyota FJ Cruiser US specification. It replaces the factory plastic rear fascia with a heavy-duty powder coated steel bar that protects the rear corners, lower panels, and tail section of the FJ Cruiser during off-road use. The 5620010 is purpose-built to match the unique stance and rear geometry of the FJ Cruiser, preserving departure angles optimized for trail use while integrating a full set of off-road and utility features directly into the bar structure. The bumper is designed to retain the factory reverse sensors and incorporates recessed round stop, tail, indicator, and fog light cavities so factory lighting function is maintained. A center grip tape step pad allows easy access to the cargo area and roof rack while on the trail. Dual hi-lift jacking points are built into the bar for recovery situations, and a single bolt-on tow point provides towing capability. This is the US-specification variant of the ARB FJ Cruiser rear bar.
Note: not compatible with the factory-equipped tow bar, and not suitable for fitment to 2013 FJ models with the OE long-range tank.
Key Features
- Vehicle-specific steel rear bumper for 2007-2014 Toyota FJ Cruiser US spec
- Dual hi-lift jacking points built into the bar for recovery use
- Center grip tape step pad for cargo area and roof rack access
- Recessed round stop/tail, indicator, and fog light cavities retain factory lighting function
- Retains factory original equipment reversing sensors
- Single bolt-on tow point
- Departure angles optimized for off-road terrain
- Incorporates recess to allow fitment of most 35-inch spare tires
- Durable powder coat finish for weather and corrosion resistance
- Compatible with optional Hayman Reese heavy-duty towing system (sold separately)
Note: not compatible with factory-equipped OE tow bar
Note: not suitable for 2013 FJ Cruiser models with OE long-range tank
Vehicle Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2007-2014 | Toyota | FJ Cruiser | US Spec (exc. MY13 with OE long-range tank) |
Specifications
| Detail | Value |
|---|---|
| Part Number | 5620010 |
| Brand | ARB |
| Material | Steel |
| Finish | Powder coat black |
| Jacking Points | Dual hi-lift jack points |
| Tow Point | Single bolt-on |
| Light Cavities | Recessed round stop/tail, indicator, fog |
| Step Surface | Center grip tape pad |
| Reverse Sensor Compatible | Yes |
| Fitment | 2007-2014 Toyota FJ Cruiser US Spec |
| Country of Manufacture | Australia |
| UPC | 00881348008091 |

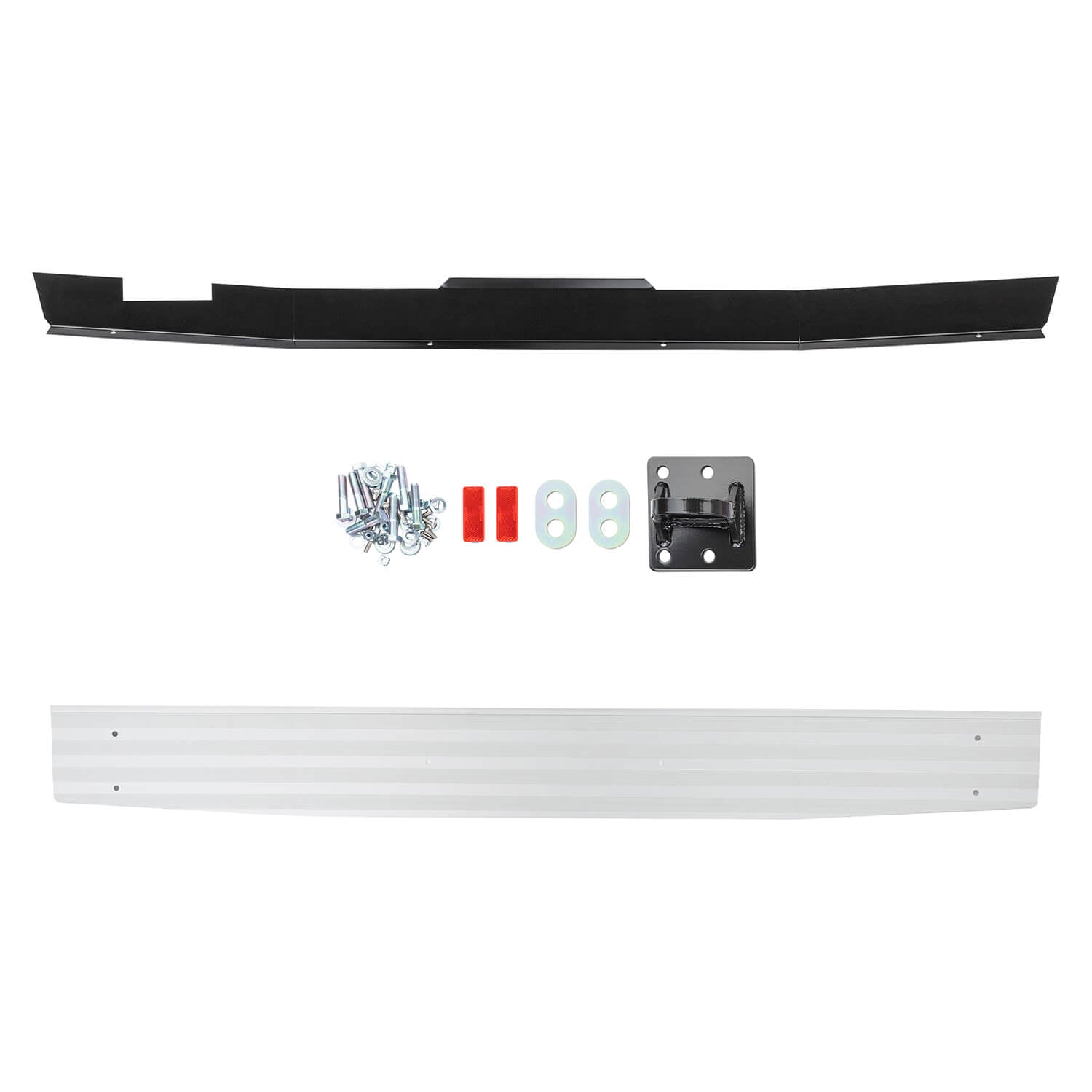

What's Included
- 1x ARB 5620010 rear bumper bar
- Mounting hardware and installation hardware kit
- ARB installation instructions
About ARB
ARB 4x4 Accessories is an Australian manufacturer of off-road equipment founded in 1975, producing bull bars, rear bars, air lockers, suspension systems, and expedition equipment used by overlanders, trail runners, and off-road enthusiasts worldwide. ARB designs and tests all products in-house and backs them with a limited warranty through authorized ARB dealers.
Related Parts on Our Site
Frequently Asked Questions
What is the ARB 5620010?
The ARB 5620010 is a vehicle-specific steel rear bumper for the 2007-2014 Toyota FJ Cruiser US specification. It replaces the factory plastic rear fascia with a purpose-built off-road steel bar featuring dual hi-lift jacking points, a grip tape step pad, recessed lighting cavities, and a bolt-on tow point. UPC: 00881348008091.
Does the ARB 5620010 fit all 2007-2014 FJ Cruiser models?
The 5620010 fits the 2007-2014 Toyota FJ Cruiser US specification. It is not compatible with the factory-equipped OE tow bar and is not suitable for fitment to 2013 FJ Cruiser models equipped with the OE long-range fuel tank. Confirm your specific model year and equipment level before ordering.
Does the 5620010 retain the factory backup sensors?
Yes. The ARB 5620010 is designed to retain the factory original equipment reversing sensors. The bumper incorporates the factory sensor mounting locations so the OE reverse sensor function is preserved after installation.
What size spare tire fits in the ARB 5620010 tire recess?
The ARB 5620010 rear bar incorporates a recess that allows fitment of most 35-inch spare tires. Tire carrier hardware to mount a swing-out carrier is available as a separate ARB accessory. Confirm specific tire and wheel diameter clearance for your spare before ordering a carrier.
Is the ARB 5620010 compatible with a Hayman Reese tow bar?
Yes. The 5620010 is compatible with an optional Hayman Reese heavy-duty towing system available from ARB. Note that the bumper is not compatible with the factory-equipped OE tow bar and requires the Hayman Reese system when towing is needed after installation.
What are the hi-lift jacking points used for?
The dual hi-lift jacking points built into the ARB 5620010 are designed to accept a hi-lift jack for recovery situations on the trail. Hi-lift jacking is a common recovery technique in off-road use where a floor jack cannot access the vehicle due to terrain. The ARB-built points provide a secure, purpose-built jacking location at the rear of the vehicle.
Does the 5620010 affect departure angle on the FJ Cruiser?
The ARB 5620010 is engineered with departure angles optimized for off-road terrain. The bar profile is designed to maintain or improve the factory FJ Cruiser rear departure angle, meaning it does not significantly reduce the clearance behind the rear axle when navigating steep trail exits compared to the factory plastic fascia.
What is the finish on the ARB 5620010?
The ARB 5620010 is finished in a hard-wearing black powder coat. ARB also offers color coding to match individual vehicle paint colors through authorized ARB dealers for custom builds, though the standard product ships in black powder coat.
Does the ARB 5620010 come with mounting hardware?
Yes. The ARB 5620010 rear bar includes the necessary mounting hardware and an ARB installation instruction sheet. Professional installation by an authorized ARB dealer or experienced off-road fabrication shop is recommended to ensure proper fit and wiring integration.
Installation Instructions
- Safely lift and support the vehicle on jack stands with adequate rear access.
- Disconnect the factory rear lighting harness connectors and reverse sensor connectors accessible behind the factory rear fascia.
- Remove the factory rear bumper fascia, step pad, and any factory tow hitch hardware if present.
- Remove the factory bumper beam if required per the ARB instruction sheet for your specific year.
- Test-fit the ARB 5620010 to the chassis mounting locations to verify fitment before final installation.
- Route the lighting and reverse sensor wiring harnesses through the ARB bumper wiring access points per the ARB instruction sheet.
- Attach the ARB 5620010 to the chassis mounting points using the provided hardware. Hand-thread all fasteners before torquing.
- Torque all mounting bolts to ARB specification per the included instruction sheet.
- Connect the lighting and reverse sensor harness connectors. Test all lights and reverse sensors for correct operation before finalizing installation.
- Install the grip tape step pad to the center recess per the ARB instruction sheet.
- Verify the bumper sits flush and level relative to the body panels and that departure angle is not restricted by any panel contact.
