SKU: 156-5802 | UPC: 672036019433

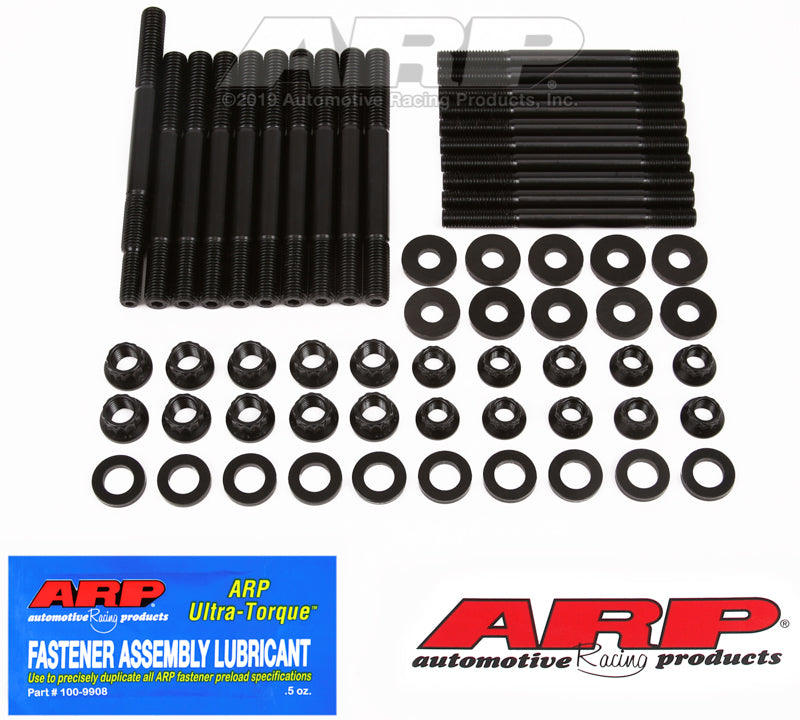

ARP Main Stud Kit for 1996-2014 Ford 4.6L & 5.4L 2V/3V/4V without Windage Tray
ARP main stud kit 156-5802 upgrades Ford Modular engines with 4.6L and 5.4L displacement in 2V 3V or 4V configurations lacking windage tray. This kit prevents main cap walk and fretting while safeguarding engine block threads during high-stress operation. Kits include all necessary components for direct replacement and secure clamping in performance builds.
Key Features
- Material: 8740 chrome moly steel heat-treated in-house to 190,000 psi tensile strength
- Threads: Precision J-form rolled after heat-treat for threads 2000% stronger than off-the-shelf fasteners
- Components: Hardened parallel-ground washers paired with high-quality nuts for even load distribution
- Finish: Black oxide coating resists corrosion in engine environments
- Design: Specific for engines without windage tray no standoff studs needed
Product Notes
- Full kit addresses common issues in stock main caps under boosted or high-rpm conditions
- Inspect block threads prior to installation for optimal performance
- Packaged to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Torque to ARP specifications included with kit use thread lubricant
- Fits stock main caps ARP main studs only no bolt conversion
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996-2004 | Ford | Mustang | 4.6L 2V/4V |
| 1997-2010 | Ford | F-150 | 4.6L/5.4L 2V/3V |
| 1997-2014 | Ford | Expedition | 4.6L/5.4L 2V/3V |
| 1998-2014 | Lincoln | Navigator | 5.4L 2V/3V |
| 1999-2004 | Ford | F-150 SVT Lightning | 5.4L 2V |
| 2004-2008 | Ford | F-150 Heritage | 4.6L/5.4L 2V/3V |
| 2005-2010 | Ford | F-150 | 5.4L 3V |
Why Choose ARP?
- ARP fasteners power wins in NHRA IHRA and other racing series
- Controlled in-house processes from forging to thread rolling
- Exact OEM-spec dimensions with added strength for reliability
Frequently Asked Questions
-
Q: Does this fit 2005 Ford F-150 5.4L 3V?
A: Yes fits 1997-2010 F-150 5.4L 3V models without windage tray confirm no tray installed. -
Q: What makes these studs stronger than OEM?
A: 8740 chromoly construction with post-heat-treat rolled J-form threads provides 2000% greater thread strength at 190,000 psi. -
Q: What warranty applies?
A: ARP offers lifetime warranty on fasteners against failure when properly installed per instructions.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: ARP branded box 10 x 7 x 2 inches
- Weight: 1.85 lbs
