SKU: 156-5002 | UPC: 672036038007

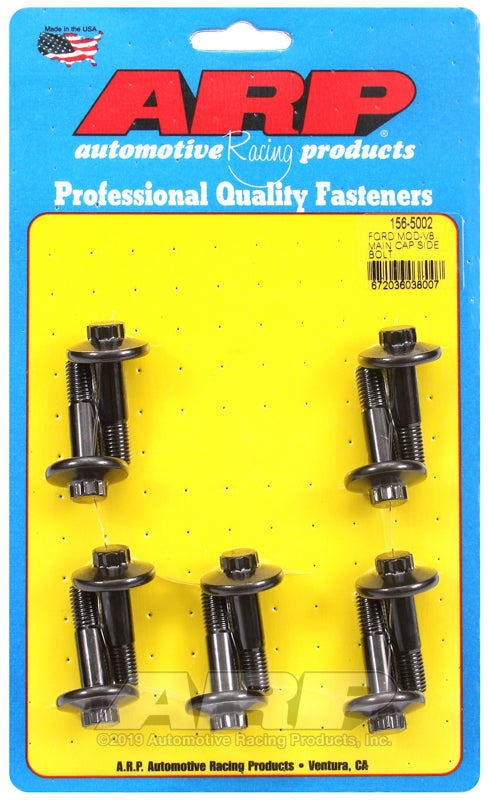

ARP Main Stud Kit for Ford Side Bolts Late Aluminum Block 5.0L Coyote 2011+
ARP main stud kit 156-5002 secures main caps in Ford late aluminum blocks with side bolts including 5.0L Coyote engines in Mustang and F-150. These studs prevent main cap walk and fretting while safeguarding block threads during high horsepower builds. Kits include all necessary hardened washers nuts and standoff studs for windage tray mounting where equipped.
Key Features
- 8740 Chrome Moly Construction: Heat-treated in-house to 190000 PSI tensile strength for extreme durability in boosted or high RPM applications
- Precision Rolled J-Form Threads: Rolled after heat treatment creating threads 2000% stronger than cut threads to resist fatigue and stripping
- Hardened Parallel Ground Washers: Ensure even load distribution and prevent galling during installation and operation
- Black Oxide Finish: Provides corrosion resistance and reduces friction for reliable long-term performance
- USA Manufactured: Built with ARP quality control for consistent fit and strength in racing or street engines
Product Notes
- Complete kit includes studs nuts and washers for direct replacement
- Use ARP Ultra-Torque lubricant for accurate torque values
- Ships in protective packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Torque studs to ARP specifications using calibrated torque wrench in sequence
- Compatible with OEM main caps and windage trays on equipped engines
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2023 | Ford | Mustang | GT 5.0L Coyote |
| 2015-2020 | Ford | Mustang Shelby | GT350 5.2L Voodoo |
| 2011-2020 | Ford | F-150 | 5.0L Coyote |
| 2004-2010 | Ford | F-150 | 5.4L Modular Late Alum Block |
| 2005-2010 | Ford | Mustang | GT 4.6L Modular Late Alum Block |
| 2007-2014 | Ford | Expedition | 5.4L Modular Late Alum Block |
Why Choose ARP?
- Decades of motorsport use in NHRA NASCAR and drag racing
- 8740 steel exceeds OEM strength for forced induction setups
- Precision manufacturing ensures perfect fit without block damage
Frequently Asked Questions
-
Q: Does this fit 2015+ Coyote 5.0L Mustang GT?
A: Yes ARP 156-5002 fits all 2011-2023 Ford Mustang 5.0L Coyote engines with side bolt late aluminum blocks -
Q: What material are the studs made from?
A: 8740 chrome moly steel heat-treated to 190000 PSI with black oxide finish and rolled threads for maximum strength -
Q: What is the warranty and installation torque?
A: ARP provides defect warranty follow provided torque specs with ARP lube for 145-155 ft-lbs inner studs depending on application
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure ARP box approximately 12 x 8 x 2 inches
- Weight: 1.75 lbs
