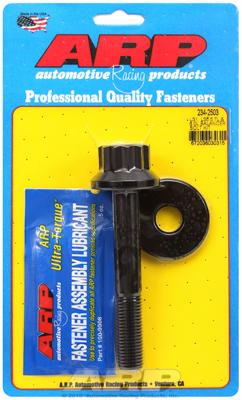

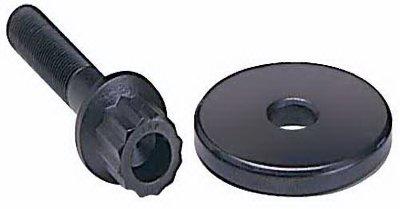

This ARP performance fastener, stud, bolt, tool, or assembly is the GM LS1/LS6 5.7L/6.0L Balancer Bolt Kit for 2004-2007 Cadillac CTS. Confirm the exact engine or vehicle application, thread size, length, material, strength series, included quantity, installation lubricant, tightening sequence, and current ARP torque specification before ordering.
Key Features
- 8740 Chromoly Construction: Heat treated steel provides 200000 psi tensile strength to withstand boost and high horsepower builds.

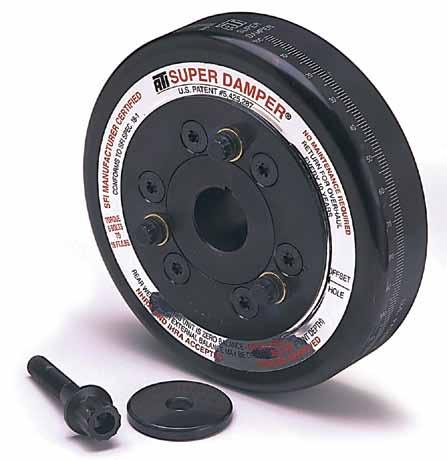

- Matched Heavy Duty Washer: Distributes load evenly across the balancer hub for consistent performance.
- Forged 8740 chromoly steel heat treated to 200000 psi tensile strength with black oxide finish for corrosion resistance.
- Rolled Threads: Ensure maximum thread strength galling resistance and precise torque values every time.
- 12-Point Head Design: Allows secure wrench grip even under high torque without stripping.
- Store in dry area to prevent corrosion on high strength steel.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2004-2007 | Cadillac | CTS | V |
| 2010-2015 | Chevrolet | Camaro | SS |
| 1998-2002 | Chevrolet | Camaro | Z28 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 2012-2015 | Chevrolet | Camaro | ZL1 |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car |
| 1997-2013 | Chevrolet | Corvette | Base |
| 2010-2013 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001-2004 | Chevrolet | Corvette | Z06 |
| 2009-2013 | Chevrolet | Corvette | ZR1 |
| 2014-2015 | Chevrolet | SS | Base |
| 2005-2006 | Chevrolet | SSR | Base |
| 2006-2008 | Chevrolet | Trailblazer | SS |
| 1998-2002 | Pontiac | Firebird | Formula |
| 1998-2002 | Pontiac | Firebird | Trans Am |
| 2009 | Pontiac | G8 | GXP |
| 2004-2006 | Pontiac | GTO | Base |
Specifications
| Brand | ARP |
|---|---|
| Manufacturer Part Number | 234-2503 |
| Product Type | Hardware Kits - Other |
| Condition | New |
| Configuration | GM LS1/LS6 5.7L/6.0L Balancer Bolt Kit |
| 8740 Chromoly Construction | Heat treated steel provides 200000 psi tensile strength to withstand boost and high horsepower builds |
| Rolled Threads | Ensure maximum thread strength galling resistance and precise torque values every time |
| 12-Point Head Design | Allows secure wrench grip even under high torque without stripping |
| Matched Heavy Duty Washer | Distributes load evenly across the balancer hub for consistent performance |
| Application Specific Engineering | Developed for LS1/LS6 crank snout dimensions fits 1997-2015 GM LS vehicles perfectly |
| Q | Does this kit fit LS2 or LS3 engines in later Corvettes or Camaros? A: Designed specifically for LS1/LS6 balancer bolt pattern and crank snout verify your engine code as LS2/LS3 may use ARP 234-2501 or similar |
| Method | UPS Ground USPS Priority |
| Availability | In stock - ships same or next business day |
| Packaging | Secure poly bag in 4 x 3 x 1 inch box |
| Weight | 0.13 lbs |
| Features 8740 Chromoly Construction | Heat treated steel provides 200000 psi tensile strength to withstand boost and high horsepower builds |
What's Included
One new ARP hardware kits - other in the exact configuration and quantity identified by this listing. Brackets, wiring, air lines, fittings, switches, fasteners, fitting kits, fluids, covers, and accessories are included only when expressly stated for this exact part.
About ARP
Automotive Racing Products manufactures high-performance studs, bolts, nuts, washers, wheel hardware, assembly tools, and installation lubricants for engine, drivetrain, chassis, and racing applications. Thread dimensions, material, preload method, lubricant, torque, and included quantity remain exact-part specific.
Important Disclosures
- California Proposition 65 warning applies. Review the current manufacturer warning before handling or installation.
Related Parts
- Shop all ARP products
- ARP SB Chevy LS 03 and Earlier Head Stud Kit
- ARP SB Chevy LS1/LS6 5.7L/6.8L Hex Head Bolt Kit
- ARP SB Chevy LS6 Hex Head Bolt Kit
Frequently Asked Questions
How do I confirm the GM LS1/LS6 5.7L/6.0L Balancer Bolt Kit fits my application?
Match the exact engine family or vehicle, component location, thread diameter and pitch, under-head length, material, strength series, and every current ARP application note.
Can I reuse the factory torque value with this ARP hardware?
Not automatically. Use ARP's current instructions for the exact part, material, lubricant, tightening sequence, and preload method. Factory torque values may be based on different hardware and friction.
What is included with this ARP kit?
Only the studs, bolts, nuts, washers, lubricant, and tools expressly listed for this exact part number are included. Verify the required quantity before disassembly.
Installation Instructions
- Confirm ARP part number 234-2503, the complete application, and every required supporting component before beginning work.
- Clean and inspect all mating threads and components, then verify thread engagement, length, washers, nuts, lubricant, and required preparation before assembly.
- Follow ARP's current tightening sequence, lubricant instructions, torque or stretch method, and any retorque procedure for this exact part.
- Verify clearance, preload, fastener seating, and normal component operation before returning the vehicle or engine to service.
