ARP Late Model GM/Camaro/Firebird/Corvette M12x1.50in Wheell Stud Kit

ARP
ARP100-7713
672036030988
Wheel Studs
3 Units In Stock - Ships Next Business Day
$ 40.73
$ 40.73

SKU: 100-7713 | UPC: 672036030988

ARP Late Model GM/Camaro/Firebird/Corvette M12x1.50in Wheel Stud Kit 1993-2002 F-Body & 1997-2013 Corvette

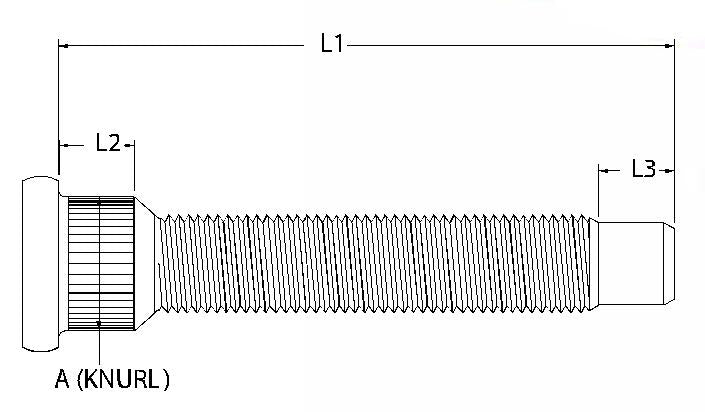

ARP wheel stud kit upgrades late model GM vehicles with M12x1.50 studs measuring 3.94 inches overall length and 1.594 inch knurl. Fits 1993-2002 Chevrolet Camaro Z28 Pontiac Firebird Formula and 1997-2013 Chevrolet Corvette models for dependable wheel retention. Delivers consistent clamp load to handle high torque and heat cycles on street or track.

Key Features

  • ARP625 Alloy Construction: High-strength material rated at 260000 PSI tensile strength resists fatigue and stretching under extreme loads
  • Stud-Over-Bolt Design: Minimizes knuckle or hub thread wear while providing even torque distribution across multiple lug nuts
  • Precision Knurling: 1.594 inch knurl length grips hub bore securely without hammering for fast professional install
  • Rolled Threads: Increases fatigue life by 1000 percent over cut threads for repeated wheel changes and track abuse
  • 60 Degree Seat: Matches OEM conical lug nuts for full contact and maximum holding power in all conditions

Product Notes

  • 10 studs per kit covers one vehicle completely
  • Store in dry area to prevent corrosion on chrome moly finish
  • Free ground shipping on orders over $99 in continental US

Installation Notes

  • Professional installation recommended.
  • Clean hub threads thoroughly and apply ARP Ultra-Torque lubricant on stud threads
  • Torque to 115-140 ft-lbs in star sequence check after 50-100 miles and heat cycles

This Part Fits

Year Make Model Submodel
1993-2002 Chevrolet Camaro Z28
1993-2002 Pontiac Firebird Formula
1992-2012 Chevrolet Corvette Base
1996 Chevrolet Corvette Collector's Edition
1996-1996 Chevrolet Corvette Grand Sport
2010-2012 Chevrolet Corvette Grand Sport
1993 Chevrolet Corvette 40th Anniversary Edition
1998 Chevrolet Corvette Indianapolis 500 Pace Car
2001-2004 Chevrolet Corvette Z06
2006-2012 Chevrolet Corvette Z06
1992-1995 Chevrolet Corvette ZR-1
2009-2012 Chevrolet Corvette ZR1

Why Choose ARP?

  • 70+ years supplying fasteners to NHRA Top Fuel and NASCAR teams
  • Every batch tested for tensile strength and thread accuracy
  • Application-engineered dimensions fit GM hubs without modification

Frequently Asked Questions

  • Q: Will this kit fit my 1998 Camaro Z28 with LS1 engine?
    A: Yes ARP 100-7713 directly replaces OEM studs on all 1993-2002 4th gen Camaro including Z28 SS and V6 models using M12x1.50 hubs
  • Q: What material are these wheel studs made from?
    A: Forged ARP625 chrome moly steel alloy with rolled threads for 260000 PSI tensile strength and superior fatigue resistance versus stock studs
  • Q: What torque specs and warranty apply?
    A: Torque to 115-140 ft-lbs using ARP lube ARP provides limited lifetime warranty against defects in materials or workmanship

Shipping & Handling

  • Method: UPS Ground or USPS Priority
  • Availability: In stock - ships same or next business day
  • Packaging: Original ARP box 5.5 x 4.5 x 1.75 inches
  • Weight: 1.38 lbs
