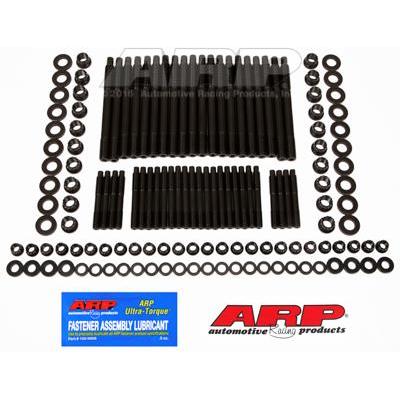

This ARP performance fastener, stud, bolt, tool, or assembly is the SB Chevy GEN III/IV LSX 12pt Head Stud Kit for 2004-2005 Cadillac CTS. Confirm the exact engine or vehicle application, thread size, length, material, strength series, included quantity, installation lubricant, tightening sequence, and current ARP torque specification before ordering.
Key Features
- Stud Dimensions: 10 studs at 3/8-24 thread x 7.800 inch under head length fit LS cathedral port heads perfectly.
- ARP2000 Alloy Studs: 220000 PSI tensile strength handles 1500+ HP builds with consistent preload over repeated heat cycles.
- 12-Point Nuts: 12mm socket compatible nuts allow precise torquing up to 75 ft-lbs without stripping or cam-out.
- Beveled Hardened Washers: 20 included washers distribute load evenly across head preventing distortion and sealing issues.
- Forged ARP2000 alloy steel with 220000 PSI tensile strength and 135000 PSI yield strength ideal for nitrous supercharger or turbo applications.
- Black Oxide Finish: Resists corrosion in fuel and oil environments for long-term durability in street or track use.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2004-2005 | Cadillac | CTS | V |
| 1998-2002 | Chevrolet | Camaro | Z28 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car |
| 1997-2004 | Chevrolet | Corvette | Base |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001-2004 | Chevrolet | Corvette | Z06 |
| 1998-2002 | Pontiac | Firebird | Formula |
| 1998-2002 | Pontiac | Firebird | Trans Am |
| 2004 | Pontiac | GTO | Base |
Specifications
| Brand | ARP |
|---|---|
| Manufacturer Part Number | 234-4319 |
| Product Type | Head Stud & Bolt Kits |
| Condition | New |
| Configuration | SB Chevy GEN III/IV LSX 12pt Head Stud Kit |
| ARP2000 Alloy Studs | 220000 PSI tensile strength handles 1500+ HP builds with consistent preload over repeated heat cycles |
| 12-Point Nuts | 12mm socket compatible nuts allow precise torquing up to 75 ft-lbs without stripping or cam-out |
| Beveled Hardened Washers | 20 included washers distribute load evenly across head preventing distortion and sealing issues |
| Stud Dimensions | 10 studs at 3/8-24 thread x 7.800 inch under head length fit LS cathedral port heads perfectly |
| Black Oxide Finish | Resists corrosion in fuel and oil environments for long-term durability in street or track use |
| Q | Will this kit fit LS2 or later rectangle port heads? A: Designed for Gen III/IV LS1 LS6 cathedral port heads stud length optimized for these blocks and heads LS2 may require different part number |
| Method | UPS Ground or FedEx |
| Availability | In stock - ships same or next business day |
| Packaging | Secure ARP box approximately 11 x 9 x 1.5 inches |
| Weight | 3.1 lbs |
| Key Features ARP2000 Alloy Studs | 220000 PSI tensile strength handles 1500+ HP builds with consistent preload over repeated heat cycles 12-Point |
What's Included
One new ARP head stud & bolt kit in the exact configuration and quantity identified by this listing. Brackets, wiring, air lines, fittings, switches, fasteners, fitting kits, fluids, covers, and accessories are included only when expressly stated for this exact part.
About ARP
Automotive Racing Products manufactures high-performance studs, bolts, nuts, washers, wheel hardware, assembly tools, and installation lubricants for engine, drivetrain, chassis, and racing applications. Thread dimensions, material, preload method, lubricant, torque, and included quantity remain exact-part specific.
Important Disclosures
- California Proposition 65 warning applies. Review the current manufacturer warning before handling or installation.
Related Parts
- Shop all ARP products
- ARP SB Chevy LS 03 and Earlier Head Stud Kit
- ARP SB Chevy LS1/LS6 5.7L/6.8L Hex Head Bolt Kit
- ARP SB Chevy LS6 Hex Head Bolt Kit
Frequently Asked Questions
How do I confirm the SB Chevy GEN III/IV LSX 12pt Head Stud Kit fits my application?
Match the exact engine family or vehicle, component location, thread diameter and pitch, under-head length, material, strength series, and every current ARP application note.
Can I reuse the factory torque value with this ARP hardware?
Not automatically. Use ARP's current instructions for the exact part, material, lubricant, tightening sequence, and preload method. Factory torque values may be based on different hardware and friction.
What is included with this ARP kit?
Only the studs, bolts, nuts, washers, lubricant, and tools expressly listed for this exact part number are included. Verify the required quantity before disassembly.
Installation Instructions
- Confirm ARP part number 234-4319, the complete application, and every required supporting component before beginning work.
- Clean and inspect all mating threads and components, then verify thread engagement, length, washers, nuts, lubricant, and required preparation before assembly.
- Follow ARP's current tightening sequence, lubricant instructions, torque or stretch method, and any retorque procedure for this exact part.
- Verify clearance, preload, fastener seating, and normal component operation before returning the vehicle or engine to service.
