-38%

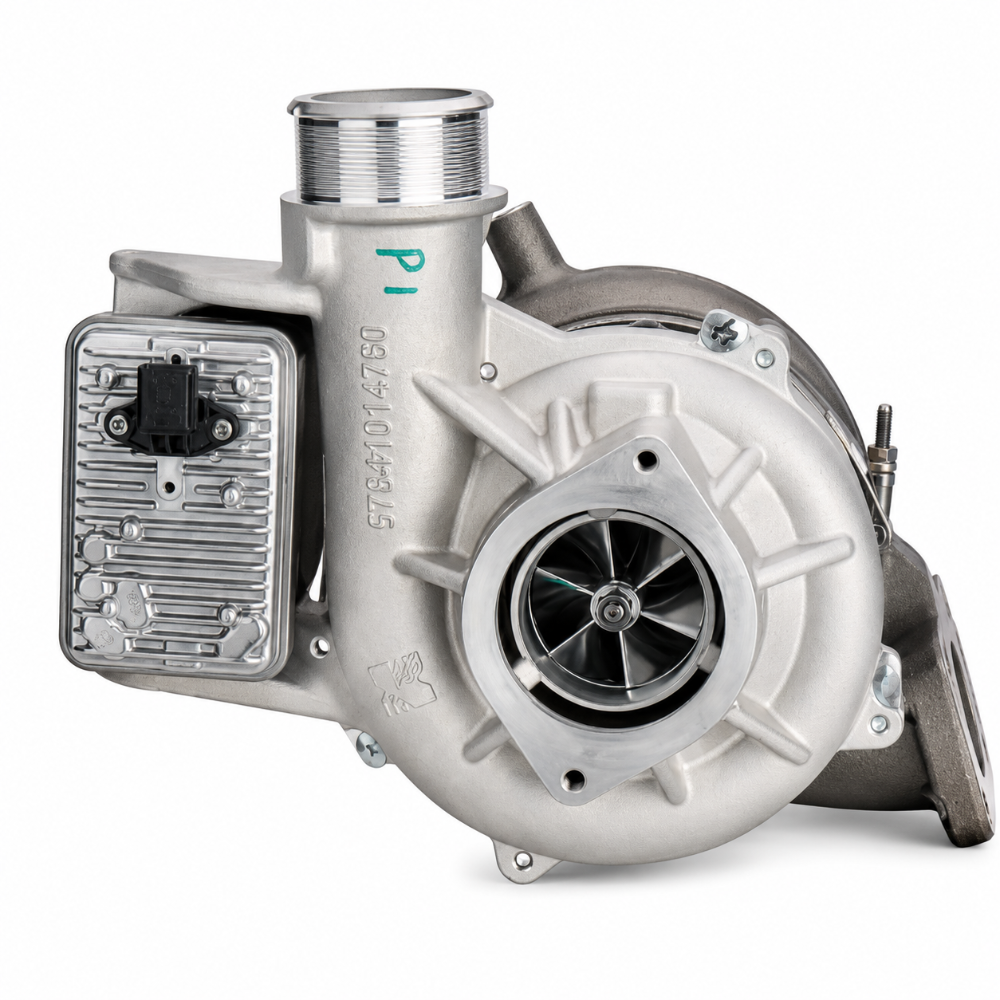

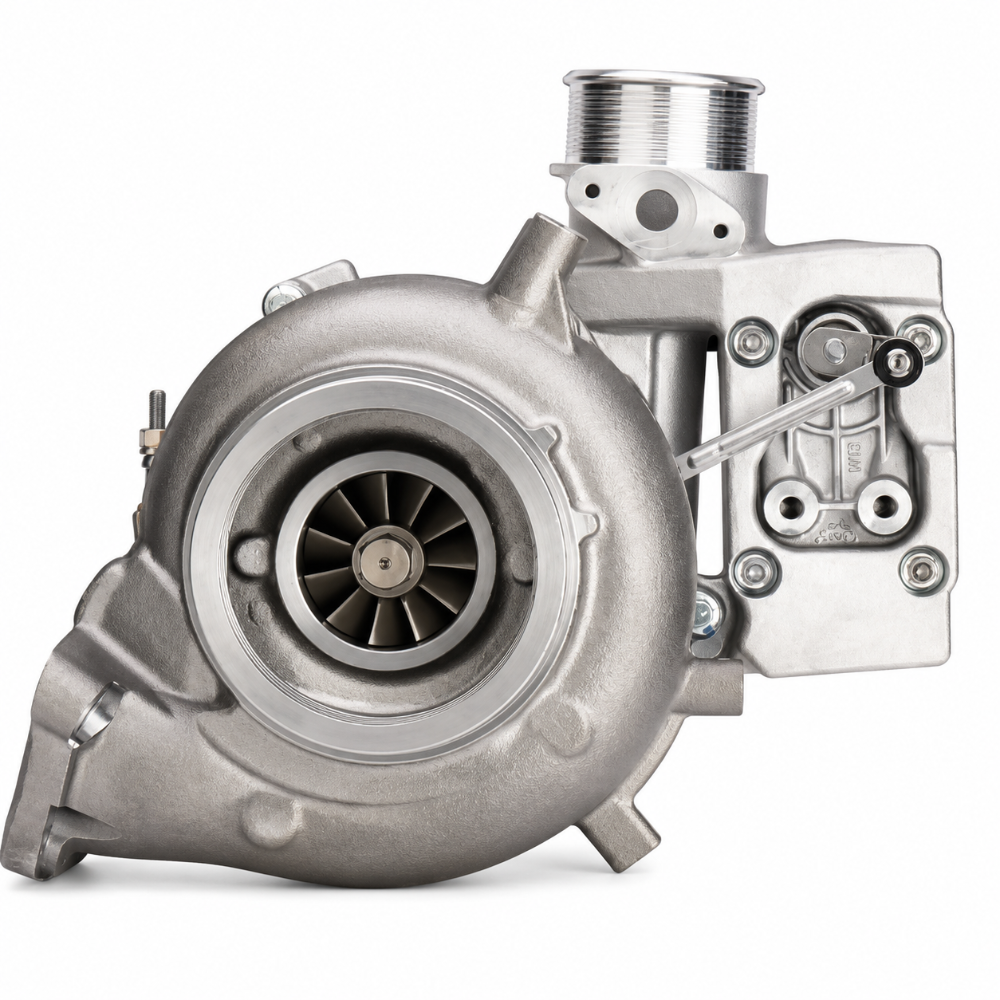

BorgWarner 12709882081 84mm B2BV SX-R turbocharger for 2017-2019 GM 6.6L Duramax L5P

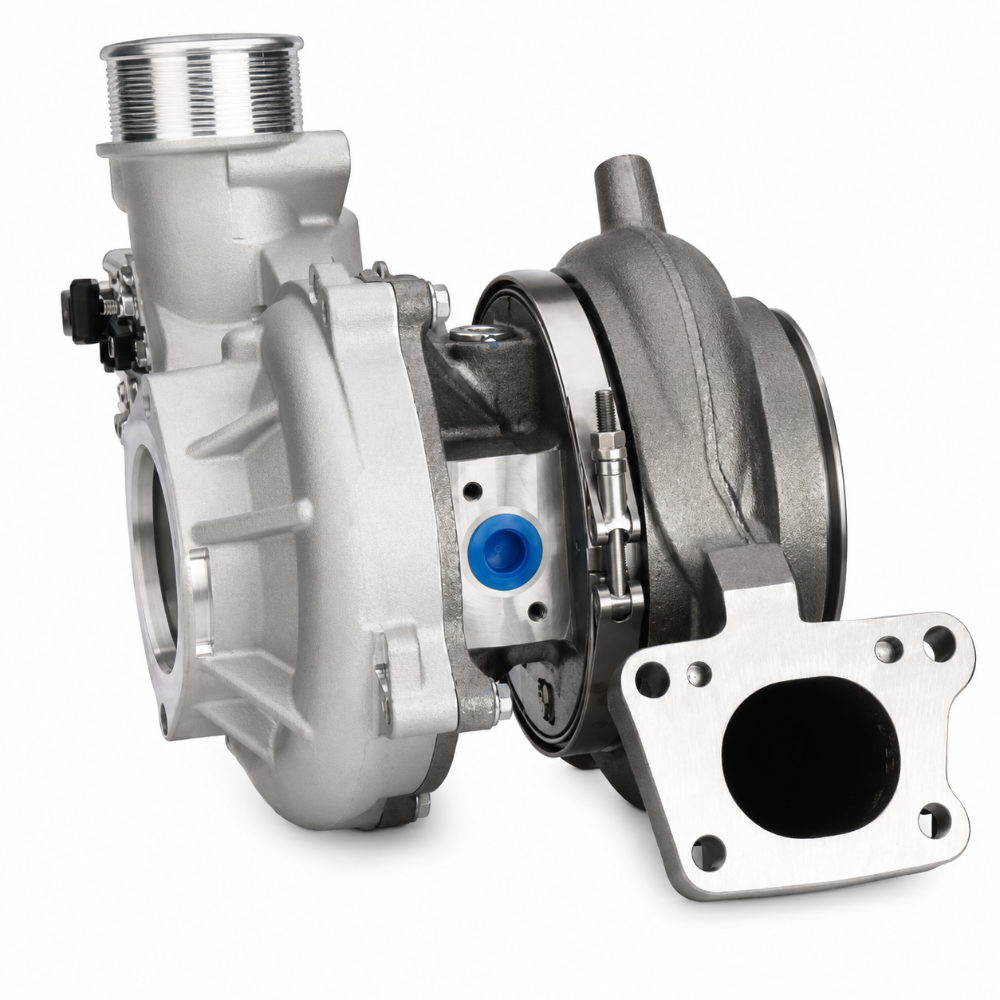

BorgWarner B2BV SX-R ball bearing turbo upgrade for 2017-2019 Chevrolet Silverado GMC Sierra Duramax L5P
BorgWarner 84mm Duramax L5P turbo upgrade with forged compressor wheel and dual ceramic ball bearings
Click to zoom in

BorgWarner 17-19 GM 6.6L Duramax L5P 84mm B2BV SX-R Turbocharger

BorgWarner
BWA12709882081
Turbochargers
3 Units In Stock - Ships Next Business Day
$ 5,019.40 $ 3,075.52
$ 3,075.52

SKU: 12709882081


BorgWarner 17-19 GM 6.6L Duramax L5P 84mm B2BV SX-R Turbocharger

This BorgWarner SX-R turbocharger serves as a direct bolt-on upgrade for 2017-2019 Chevrolet and GMC trucks equipped with the 6.6L Duramax L5P diesel engine. It replaces the factory unit with an 84mm compressor wheel that delivers higher airflow for substantial power and torque increases. The ball bearing design provides faster spool-up and reliable operation under high boost levels up to 50 psi.

Key Features

  • 84mm Forged Milled Compressor Wheel – Handles increased airflow for 600+ HP potential
  • 73mm Compressor Exducer – Efficient compression ratio for quick response
  • 66mm 11-Blade Turbine Wheel – Captures exhaust energy with extended tip technology
  • Dual Ceramic Ball Bearings – Reduces friction supports 200000+ RPM operation
  • .91 A/R T4 Divided Turbine Housing – Matches L5P exhaust manifold for optimal flow
  • 6061 Aluminum Compressor Housing – Includes anti-surge porting to prevent compressor surge

Specifications

Detail Value
Brand BorgWarner
Type S300 SX-R Series Turbocharger
Compatibility 2017-2019 GM 6.6L Duramax L5P
Compressor Wheel 84mm inducer / 73mm exducer
Turbine Wheel 66mm inducer 11 blades
Max Boost 50 psi
Weight 38 lbs
Shipping Dimensions 24 x 20 x 20 inches
Country of Origin United States
Warranty 1 Year Manufacturer

Whats Included

  • BorgWarner 84mm B2BV SX-R Turbocharger Assembly
  • Complete ready-to-install unit

Product Notes

  • Direct drop-in replacement no modifications required
  • Custom tuning required to realize full power gains
  • Not emissions compliant for all states check local laws

This Part Fits

Year Range Make Model Notes
2017-2019 Chevrolet Silverado 2500 HD 6.6L L5P Duramax
2017-2019 Chevrolet Silverado 3500 HD 6.6L L5P Duramax
2017-2019 GMC Sierra 2500 HD 6.6L L5P Duramax
2017-2019 GMC Sierra 3500 HD 6.6L L5P Duramax
2017-2019 Chevrolet 2500 HD Cab Chassis 6.6L L5P Duramax
2017-2019 Chevrolet 3500 HD Cab Chassis 6.6L L5P Duramax
2017-2019 GMC 2500 HD Cab Chassis 6.6L L5P Duramax
2017-2019 GMC 3500 HD Cab Chassis 6.6L L5P Duramax

Why Choose BorgWarner?

  • Original equipment supplier for Duramax engines
  • Precision engineering for durability and performance
  • Ball bearing technology proven in racing applications
  • Direct fit design simplifies installation

Frequently Asked Questions

  • Q: Does this turbo bolt directly onto my L5P Duramax?
  • A: Yes it is a plug-and-play replacement for the stock turbo no fabrication needed.
  • Q: Will I need engine tuning after installation?
  • A: Yes professional tuning is required to adjust fuel and timing for safe power gains.
  • Q: What power levels can this turbo support?
  • A: Capable of 600-800 HP with supporting mods and proper tuning up to 50 psi boost.

Shipping & Handling

  • Method: UPS Ground / FedEx Ground
  • Availability: In stock – ships same or next business day
  • Packaging: Securely boxed with foam protection 38 lbs 24x20x20 inches
