-20%
BorgWarner SuperCore S200 SX-R 58mm 7670 BorgWarner BWA12707105086
BorgWarner SuperCore S200 SX-R 58mm 7670 BorgWarner BWA12707105086
Click to zoom in

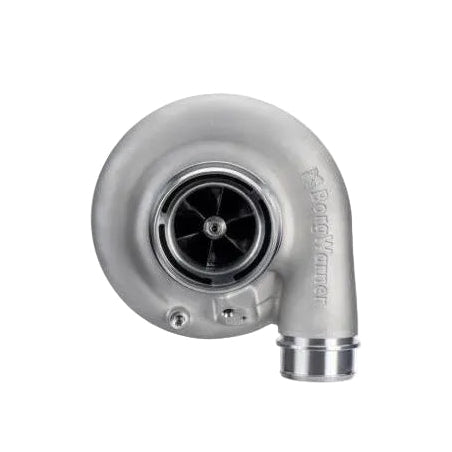

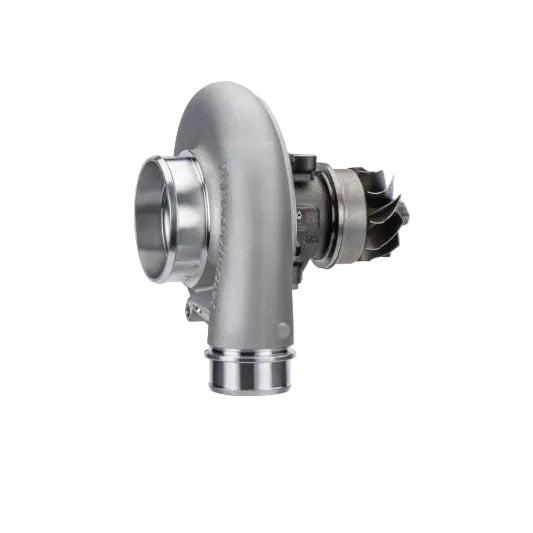

BorgWarner SuperCore S200 SX-R 58mm 7670

BorgWarner
BWA12707105086
Super Core Assemblies
10 Units In Stock - Ships Next Business Day
$ 1,258.83 $ 1,007.06
$ 1,007.06

SKU: 12707105086

BorgWarner SuperCore S200 SX-R 58mm 7670 Turbo Center Assembly for 1993-2014 Toyota Supra Chevrolet Corvette CTS-V Ford Mustang Subaru WRX

The BorgWarner SuperCore S200 SX-R 58mm 7670 delivers the full center housing rotating assembly CHRA for assembling powerful S200 SX-R turbochargers. Build custom setups for inline-four V6 V8 engines like 1993-1998 Toyota Supra 2JZ-GTE 1997-2004 Chevrolet Corvette C5 LS1 2004-2013 CTS-V LS2/LS6 2011+ Ford Mustang Coyote 5.0 2002-2014 Subaru WRX STI EJ257 and universal 800-1400HP applications. Expect fast spool-up broad powerband and reliable operation across drag street and track conditions supporting 1000-1400HP.

Key Features

  • Dual Ball Bearing Cartridge: Handles shaft speeds over 200000 RPM with low friction for rapid spool and extended durability in extreme heat
  • 58mm Gamma-Ti Compressor Wheel: Billet design with extended tips delivers high efficiency and surge resistance across 800-1400HP range
  • 76/70mm Inconel Turbine Wheel: High-temperature alloy captures exhaust energy for instant boost response through full RPM range
  • Compact Aluminum Center Housing: Oil and water-cooled construction works with various A/R housings for precise engine tuning
  • Factory Balanced and Tested: Pressure-tested assembly provides smooth vibration-free performance from installation

Product Notes

  • Super Core only housings sold separately to fit manifold and downpipe configurations
  • Requires clean 40-90 PSI oil pressure with proper feed and drain lines
  • Securely packaged to prevent damage during transit

Installation Notes

  • Professional installation recommended.
  • Use AN-4 oil feed line with restrictor and AN-10 drain minimum
  • Matches T3 0.82/0.91 A/R T4 0.96 A/R or V-band 1.00/1.06 turbine housings

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE Turbo
1997-2004 Chevrolet Corvette C5 LS1
2004-2013 Chevrolet CTS-V LS2/LS6
1999-2007 Chevrolet Silverado 1500 LS1/LS6 Truck
2011+ Ford Mustang Coyote 5.0
2002-2014 Subaru WRX STI EJ257
Universal Custom Builds 800-1400 HP Engines

Why Choose BorgWarner?

  • Original equipment to Formula Drift and NHRA teams worldwide
  • Advanced materials tested in extreme racing environments
  • Precision manufacturing for consistent boost response and durability

Frequently Asked Questions

  • Q: Does this fit specific vehicles or is it universal?
    A: Universal super core for custom turbo builds using S200 SX-R housings. Popular on Toyota 2JZ Chevy LS Ford Coyote and Subaru EJ engines with adapter manifolds
  • Q: What materials are used in the wheels?
    A: Compressor wheel is Gamma-Ti billet aluminum for lightweight strength. Turbine wheel is Inconel for 1050-degree C heat tolerance
  • Q: What warranty applies?
    A: 12-month unlimited mileage warranty from BorgWarner when installed with correct oiling and no abuse

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-inserted box measuring 14 x 14 x 14 inches
  • Weight: 16 lbs
